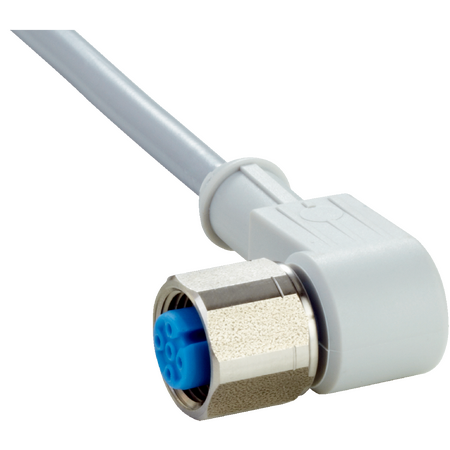

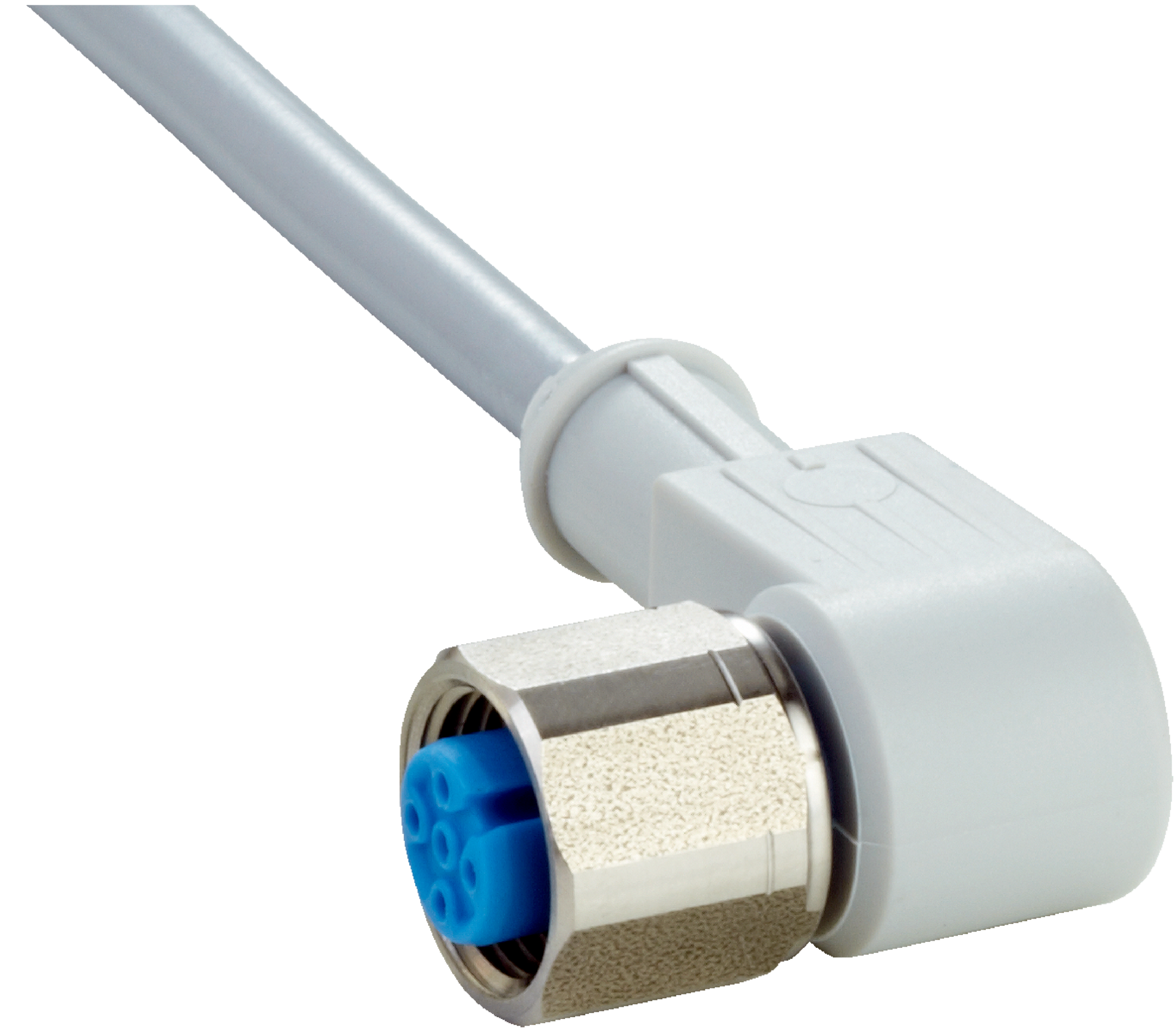

M12 Sensor Cable | 4-Pin Angled Connector | 10m PVC Jacket | IP65/IP67/IP69K Rated | by SICK
The M12 Sensor Cable features a 4-pin angled female connector and flying leads, making it perfect for industrial automation and sensor connection applications. With a durable 10m PVC jacket and IP65/IP67/IP69K enclosure rating, this cable is designed for use in hygienic and washdown zones, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable with M12 Connector, 4-Pin M12 Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable: 10 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Dimensions (H x L x W): 20mm x 10000mm x 14mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 4-pin, angled
- Flying leads connection
- Cable length: 10 m, 4-wire, PVC jacket
- Connector material: PUR with stainless steel locking nut
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Chemical resistant to ECOLAB cleaning agents except lactic acid and hydrogen peroxide
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Hygienic and washdown zones
- Zones with chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Chemical resistance minimizes environmental contamination risk
- Long cable length reduces need for additional connectors and wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204-W10MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
