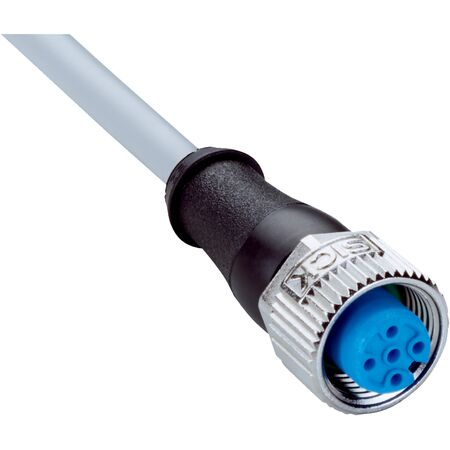

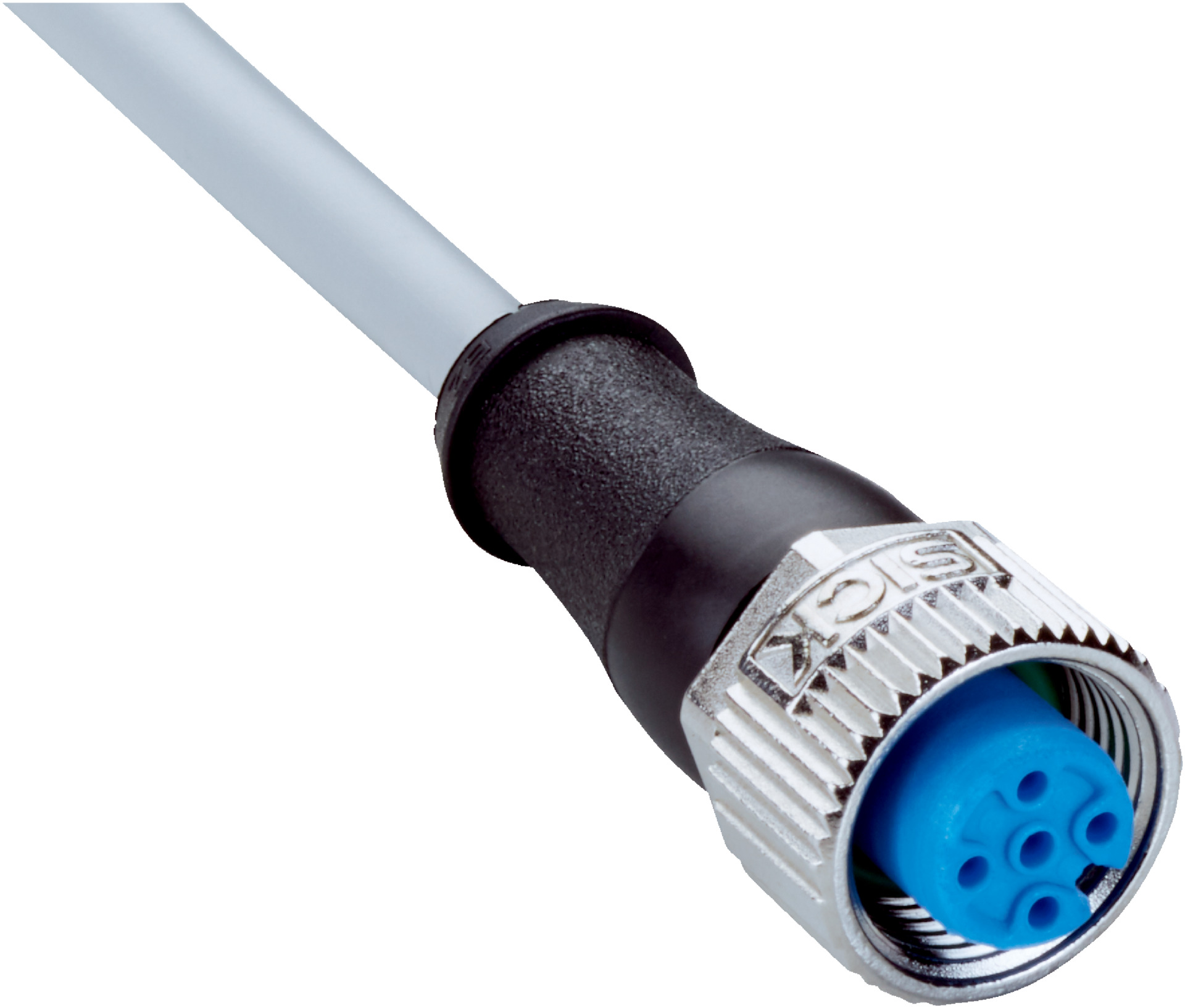

M12 Sensor Cable | 4-Pin Female Connector | 10m PVC | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features a 4-pin female connector and a durable 10m PVC cable, making it ideal for industrial automation in chemical and uncontaminated zones. With an IP65/IP66/IP67 enclosure rating and a rated impulse voltage of 2.5 kV, this cable ensures reliable performance and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.34 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67
- Rated impulse voltage 2.5 kV
- Current loading 4 A
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste.
- Flame retardant properties enhance safety and reduce fire risk.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-100VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor applications in chemical and uncontaminated zones.
