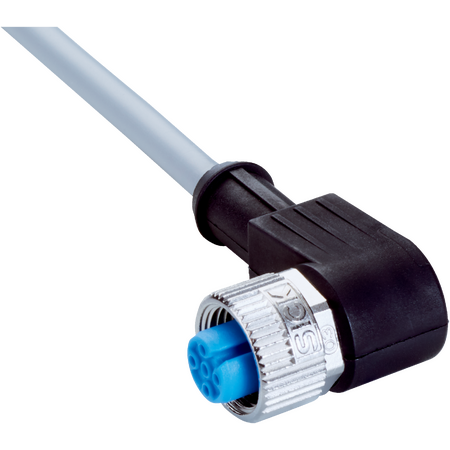

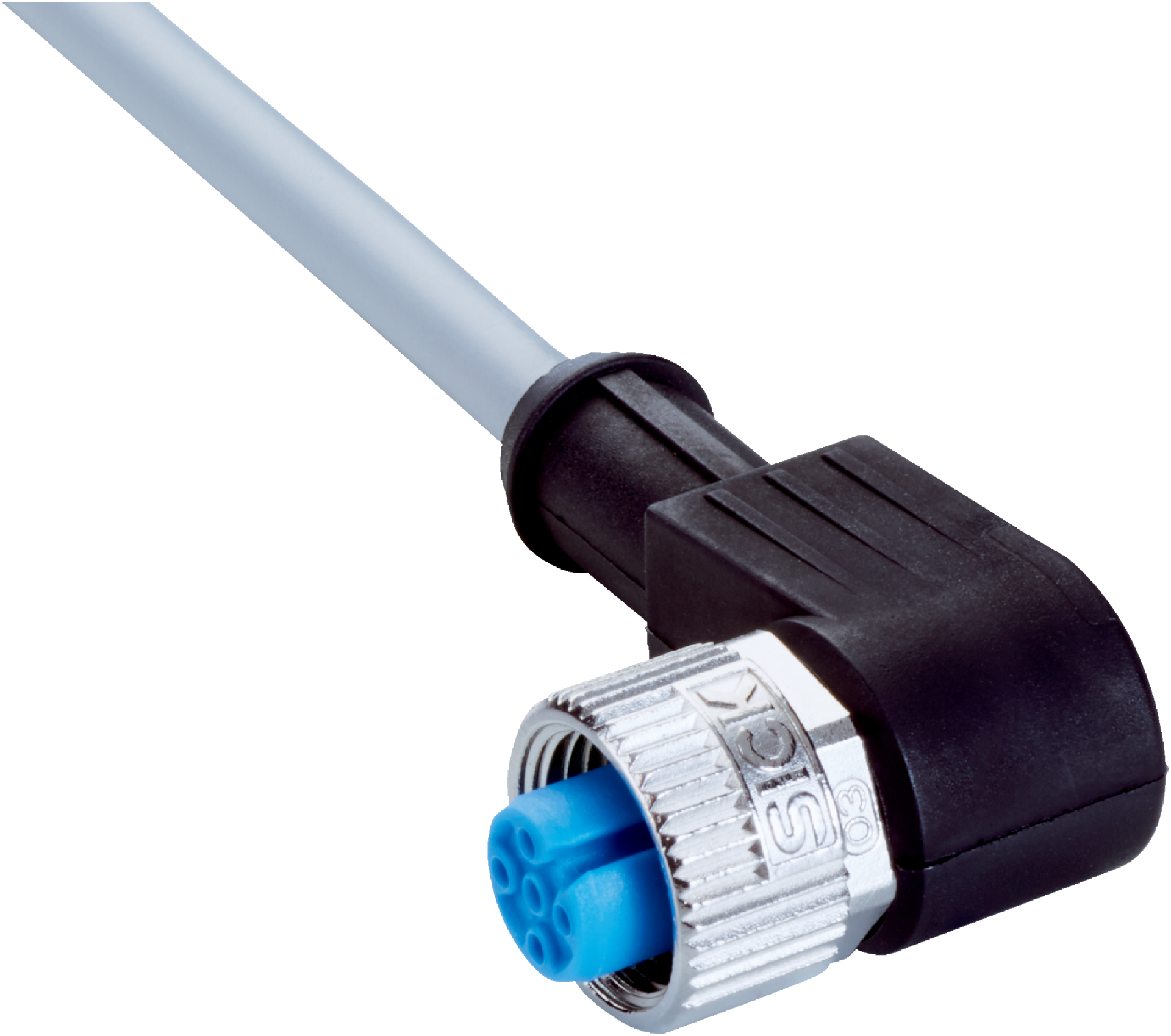

M12 Sensor Cable | 4-Pin Female Connector | 10m PVC Jacket | IP65 Rated | by SICK
The M12 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 4-pin female connector and a durable 10m PVC jacket. With an IP65 rating, it’s perfect for use in industrial environments, ensuring robust protection against dust and water. Ideal for applications in uncontaminated zones and areas with chemical exposure, this cable guarantees optimal performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PVC 4x0.34, SICK Sensor Cable, M12 4-pin Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable jacket made of gray PVC, 10 meters long, 4-wire
- Unshielded cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Operating temperature range from -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire hazards
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A14-100VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator wiring applications.
