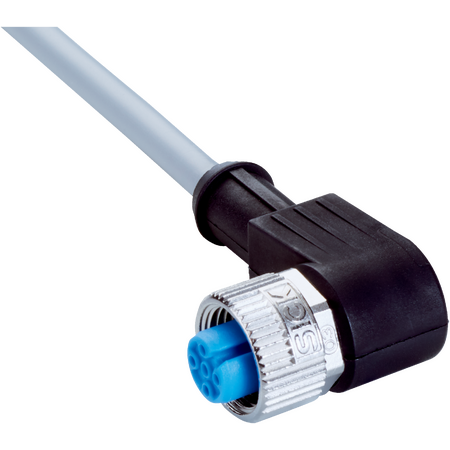

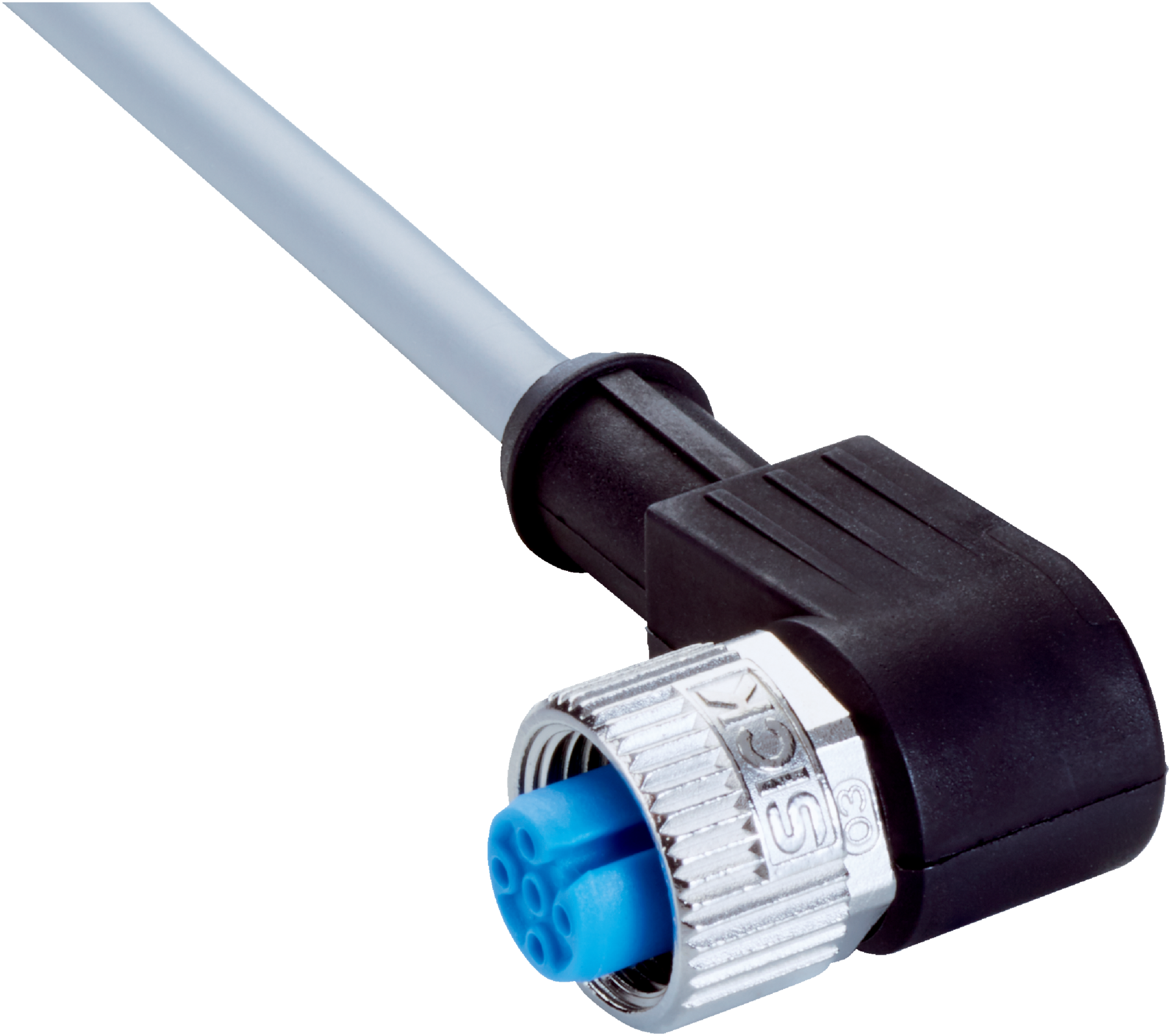

M12 Sensor Cable | 4-Pin Female Connector | 10m Shielded PVC | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring a 4-pin female connector and a durable 10m shielded PVC cable. With an IP65/IP66K/IP67 rating, it's perfect for harsh environments, ensuring reliable connections for sensors and actuators. Built to withstand temperatures from -30°C to +85°C, this cable is ideal for applications in uncontaminated zones and chemical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable with M12 Connector, Industrial Sensor Cable, Shielded Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, shielded, PVC jacket
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Shielded 4-wire PVC cable, 10 m length
- High durability with TPU connector and zinc die-cast locking nut
- Flame retardant cable jacket according to UL 1581 VW1 / CSA FT1
- Wide operating temperature range: -30°C to +85°C
- High insulation resistance of 100 MΩ
- Overvoltage category III and rated impulse voltage of 1.5 kV
- Enclosure rating IP65 / IP66K / IP67 for harsh environments
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Use in uncontaminated zones and zones with chemicals
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant cable enhances safety and reduces fire risk in industrial settings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A24-100VB4XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
