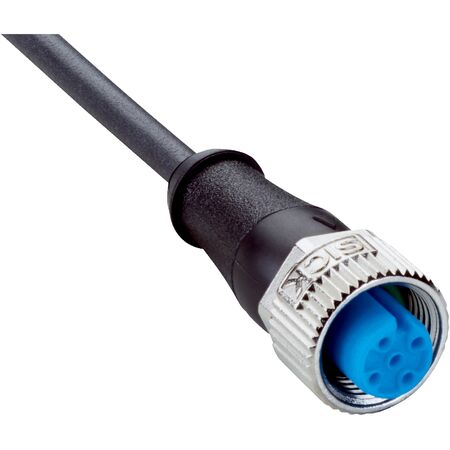

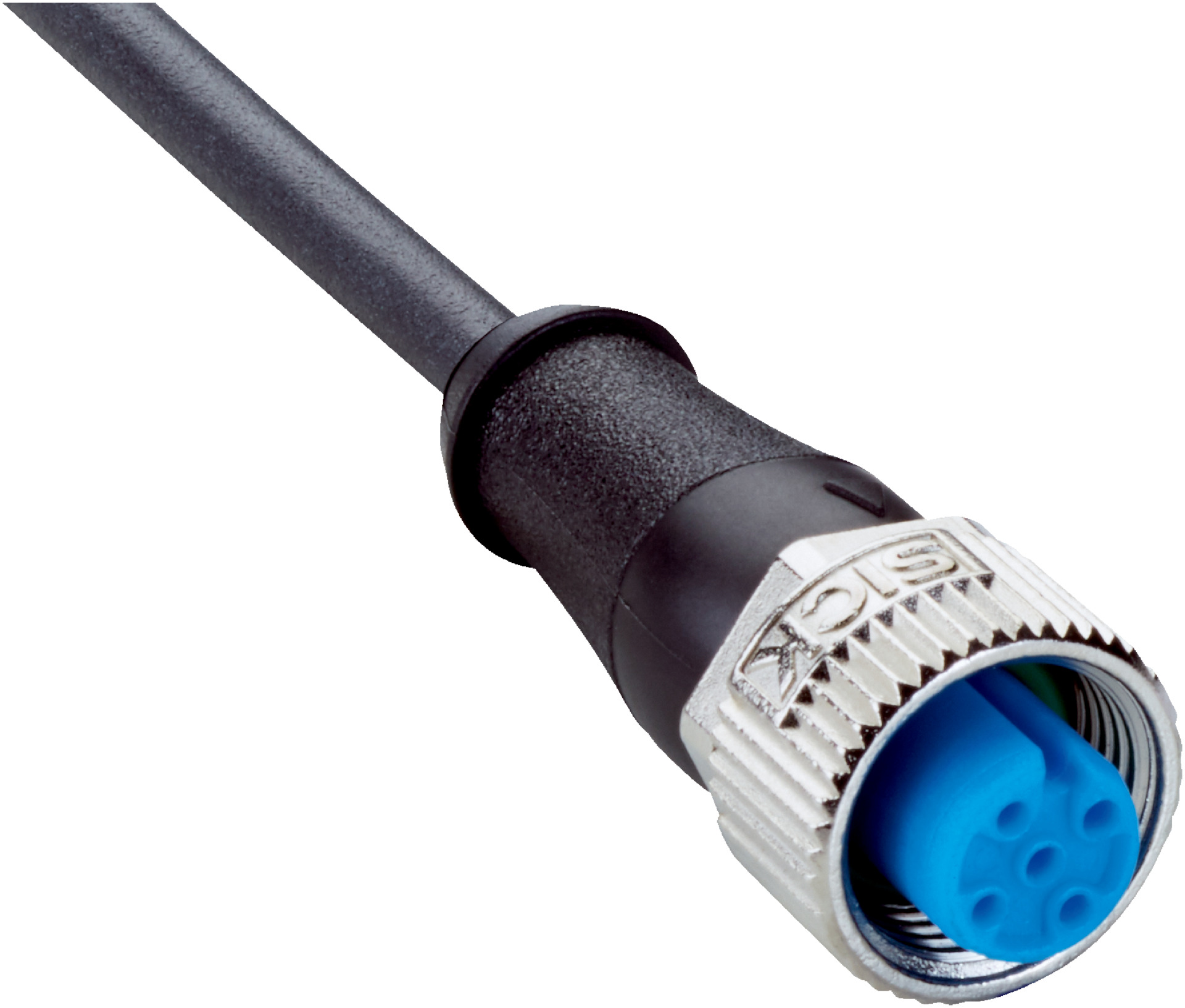

M12 Sensor Cable | 4-Pin Female Connector | 15m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 4-pin female connector and 15m of halogen-free PUR cable, making it ideal for industrial automation and robotics. With an IP65/IP66K/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C, this cable is built for durability and flexibility in various applications, including drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 15 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 15 m length, 4-wire PUR halogen-free cable
- Cable diameter 4.5 mm, conductor cross section 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Rated for 4 A current loading and 300 V AC nominal voltage
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-150UB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
