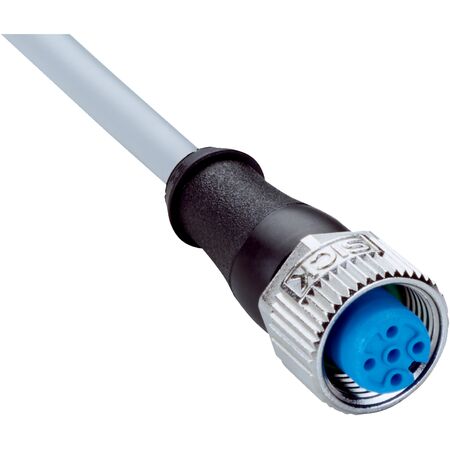

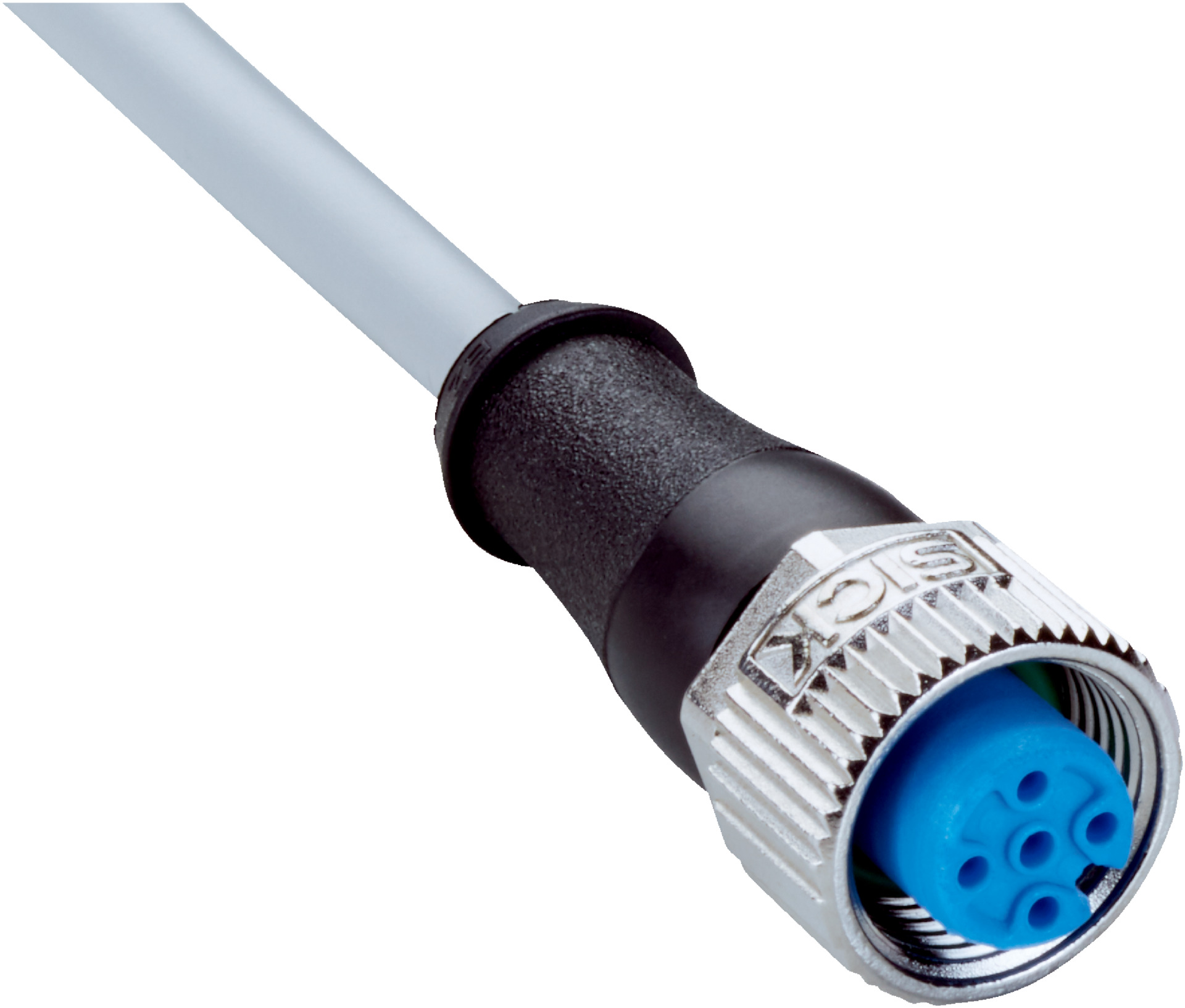

M12 Sensor Cable | 4-Pin Female Connector | 20m PVC Jacket | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for reliable industrial automation with a 4-pin female connector and a robust 20m PVC jacket. Ideal for sensor and actuator connections in chemical zones and uncontaminated environments, this cable features an IP65/IP66K/IP67 enclosure rating for high protection and flame retardant properties for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 20 m, 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable length 20 m, 4-wire PVC jacket, gray color
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67 for high protection
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Nominal voltage 300 V AC, test voltage 2000 V AC, rated impulse voltage 2.5 kV
- Current loading 4 A, insulation resistance 100 MΩ
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation sensor and actuator connections
- Chemical zone applications
- Uncontaminated zones requiring robust cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-200VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
