M12 Sensor Cable | 4-Pin Female Connector | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for robust industrial applications, featuring a 4-pin female connector and a 5m PUR halogen-free cable. Ideal for use in uncontaminated zones and robot applications, this cable ensures high durability with up to 10,000,000 bending cycles and an IP65/IP66K/IP67 enclosure rating, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

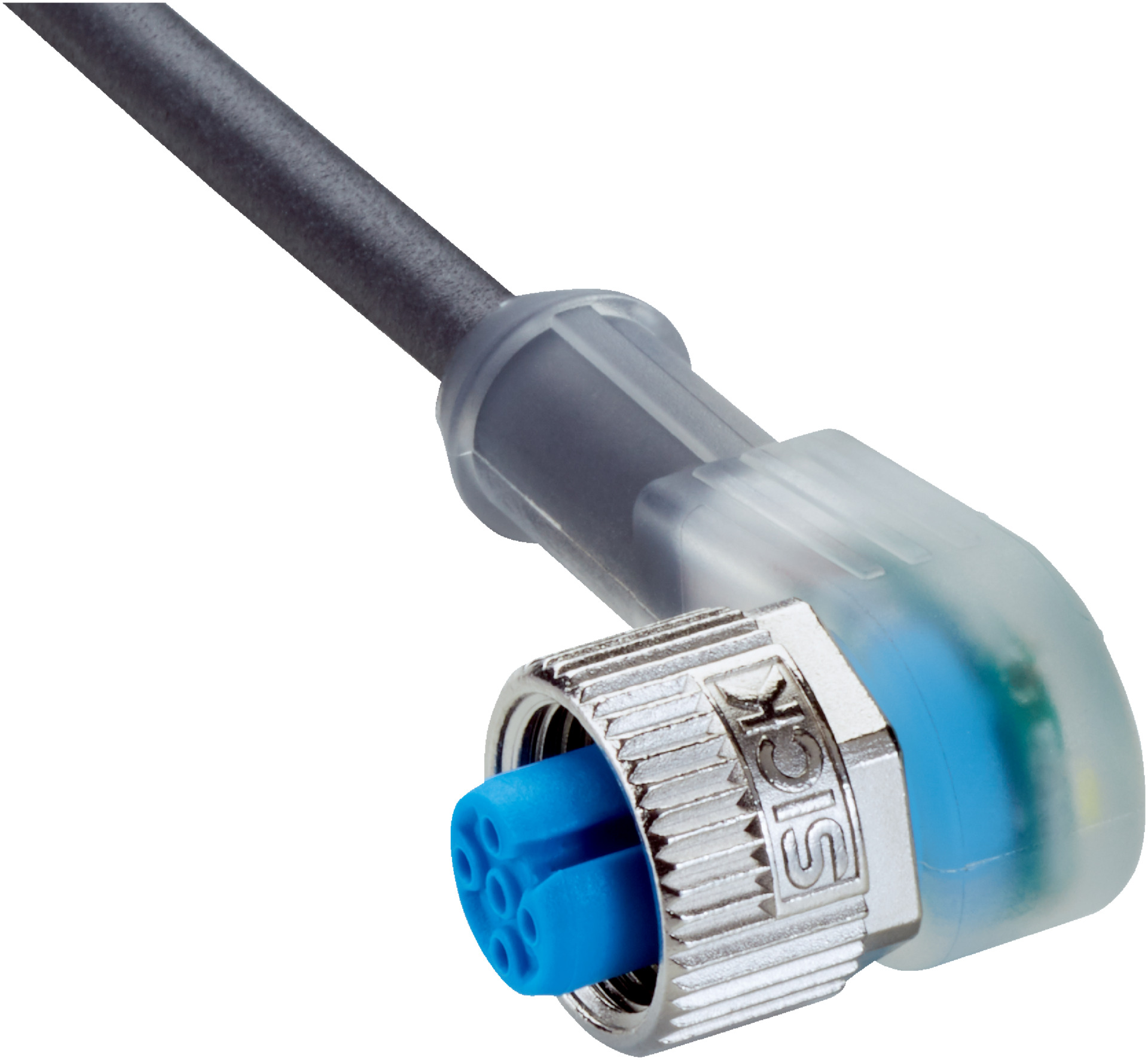

- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Transparent TPU connector material with zinc die-cast nickel-plated locking nut
- 5 m PUR halogen-free cable, black jacket
- Bending radius suitable for flexible use, stationary position, and drag chain operation
- LED function indicator
- High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
- IP65 / IP66K / IP67 enclosure rating
- Operating temperature range from -40 °C to +85 °C depending on use
- Suitable only for PNP sensors
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces environmental impact during disposal
- Durable design extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

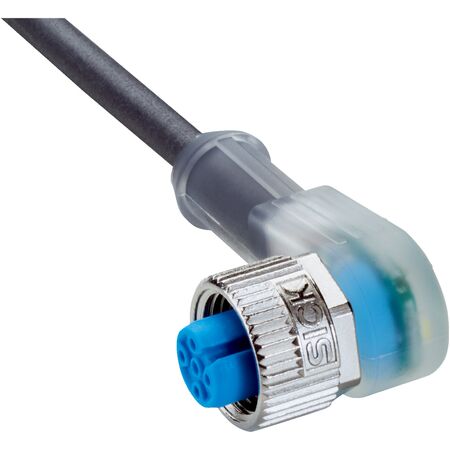

The SICK YI2A14-050UB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
