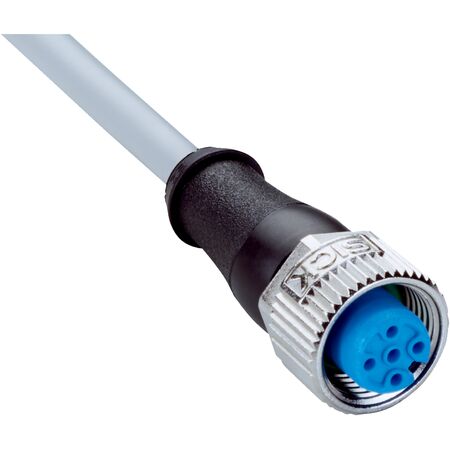

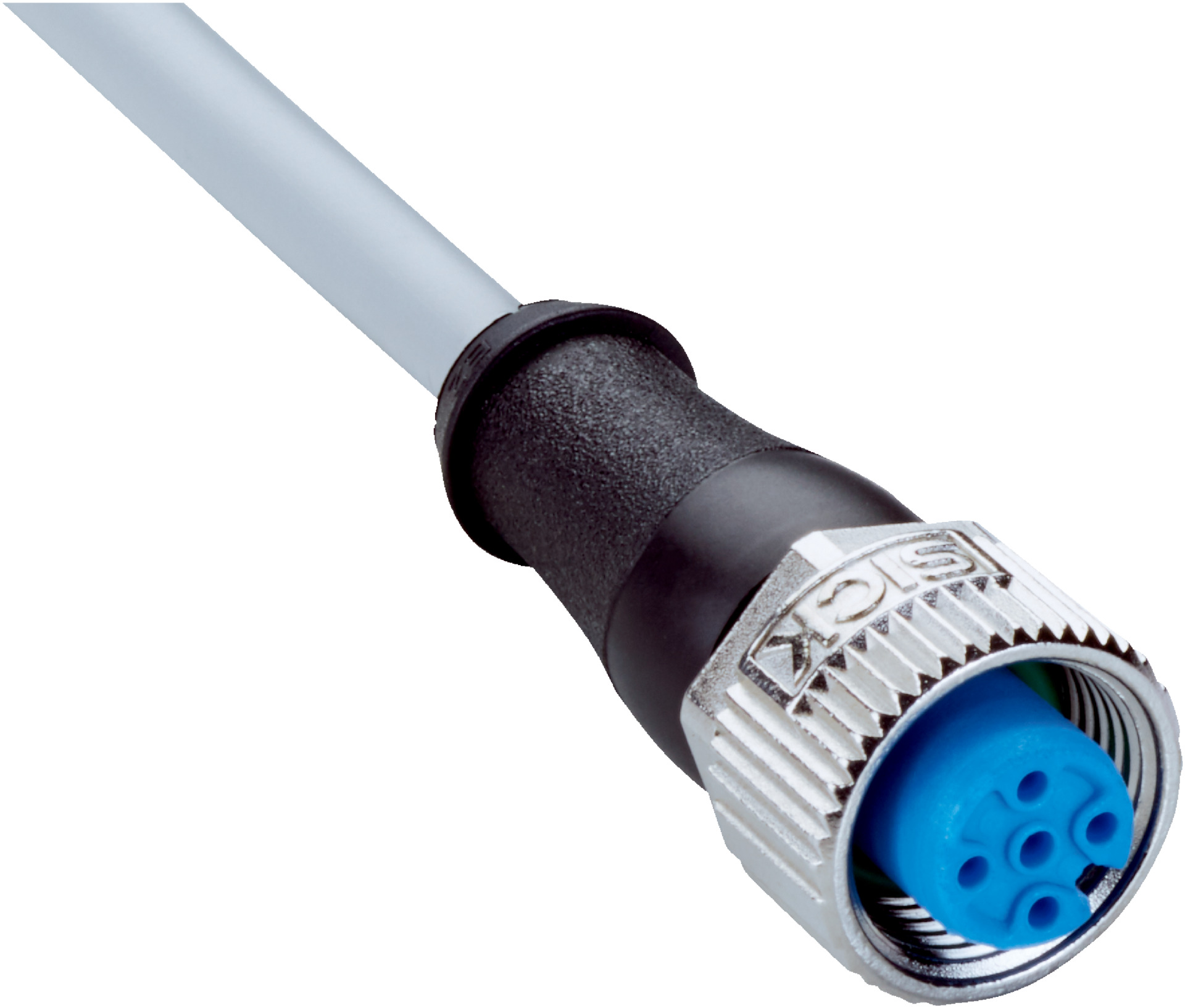

M12 Sensor Cable | 4-Pin Female Connector | 5m PVC Cable | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 4-pin female connector and a durable 5m PVC cable, making it ideal for industrial automation and sensor connection applications. With an IP65/IP66K/IP67 rating, this cable is designed for use in chemical zones and ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Width across flats: 13 mm
- Cable length: 5 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 5 m, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.34 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC, Test voltage: 2,000 V AC
- Current loading ≤ 4 A
- Rated impulse voltage: 2.5 kV
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Flame retardant properties enhance safety and reduce fire risk.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-050VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
