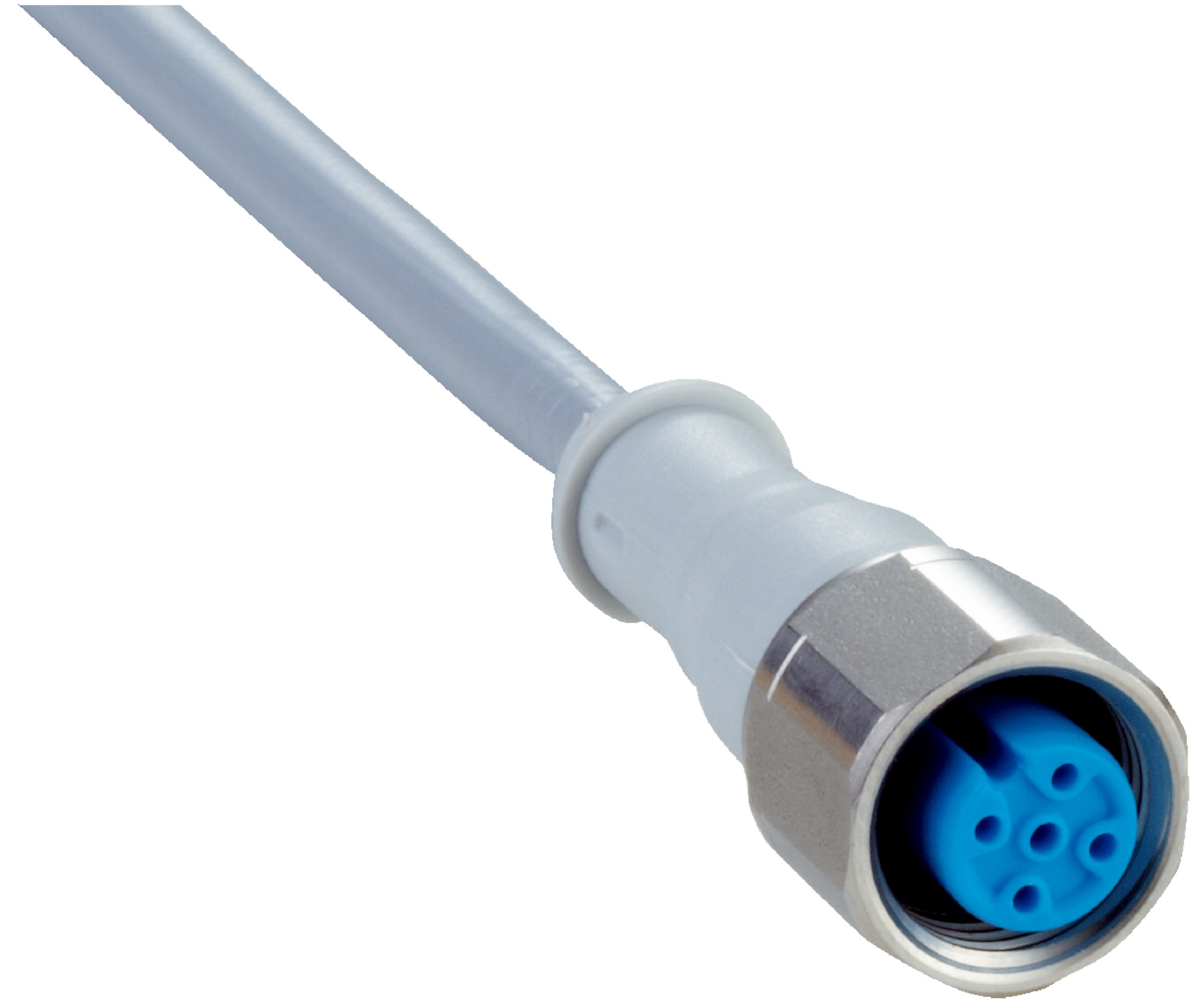

M12 Sensor Cable | 4-Pin Female Connector | 5m PVC Cable | IP65/IP67/IP69K Rated | by SICK
The M12 Sensor Cable is designed for reliable connections in hygienic and washdown industrial environments. Featuring a 4-pin female connector and a durable 5m PVC cable, it ensures optimal performance in automation systems. With an IP65/IP67/IP69K rating, this cable is resistant to water and dust, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Connector color: Gray
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 14mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin straight connector on head A
- Flying leads on head B with 5 m, 4-wire PVC cable
- Connector and jacket material made of durable PUR and PVC respectively
- Locking nut made of stainless steel (V4A/1.4404) for corrosion resistance
- IP65, IP67, and IP69K enclosure rating for high protection
- Operating temperature range from -30°C to +85°C depending on use
- Resistant to chemical cleaning agents compliant with ECOLAB standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones in industrial environments
- Sensor and actuator connections in automation systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Chemical resistance reduces environmental contamination risk from cleaning agents
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204-G05MNI sensor/actuator cable is available for immediate purchase, ideal for use in hygienic and washdown industrial zones requiring reliable sensor connections.
