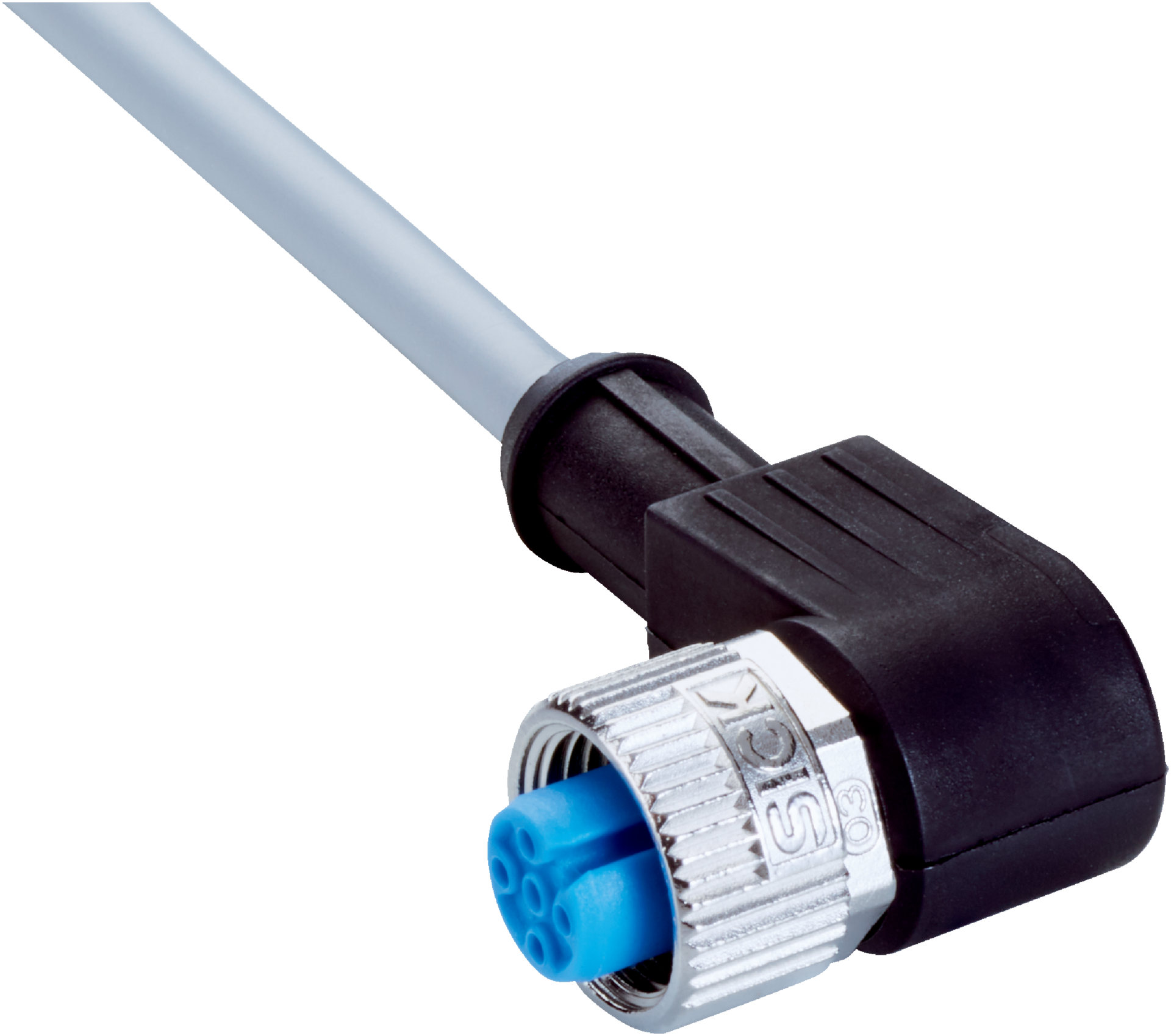

M12 Sensor Cable | 4-Pin Female Connector | 5m PVC Jacket | IP65 Rated | by SICK
The M12 Sensor Cable features a 4-pin female connector and a durable 5-meter PVC jacket, making it ideal for sensor and actuator connections in industrial automation. With an IP65 rating and a temperature range of -30°C to +80°C, this cable is built for reliability in challenging environments, ensuring optimal performance in chemical exposure zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PVC 4-wire, SICK Sensor Cable, M12 4-pin Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Width across flats: 13 mm
- Cable length: 5 m
- Cable wires: 4-wire
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal made of FKM
- Cable length 5 meters, 4-wire PVC jacket in gray
- Cable diameter 5 mm with conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integrity.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and flame retardant materials reduce environmental impact by extending product life and safety.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now

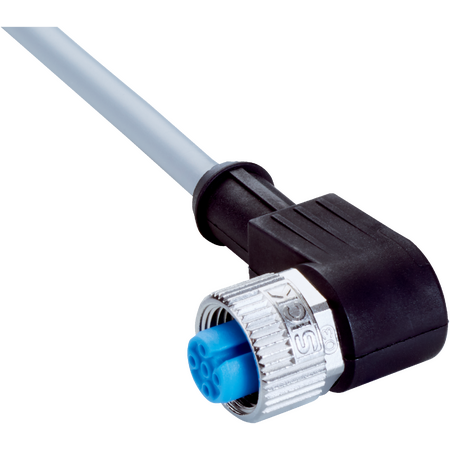

The SICK YG2A14-050VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
