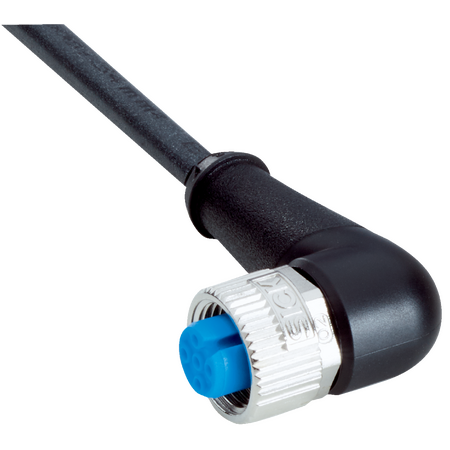

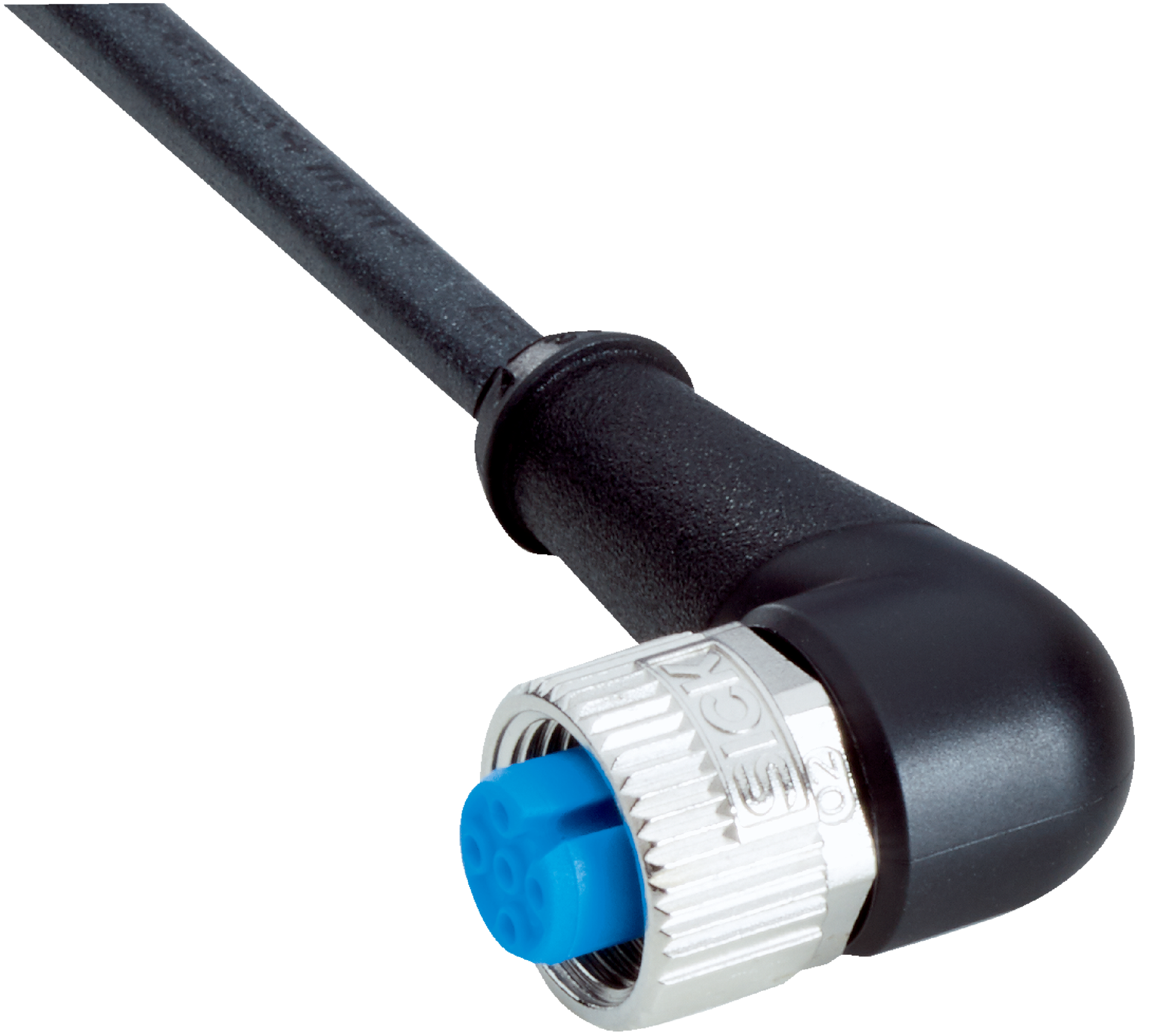

M12 Sensor Cable | 4-Pin Female Connector | 10m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 4-pin female connector and flying leads, making it perfect for industrial automation and robotics applications. With a robust 10m PUR halogen-free cable, it operates effectively in temperatures from -40 °C to +85 °C and is rated IP65/IP66K/IP67 for superior protection against dust and water. Ideal for drag chain operations and environments with oils and lubricants, this cable ensures reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable, PUR Cable, Industrial Sensor Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.15 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m length, 4-wire PUR halogen-free cable
- Cable diameter 4.5 mm, conductor cross section 0.34 mm²
- Unshielded cable
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated for 300 V AC nominal voltage and 2,500 V AC test voltage
- Current loading capacity of 4 A
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A14-100UB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
