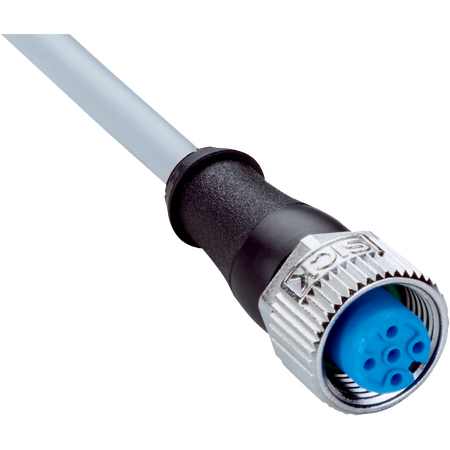

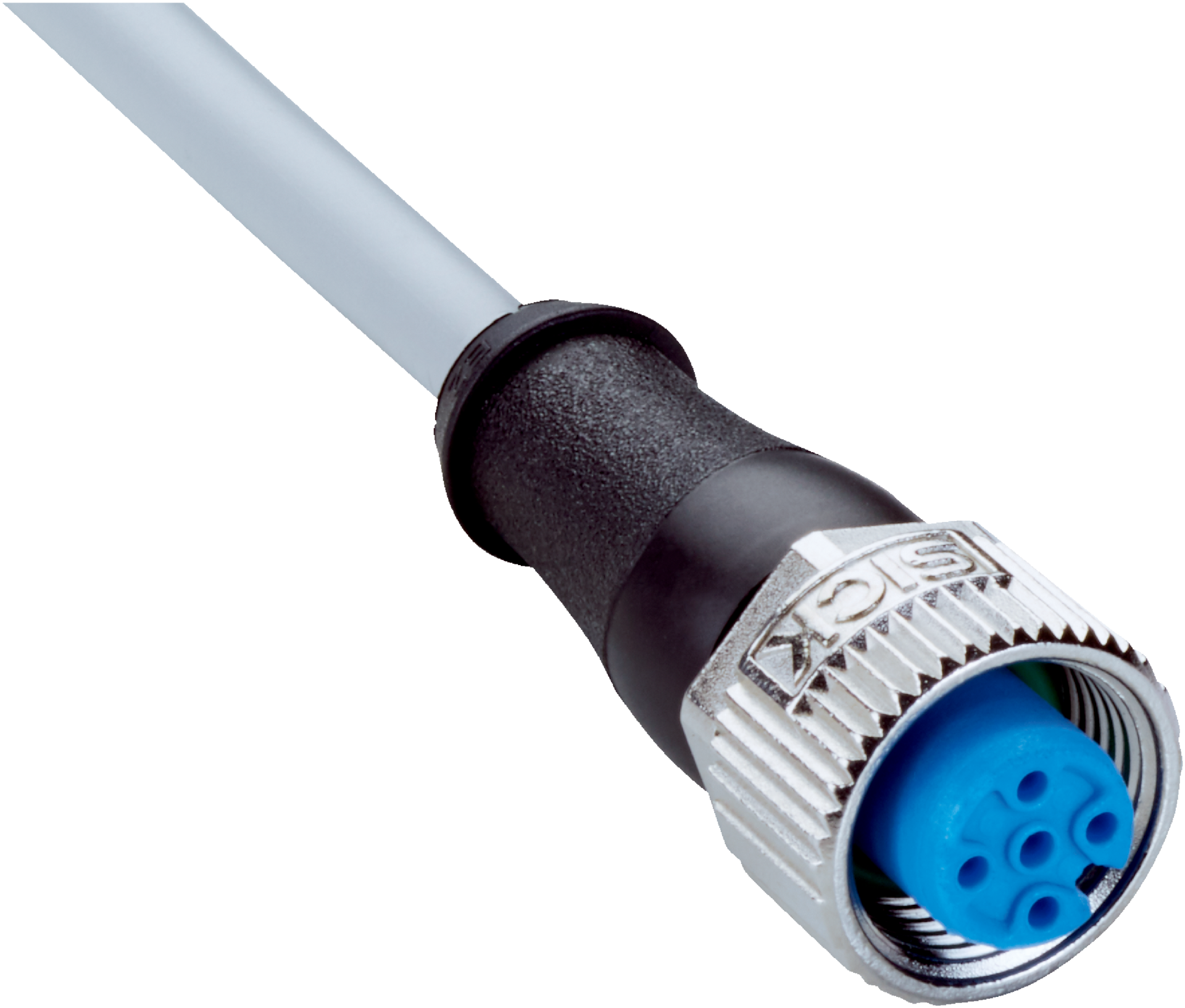

M12 Sensor Cable | 4-Pin Female Connector | IP65/IP66/IP67 Rated | PVC Jacket | by SICK
The M12 Sensor Cable features a 4-pin female connector and a durable PVC jacket, making it ideal for sensor and actuator connections in uncontaminated and chemical exposure zones. With an IP65/IP66/IP67 enclosure rating and a temperature range of -5°C to +80°C, this cable ensures reliable performance in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PVC 4-wire, SICK Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket in gray color
- Unshielded 4-wire cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Operating temperature range: -5°C to +80°C flexible use, -30°C to +80°C stationary, head -25°C to +85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and flame retardant materials enhance product lifespan reducing waste
- Compliant with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-050VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
