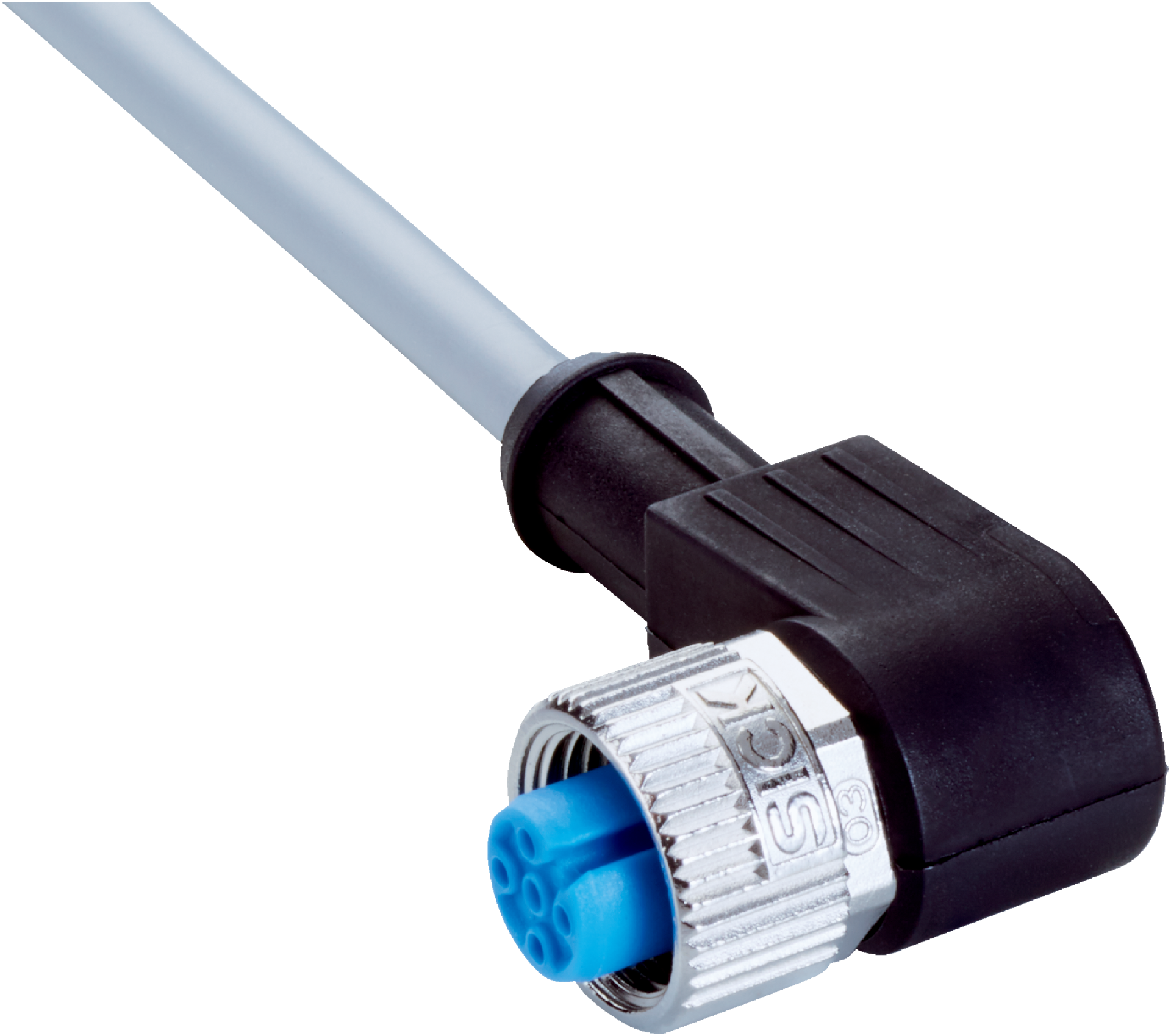

M12 Sensor Cable | 4-Pin Female Connector | IP65/IP66K/IP67 Rated | 2m Length | by SICK
The M12 Sensor Cable features a 4-pin female connector and flying leads, making it perfect for sensor and actuator connections in industrial automation. With a durable TPU construction and an IP65/IP66K/IP67 enclosure rating, this cable is designed for reliable performance in various environments, including those with chemicals. Ideal for professionals seeking high-quality, long-lasting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 4-pin, Industrial Sensor Cable, SICK Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded on head A
- Flying leads on head B with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for enhanced durability
- Cable length 2 m, 4-wire, PVC jacket in gray color
- Unshielded cable with 0.34 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Suitable for use in uncontaminated zones and zones with chemicals
- Ideal for sensor and actuator connections in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Flame retardant and robust design enhances safety and reduces environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

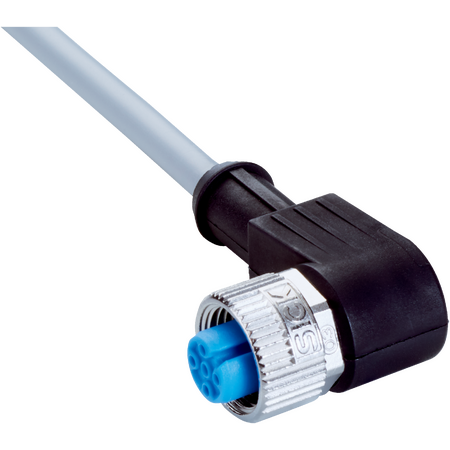

The SICK YG2A14-020VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
