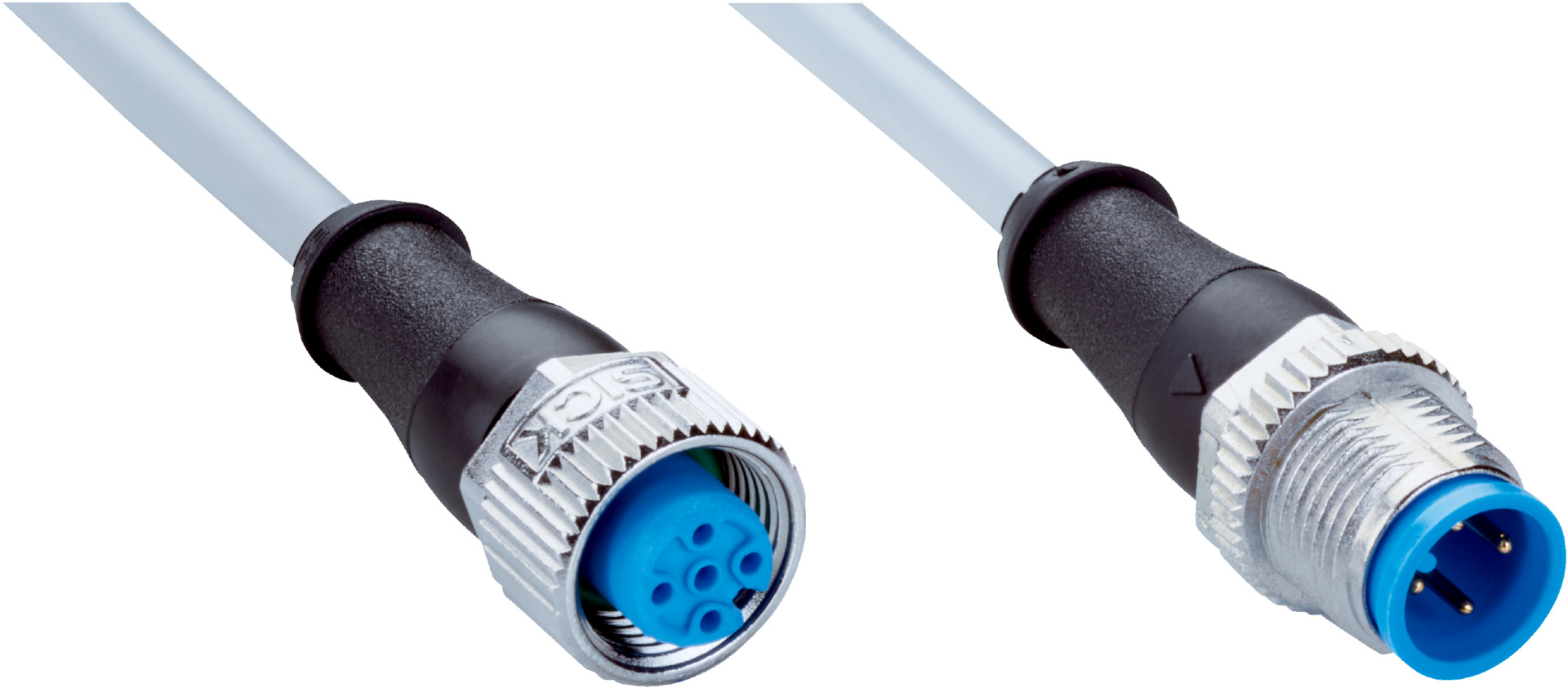

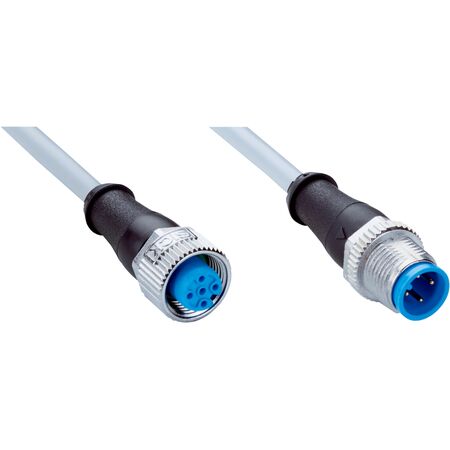

M12 Sensor Cable | 4-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | 2m Length | by SICK
The M12 Sensor Cable YF2A14-020VB3M2A14 features 4-pin female and male connectors, designed for reliable industrial sensor and actuator connections. With a robust IP65/IP66K/IP67 rating and a flexible operating temperature range of -5 °C to +80 °C, this cable is perfect for use in chemical zones and harsh environments, ensuring durability and safety in your automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded on head A
- Male connector, M12, 4-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m, 4-wire, PVC jacket in gray
- Cable diameter: 5 mm with conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2,000 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
- Industrial sensor and actuator connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant properties enhance safety and reduce replacement frequency
- Compliant with China-RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-020VB3M2A14 sensor/actuator cable is available now for immediate purchase. Ideal for industrial automation and sensor connection applications.
