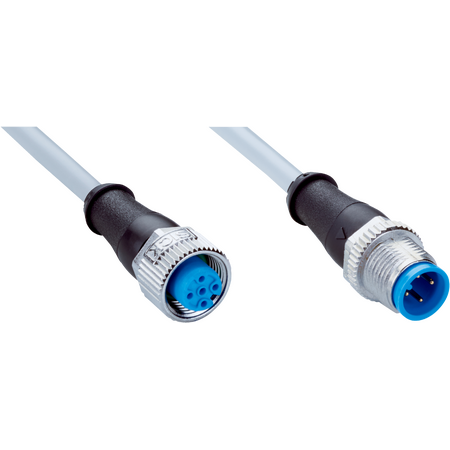

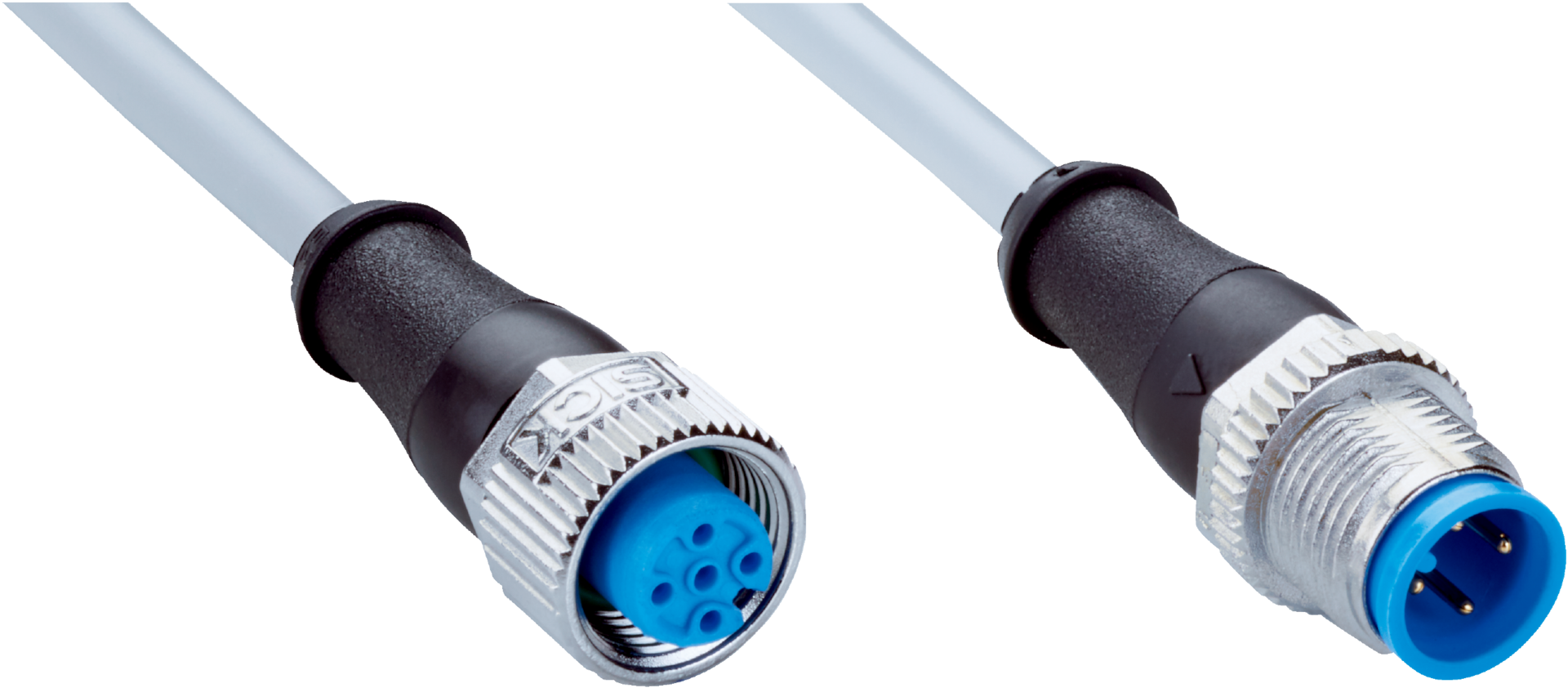

M12 Sensor Cable | 4-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | 2m PVC Jacket | by SICK
The M12 Sensor Cable features 4-pin female and male connectors, designed for reliable sensor and actuator connections in industrial automation. With a durable 2-meter PVC jacket and an IP65/IP66K/IP67 enclosure rating, this cable is perfect for use in uncontaminated zones and areas with chemical exposure, ensuring long-lasting performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 4-pin, Industrial Sensor Cable, PVC Sensor Cable 4-wire
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 4-pin, straight, A-coded connectors
- Screw locking plug connector for secure connection
- Connector material made of TPU with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material ensuring durability
- 2 meter long, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.34 mm² conductor cross section
- Bending radius suitable for flexible and stationary use
- Operating temperature range from -30°C to +85°C depending on use
- Rated for nominal voltage of 300 V AC and test voltage of 2000 V AC
- Current loading capacity of 4 A
- IP65 / IP66K / IP67 enclosure rating for protection
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-020VB3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
