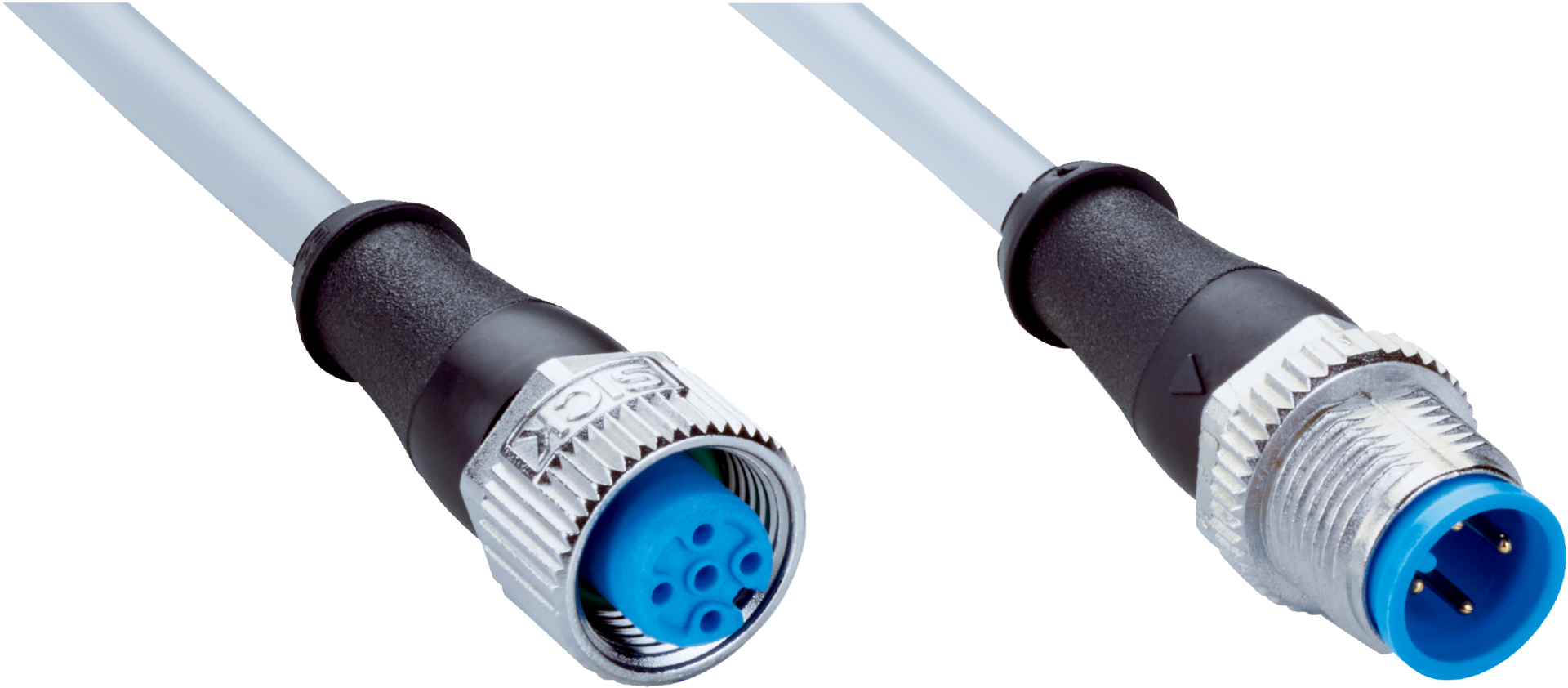

M12 Sensor Cable | 4-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features 4-pin female and male connectors, designed for reliable sensor and actuator connections in industrial automation. With a robust IP65/IP66K/IP67 enclosure rating and a durable TPU construction, this cable ensures optimal performance in various environments, including those with chemical exposure. Ideal for professionals seeking dependable connectivity solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 4-pin, Industrial Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 4-pin, straight, A-coded connectors
- Screw connection locking plug
- Connector material made of TPU with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material for durability
- Cable length of 0.6 m with 4-wire PVC jacket
- Unshielded cable with 0.34 mm² conductor cross section
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Operating temperature range from -30 °C to +85 °C depending on use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor cabling standards to ensure proper connection and safety compliance.
Applications
- Suitable for sensor and actuator connections in uncontaminated zones
- Applicable in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

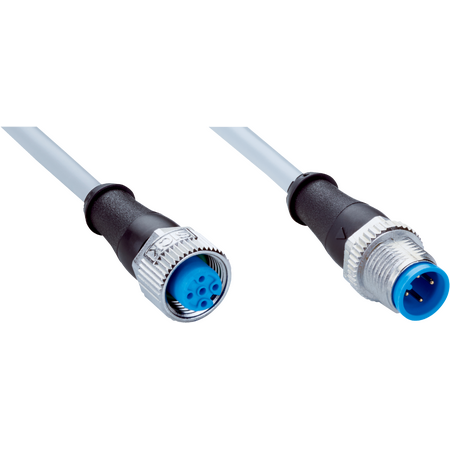

The SICK YF2A14-C60VB3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
