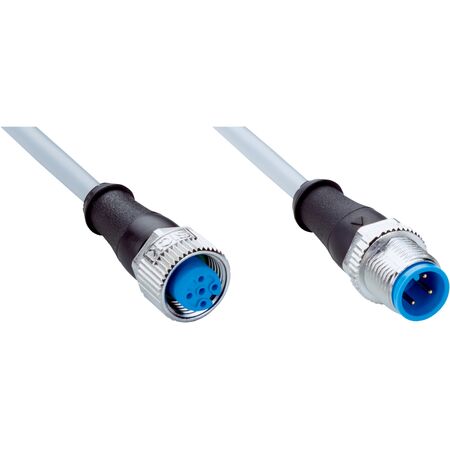

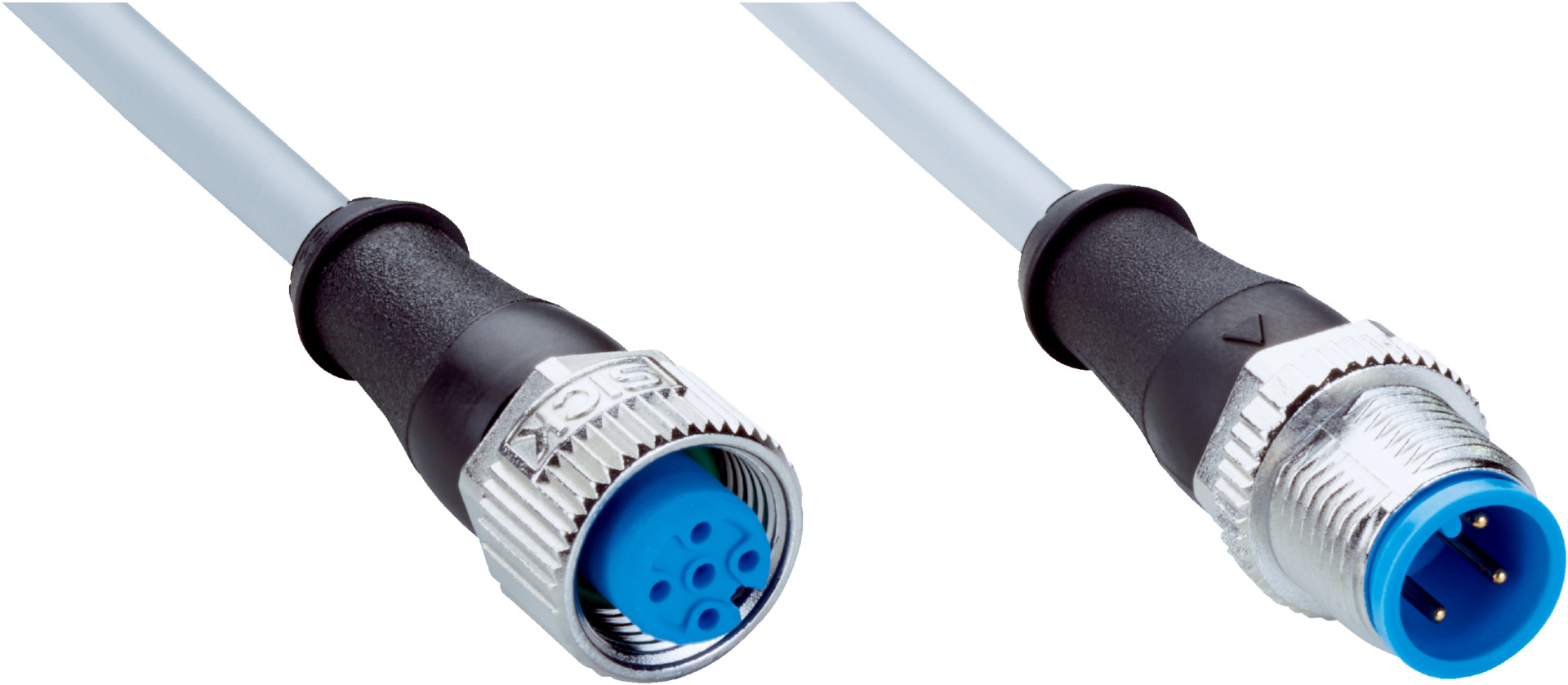

M12 Sensor Cable | 4-Pin Male & Female Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 4-pin male connector on one end and a female connector on the other, designed for reliable connections in industrial automation and robotics. With a durable TPU construction and IP65/IP66K/IP67 rating, this cable is perfect for use in uncontaminated zones and environments with oils and lubricants, ensuring optimal performance in drag chain applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type head B: Female connector, M12, 4-pin, straight
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 0.5 m
- Cable material: PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded on head A
- Female connector, M12, 4-pin, straight on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- 0.5 m PUR halogen-free cable, gray jacket
- Cable diameter 4.5 mm, conductor cross section 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated voltage 300 V AC, test voltage 2,500 V AC
- Current loading 4 A
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- CE and UL certified
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper and safe operation.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-C50UJ2M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
