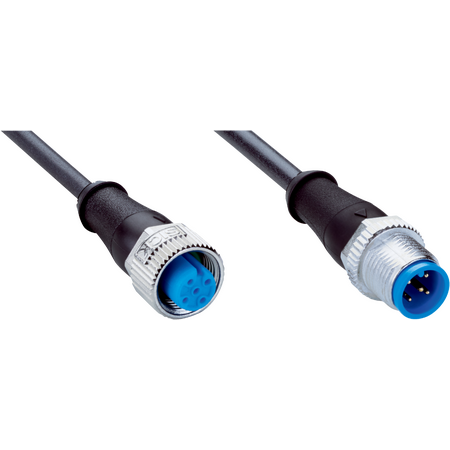

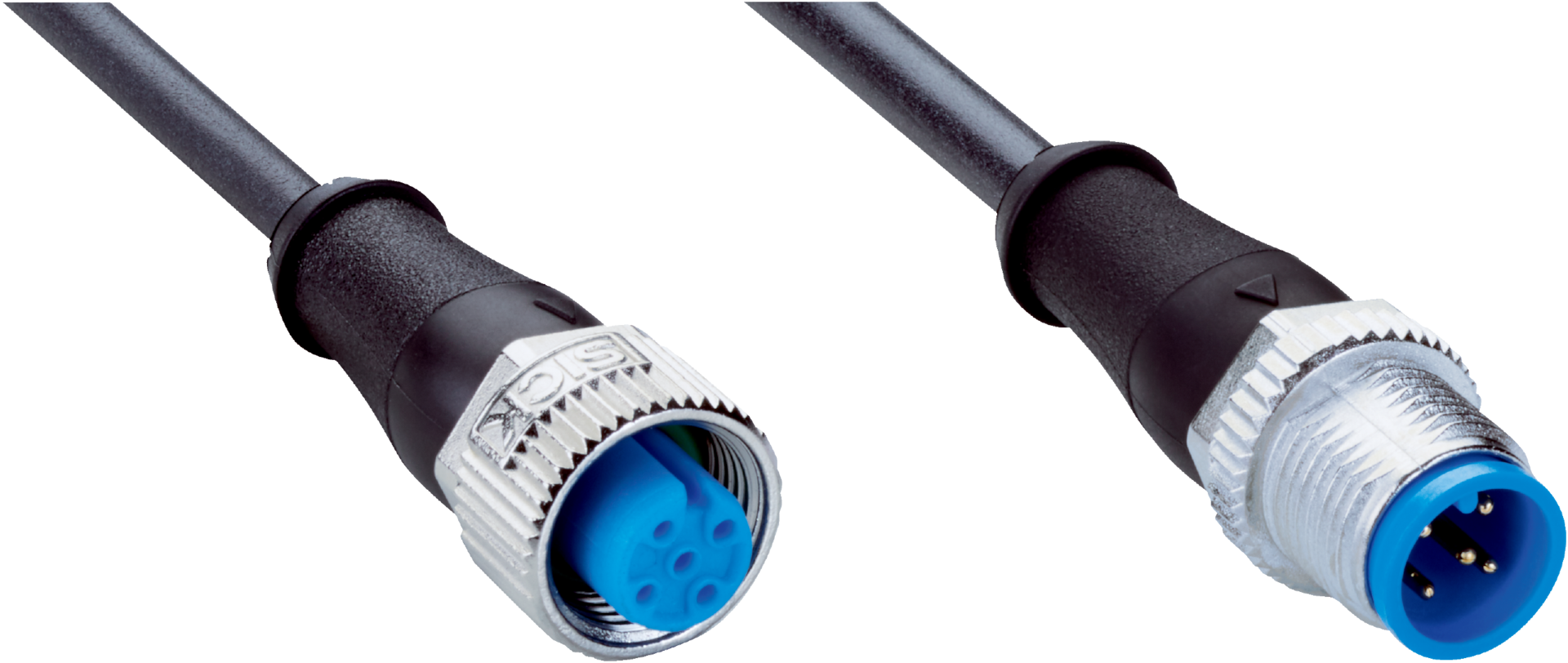

M12 Sensor Cable | 5-Pin A-Coded Connectors | 10m PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features female and male 5-pin A-coded connectors, designed for reliable connections in industrial automation and robotics. With a robust 10m PUR halogen-free cable, it supports flexible use and drag chain operation, ensuring durability in harsh environments. Rated for 4 A current loading and IP65/IP66/IP67 for protection against dust and water, this cable is perfect for sensor and actuator applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, Industrial Sensor Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 10 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 5-pin, straight, A-coded connectors
- Screw connection locking plug
- Cable length 10 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
- Rated for 4 A current loading and 300 V AC nominal voltage
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics and automation sensor/actuator connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-100UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
