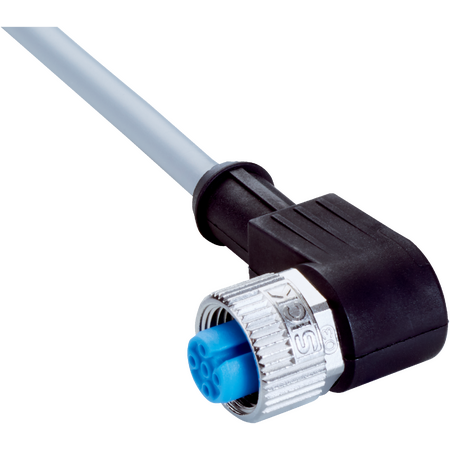

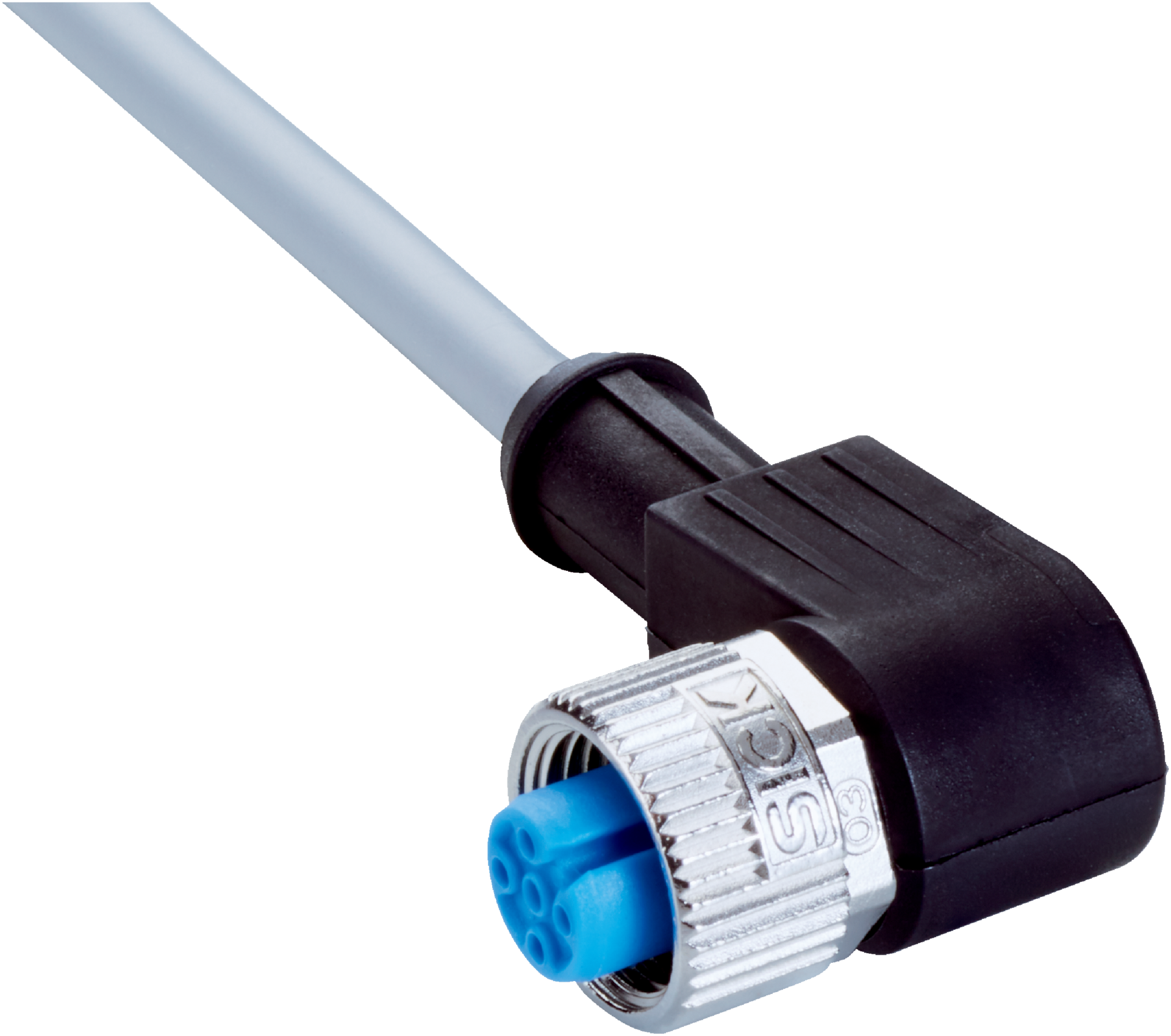

M12 Sensor Cable | 5-Pin Angled Female Connector | 2m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 5-pin angled female connector and flying leads, making it perfect for industrial automation and sensor connection applications. With a robust design and IP65/IP66K/IP67 enclosure rating, this cable is built to withstand harsh environments while ensuring reliable performance. Ideal for use in uncontaminated zones and areas with chemicals, it offers durability and safety for your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m, 5-wire, PVC jacket
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use –5 °C to +80 °C, stationary position –30 °C to +80 °C, head –25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, angled, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM
- Cable length 2 m, 5-wire, PVC jacket in gray
- Unshielded cable with 0.34 mm² conductor cross section
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use –5 °C to +80 °C, stationary position –30 °C to +80 °C, head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67
- Current loading 4 A
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Rated impulse voltage 1.5 kV
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Flame retardant and robust design enhances safety and reduces environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-020VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
