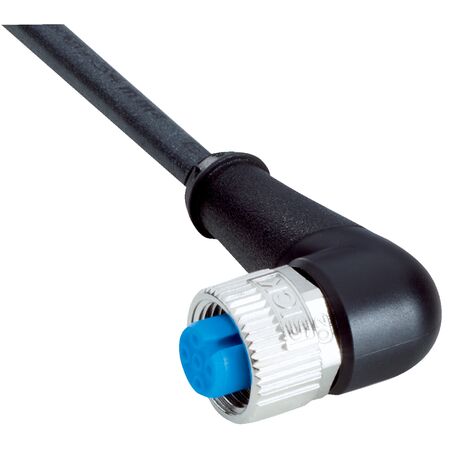

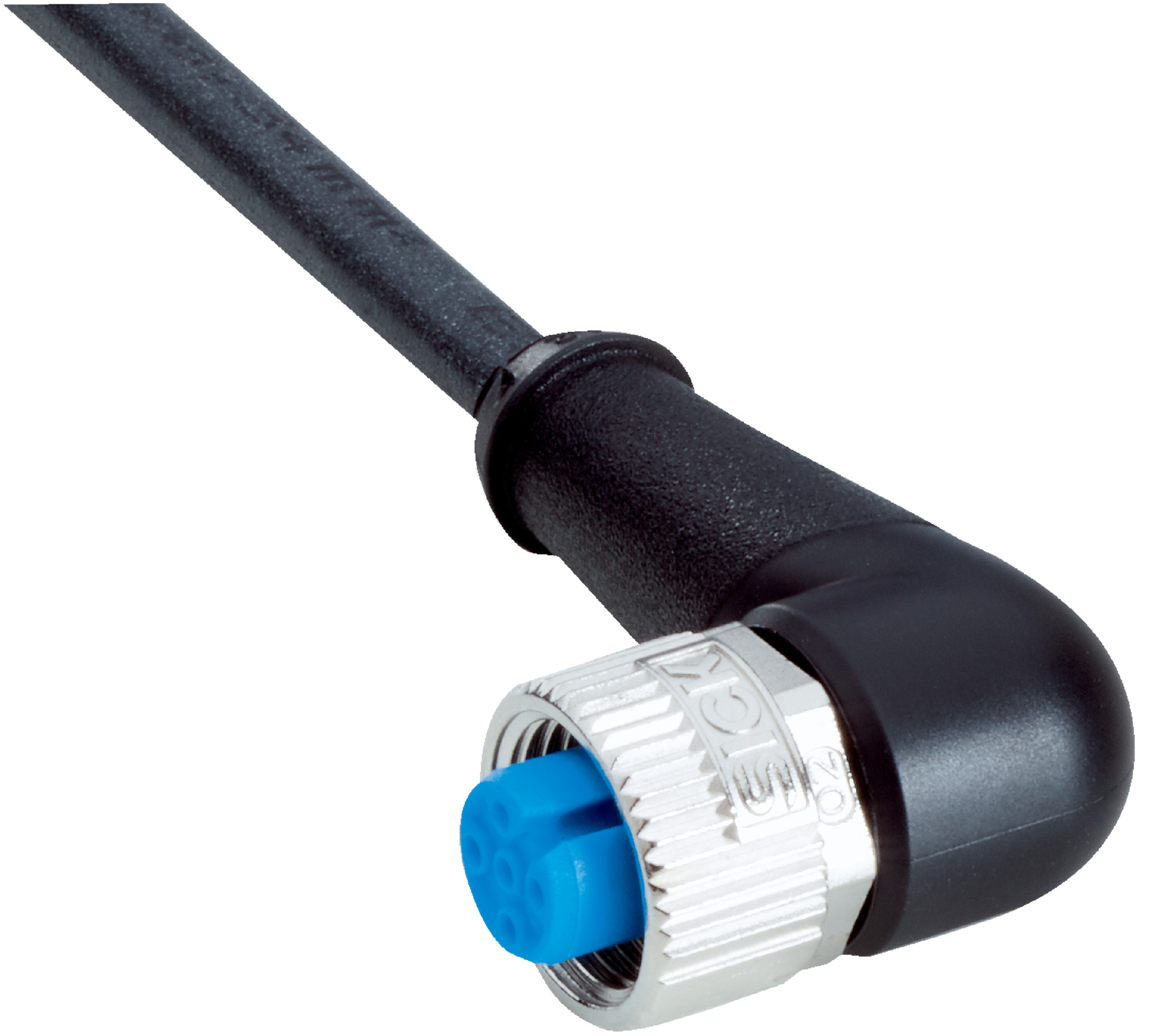

M12 Sensor Cable | 5-Pin Angled Female Connector | 1m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features a 5-pin angled female connector and flying leads, making it perfect for industrial automation and robotics. With a durable TPU construction and IP65/IP66K/IP67 enclosure rating, this cable is designed for reliable performance in harsh environments, including drag chain operations and zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 1 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: -25 °C to +80 °C (flexible use and drag chain), -40 °C to +80 °C (stationary), head up to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Torsion force: 180° per 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- Cable: 1 m, 5-wire, PUR, halogen-free, black jacket
- Cable diameter: 4.8 mm, conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use and drag chain), -40 °C to +80 °C (stationary), head up to +85 °C
- Nominal voltage: 300 V AC, Test voltage: 2,500 V AC
- Current loading up to 4 A
- Torsion force 180° per 1 m, torsion cycles 2,000,000
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials and high bending cycle rating extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A15-010UB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
