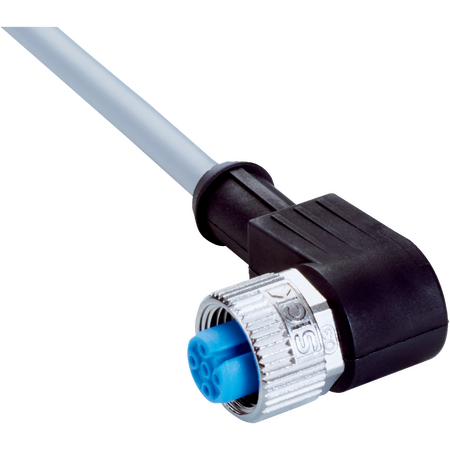

M12 Sensor Cable | 5-Pin Angled Connector | PVC Jacket | IP65 Rated | by SICK
The M12 Sensor Cable features a 5-pin angled female connector and a durable PVC jacket, making it ideal for sensor and actuator applications in industrial automation. With an IP65/IP66K/IP67 enclosure rating and a flexible operating temperature range from -5 °C to +80 °C, this cable ensures reliable performance in various environments. Designed for professional installation, it meets AS/NZS 3000 standards for electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable 5-pin, PVC Sensor Cable, SICK Sensor Cable 10m
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable wires: 5-wire, unshielded
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, angled, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket in gray color
- Unshielded 5-wire cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket reduces need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A15-100VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
