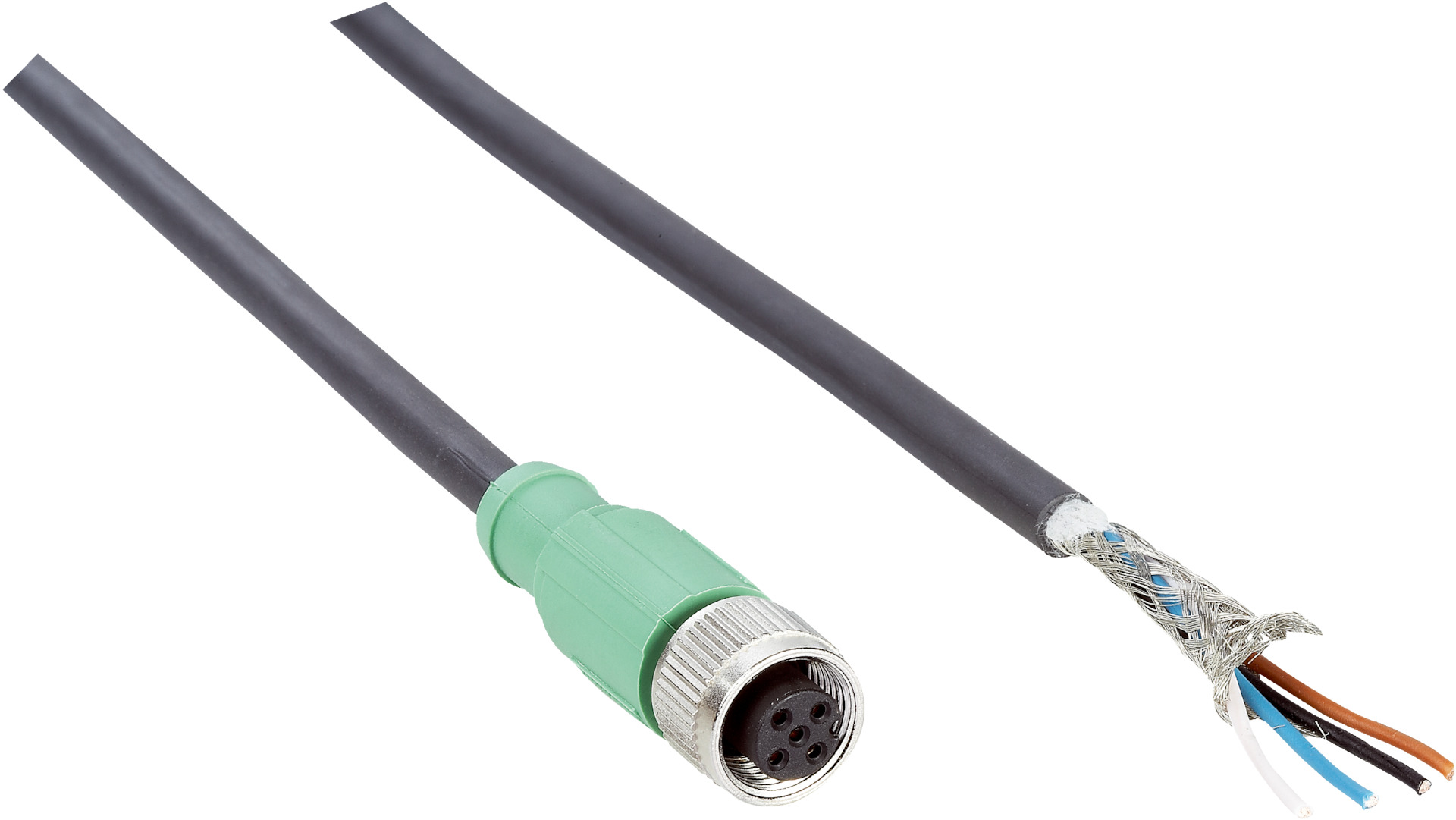

M12 Sensor Cable | 5-Pin Female Connector | 10m Shielded | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring a 5-pin female connector and 10m of shielded, 4-wire cable. Ideal for factory and process automation systems, this durable cable reduces electromagnetic interference, ensuring efficient sensor connectivity and reliable performance in machine building and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable wires: 4-wire
- Cable diameter: 0.8 mm
- Conductor cross section: 0.5 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Flying leads on head B for flexible connection
- 10 m long, 4-wire shielded cable
- Cable diameter of 0.8 mm with 0.5 mm² conductor cross section
- Flexible use bending radius > 10 x cable diameter
- Stationary position bending radius > 5 x cable diameter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Factory and process automation systems
- Machine building and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Shielded cable reduces electromagnetic interference, improving system efficiency and reducing energy waste
- Durable construction extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now

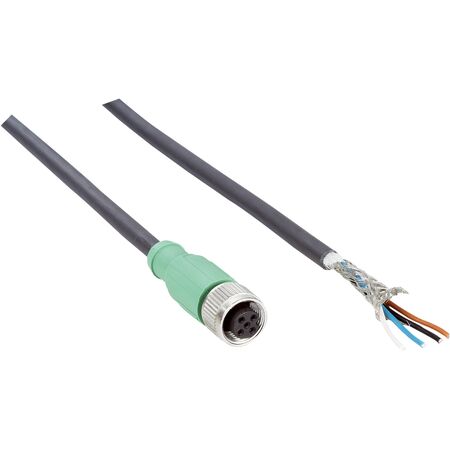

The SICK YF2A64-100XXXXLEAX sensor cable is available for immediate purchase, ideal for industrial automation and control system applications.
