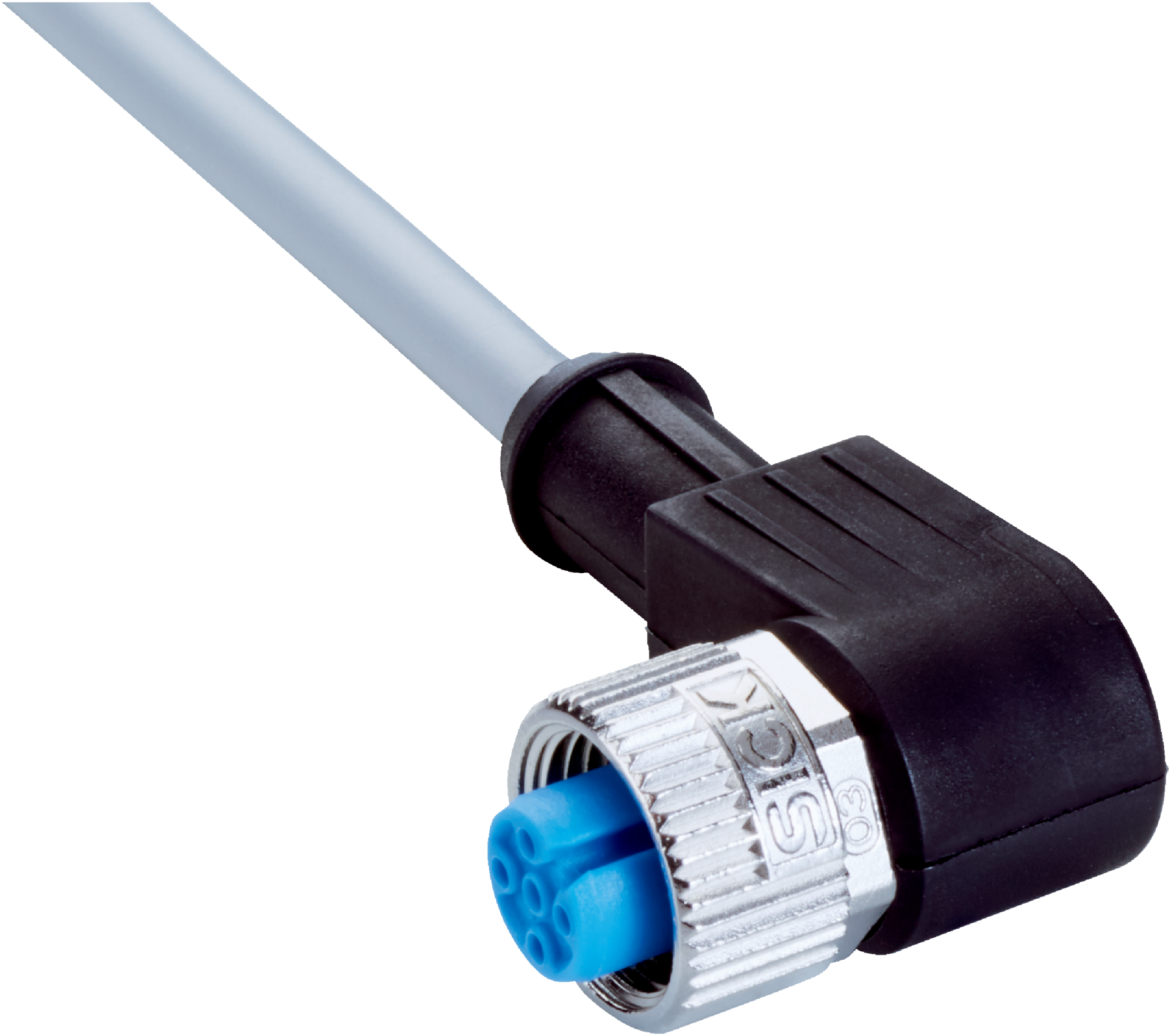

M12 Sensor Cable | 5-Pin Female Connector | 5m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 5-pin female connector and a durable 5m PVC jacket. With an IP65/IP66K/IP67 enclosure rating, it's perfect for use in industrial automation and environments with chemicals, ensuring optimal performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 5 m, 5-wire, PVC
- Jacket material: PVC
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use –5 °C to +80 °C, stationary position –30 °C to +80 °C, head –25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance, piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, angled, A-coded
- Flying leads connection
- Screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 5 m, 5-wire, PVC jacket
- Cable diameter 5.2 mm with conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use –5 °C to +80 °C, stationary position –30 °C to +80 °C, head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire hazards and environmental impact
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

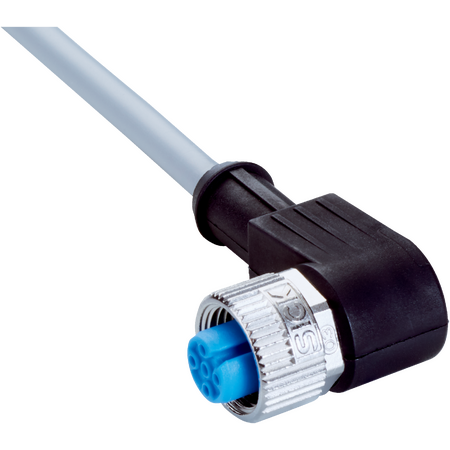

The SICK YG2A15-050VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
