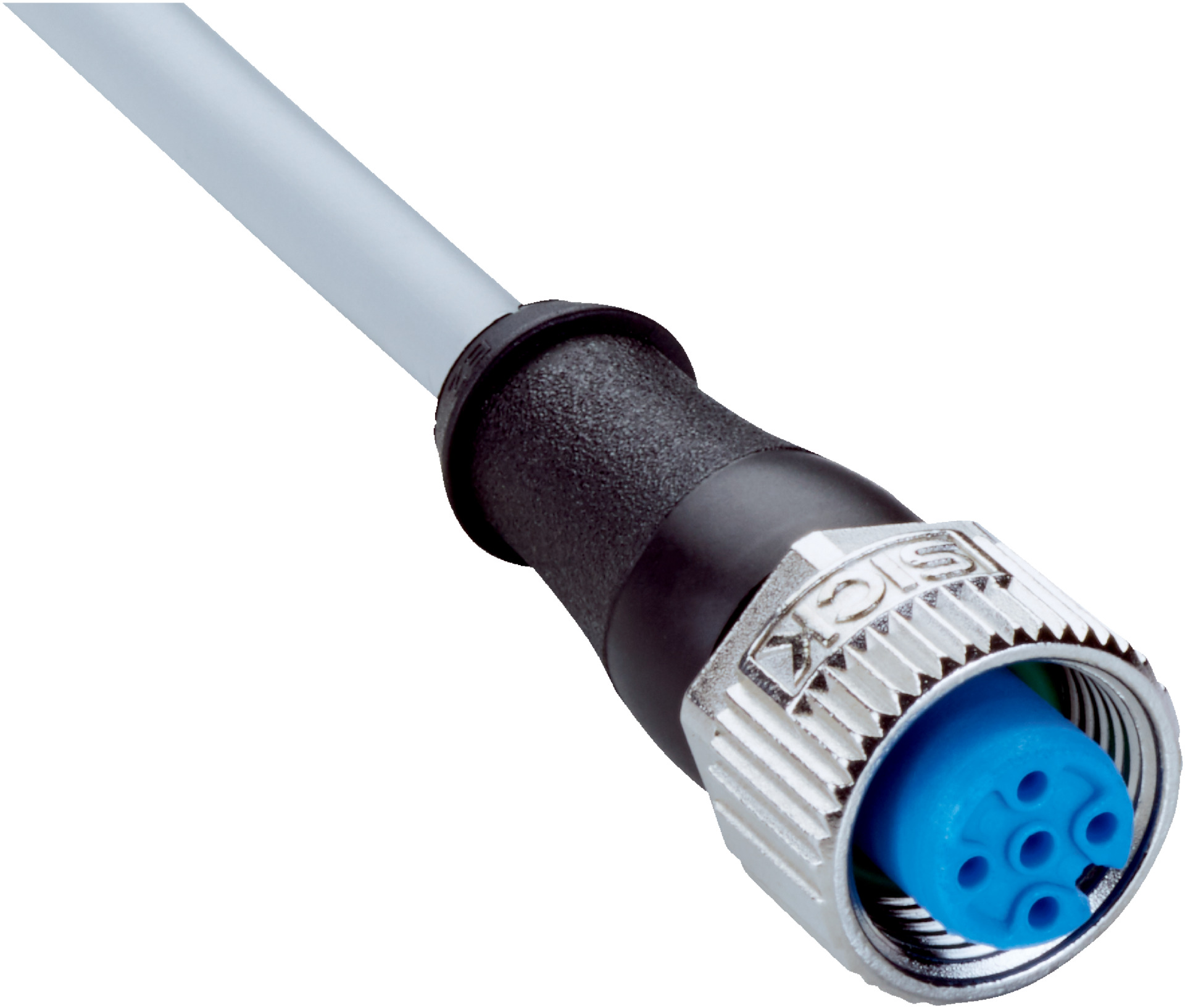

M12 Sensor Cable | 5-Pin Female Connector | 2m PVC Jacket | IP65 Rated | by SICK
The M12 Sensor Cable features a 5-pin female connector and a durable 2m PVC jacket, making it ideal for industrial automation and sensor connection applications. With an IP65 rating and a flexible operating temperature range of -5 °C to +80 °C, this cable is built for reliability in challenging environments, ensuring optimal performance in chemical zones and uncontaminated areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 2 m, 5-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM
- Cable length 2 m, 5-wire, PVC jacket in gray
- Cable diameter 5.2 mm, conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire hazards and environmental impact
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

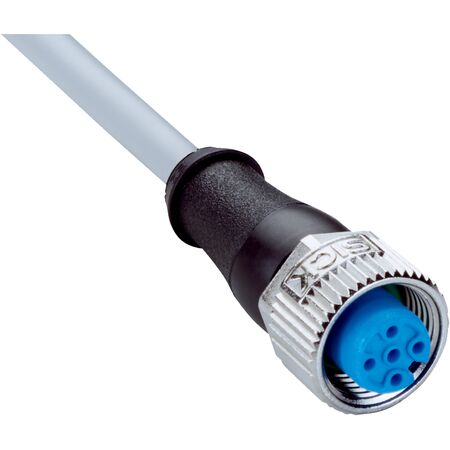

The SICK YF2A15-020VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
