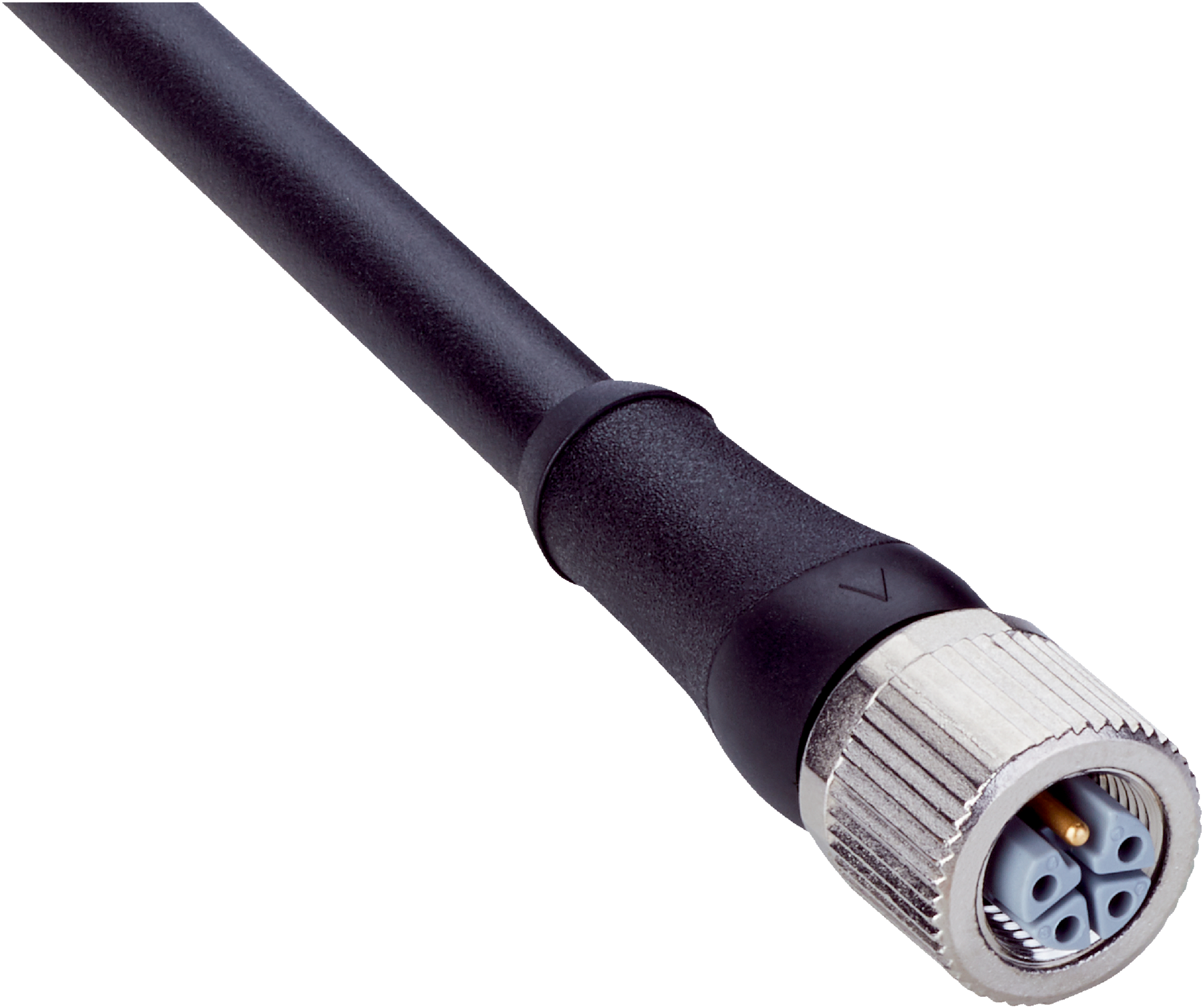

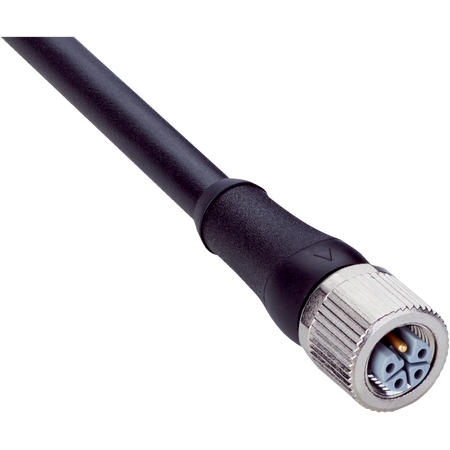

M12 Sensor Cable | 5-Pin Female Connector | Halogen-Free PUR Jacket | IP65/IP67 Rated | by SICK
The M12 Sensor Cable features a 5-pin female connector and a halogen-free PUR jacket, making it ideal for industrial automation and robotics. With an IP65/IP67 rating for dust and water protection, this cable is built for flexible use in drag chain operations, ensuring high performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PUR 5-wire, Industrial Sensor Cable, SICK M12 Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable wires: 5-wire, 1.5 mm² conductor cross section
- Cable jacket: PUR, halogen-free, black
- Cable diameter: 8.2 mm
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Temperature range: Flexible use -25°C to +80°C, Stationary -50°C to +80°C, Drag chain -20°C to +80°C, Head -25°C to +85°C
- Bending cycles: 5,000,000
- Nominal voltage: 1000 V AC
- Test voltage: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 12 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65/IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 8mm x 2000mm x 17mm
- Weight: 0.15 kg
Key Features
- Female connector, M12, 5-pin, straight, L-coded
- Flying leads with screw connection locking plug
- Cable jacket made of halogen-free PUR material
- High bending radius suitable for flexible use and drag chain operation
- IP65/IP67 rated enclosure for protection against dust and water
- Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- High torsion resistance with 2,000,000 torsion cycles
- Operating temperature range from -50°C to +85°C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YF2L15-020UH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
