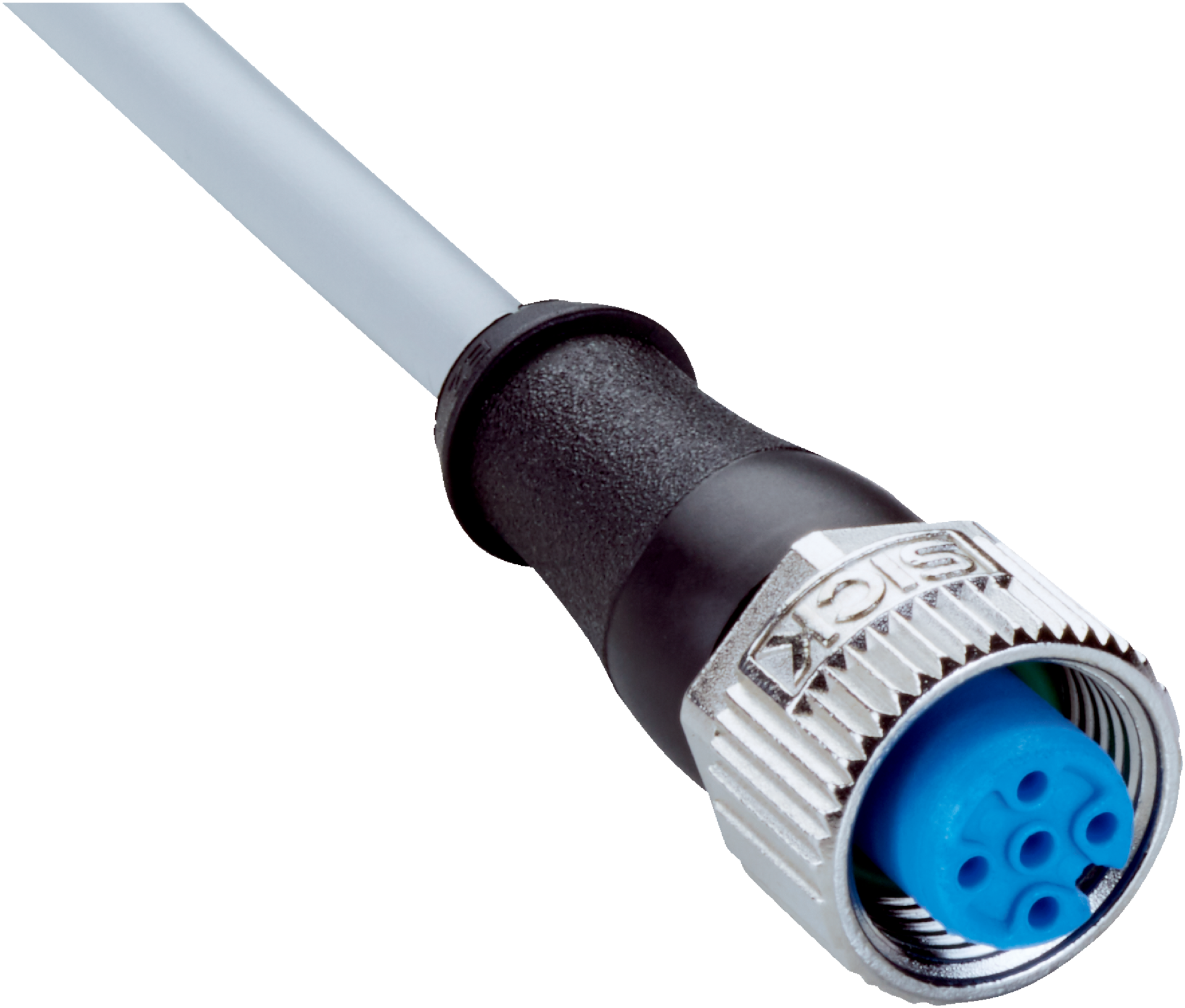

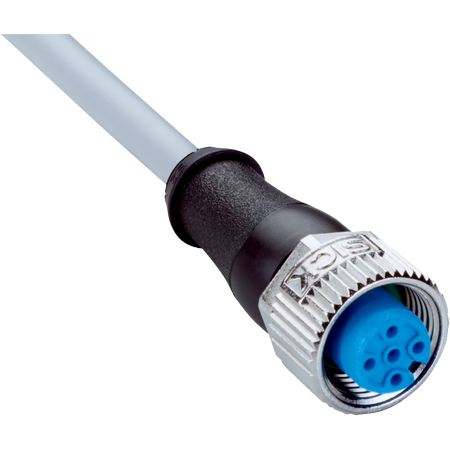

M12 Sensor Cable | 5-Pin Female Connector | PVC Jacket | IP65 Rated | by SICK
The M12 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 5-pin female connector and durable PVC jacket. With an IP65 rating and a wide operating temperature range from -30°C to +85°C, this cable is perfect for industrial automation applications, ensuring robust performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PVC 5x0.34, SICK Sensor Cable, M12 5-pin Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable wires: 5-wire, PVC jacket
- Jacket color: Gray
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.15 kg
Key Features
- Female M12, 5-pin, straight, A-coded connector on head A
- Flying leads on head B with screw connection locking plug
- Durable TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket and cable with gray color
- Unshielded 5-wire cable with 0.34 mm² conductor cross section
- High bending radius for flexible and stationary use
- Operating temperature range from -30°C to +85°C depending on position
- Rated for 300 V AC nominal voltage and 4 A current loading
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-100VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
