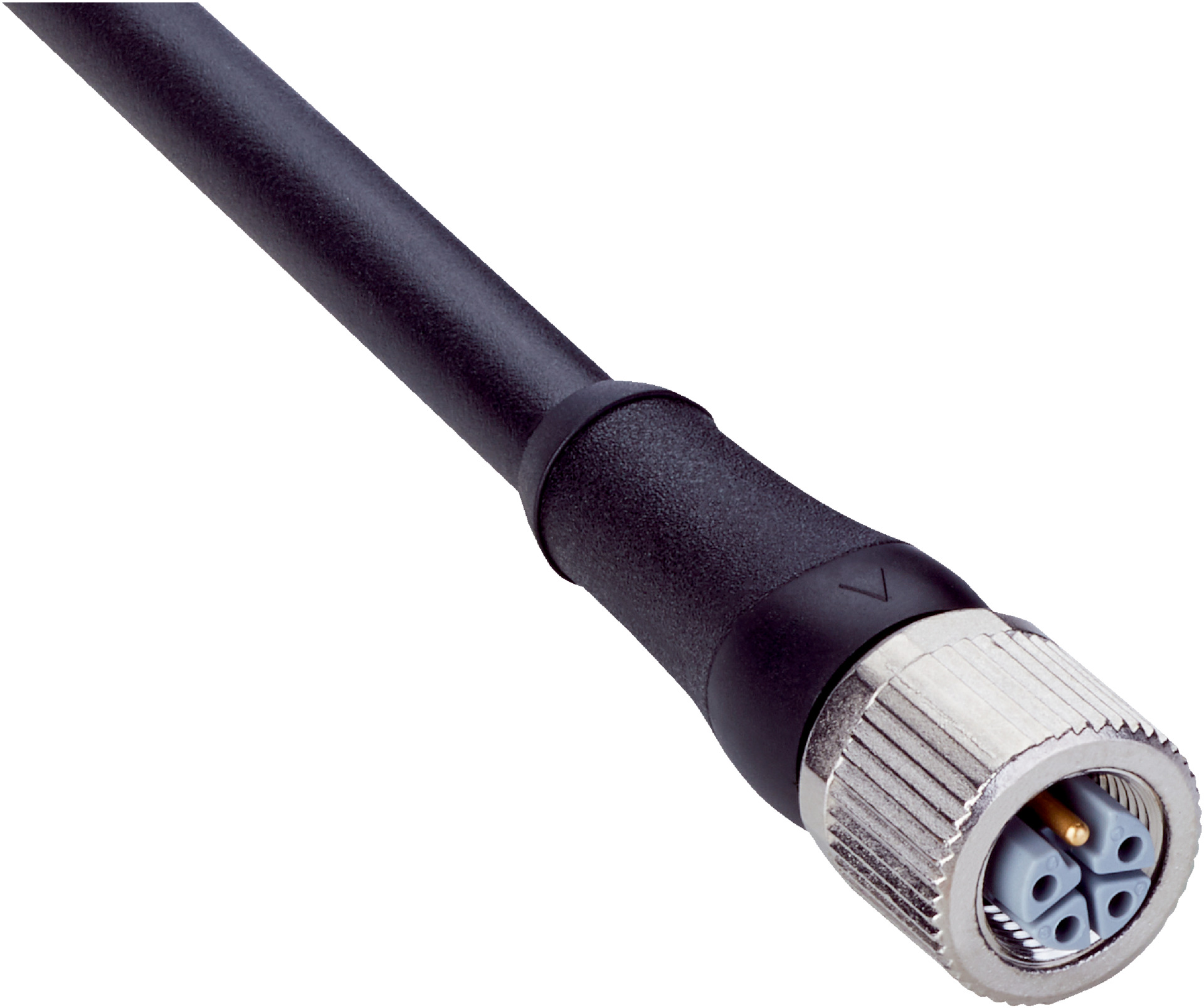

M12 Sensor Cable | 5-Pin Female Connector | IP65/IP67 Rated | 2m Length | by SICK
The M12 Sensor Cable with a 5-pin female connector is designed for reliable connections in industrial automation and robotics. Featuring a durable TPU construction and IP65/IP67 enclosure rating, this cable is perfect for use in uncontaminated zones and environments with oils and lubricants. With a flexible 2m length and high insulation resistance, it ensures optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 8.2 mm
- Conductor cross section: 1.5 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -50 °C to +80 °C, Drag chain operation -20 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Nominal voltage: 1000 V AC
- Test voltage: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 12 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 8mm x 2000mm x 17mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 5-pin, straight, L-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m, 5-wire PUR halogen-free cable
- Cable diameter 8.2 mm, conductor cross section 1.5 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -50 °C to +85 °C depending on use
- IP65/IP67 enclosure rating
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- High insulation resistance of 100 MΩ
- Rated for 12 A current loading and 1000 V AC nominal voltage
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

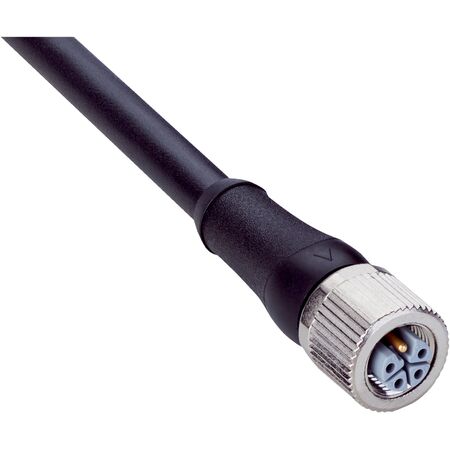

The SICK YF2L15-020UH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
