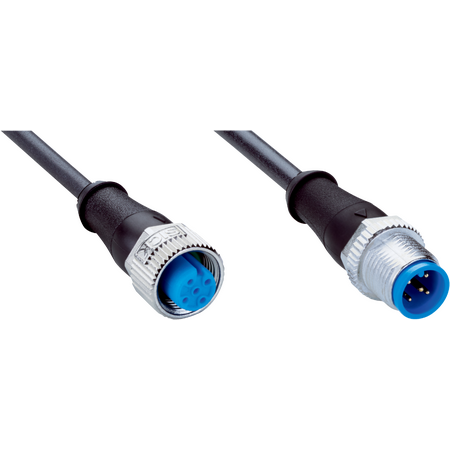

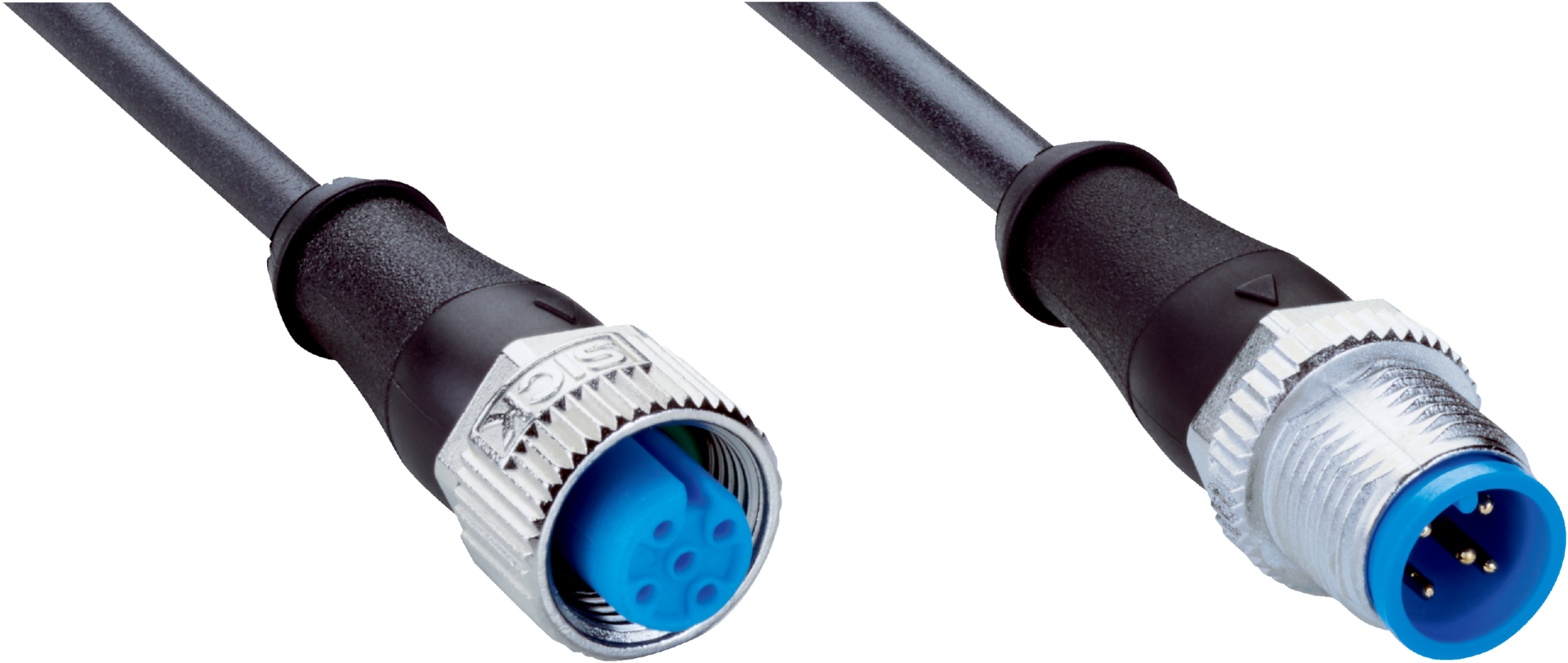

M12 Sensor Cable | 5-Pin Female & Male Connectors | 15m PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features a 5-pin female connector on one end and a male connector on the other, designed for reliable connections in industrial automation and robotics. With a robust 15m PUR cable, it operates in extreme temperatures from -40 °C to +85 °C and is rated IP65/IP66/IP67 for water and dust resistance, making it ideal for drag chain applications and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, PUR Cable Sensor Connector, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 15 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Cycles per minute: 35
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Cable length 15 m, 5-wire, PUR, halogen-free
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67
- High bending and torsion cycle durability (10,000,000 bending cycles, 2,000,000 torsion cycles)
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-150UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
