M12 Sensor Cable | 5-Pin Female & Male Connectors | IP65/IP66/IP67 Rated | by SICK

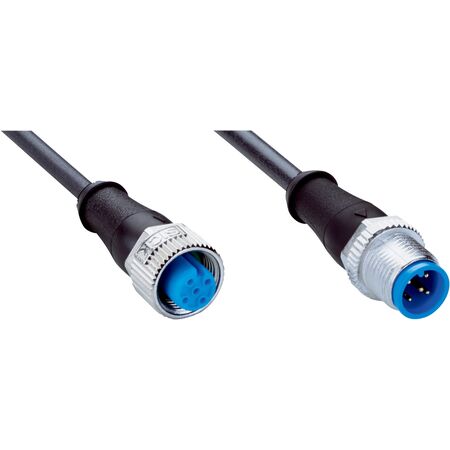

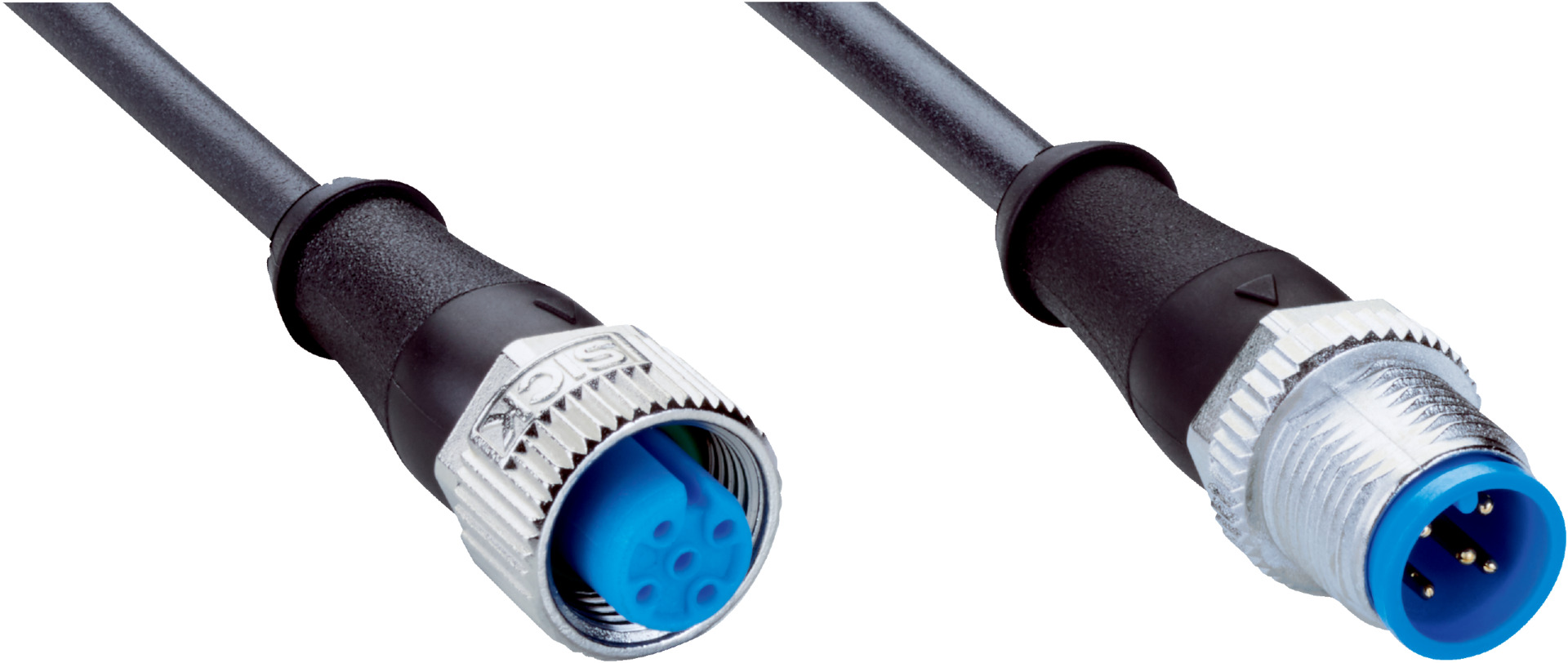

The M12 Sensor Cable YF2A15-C15UB5M2A15 features a 5-pin female connector on head A and a male connector on head B, designed for reliable sensor and actuator connections. With a robust IP65/IP66/IP67 enclosure rating and a flexible operating temperature range from -40 °C to +85 °C, this cable is perfect for industrial automation and robotics applications, ensuring durability and performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 0.15 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 150mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Cable length 0.15 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000 and bending cycles up to 10,000,000
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-C15UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
