M12 Sensor Cable | 5-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK

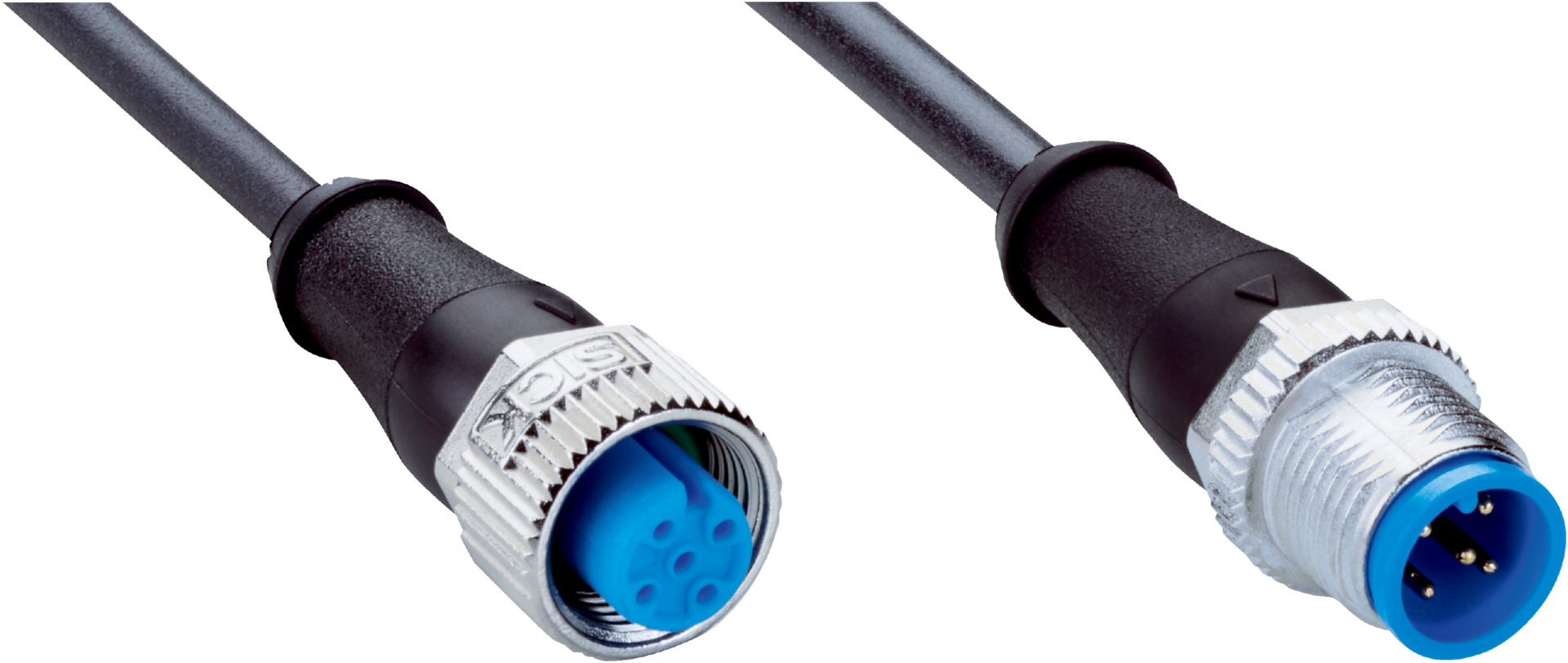

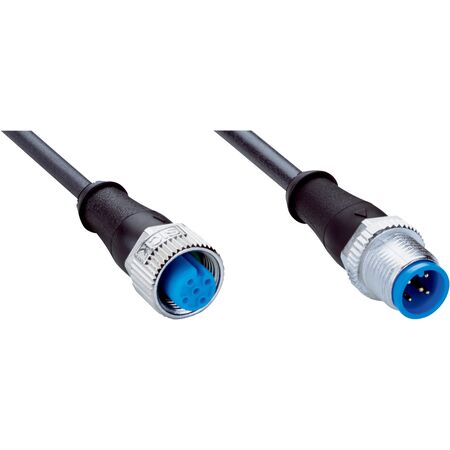

The M12 Sensor Cable YF2A15-010UB5M2A15 features a 5-pin female connector on one end and a male connector on the other, designed for reliable connections in industrial automation and robotic applications. With a robust IP65/IP66K/IP67 enclosure rating and a flexible operating temperature range of -25 °C to +80 °C, this cable is perfect for use in uncontaminated zones and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 1 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 1 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm, conductor cross section: 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° per meter with 2,000,000 torsion cycles
- Nominal voltage: 300 V AC, current loading: 4 A
- Test voltage: 2,500 V AC, rated impulse voltage: 1.5 kV
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF2A15-010UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications.
