M12 Sensor Cable | 5-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK

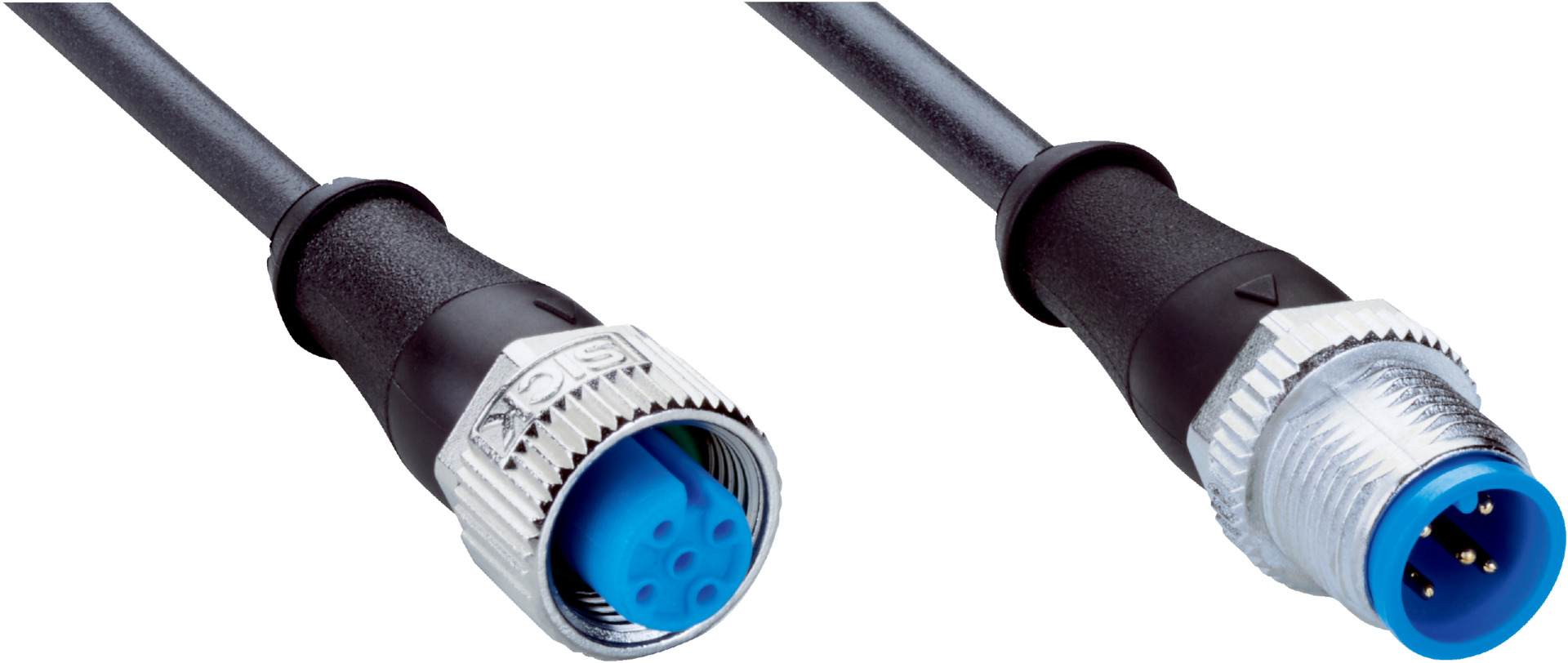

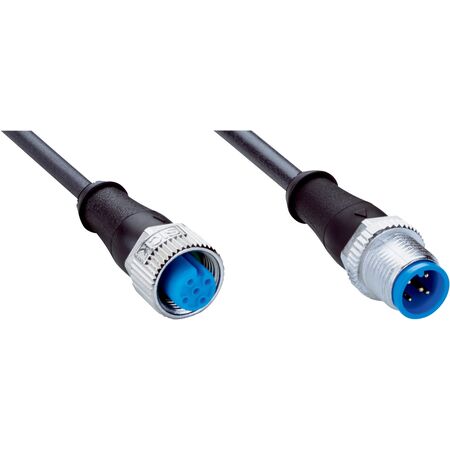

The M12 Sensor Cable YF2A15-020UB5M2A15 features a 5-pin female connector on head A and a male connector on head B, designed for reliable connections in industrial automation and robotics. With a robust IP65/IP66K/IP67 enclosure rating and a halogen-free PUR jacket, this cable is perfect for use in uncontaminated zones and environments with oils and lubricants, ensuring durability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 2 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 4 A
- Torsion force: 180° per 1 m
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm, conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC, test voltage: 2,500 V AC
- Current loading: 4 A
- Torsion force: 180° per 1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integration.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-020UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
