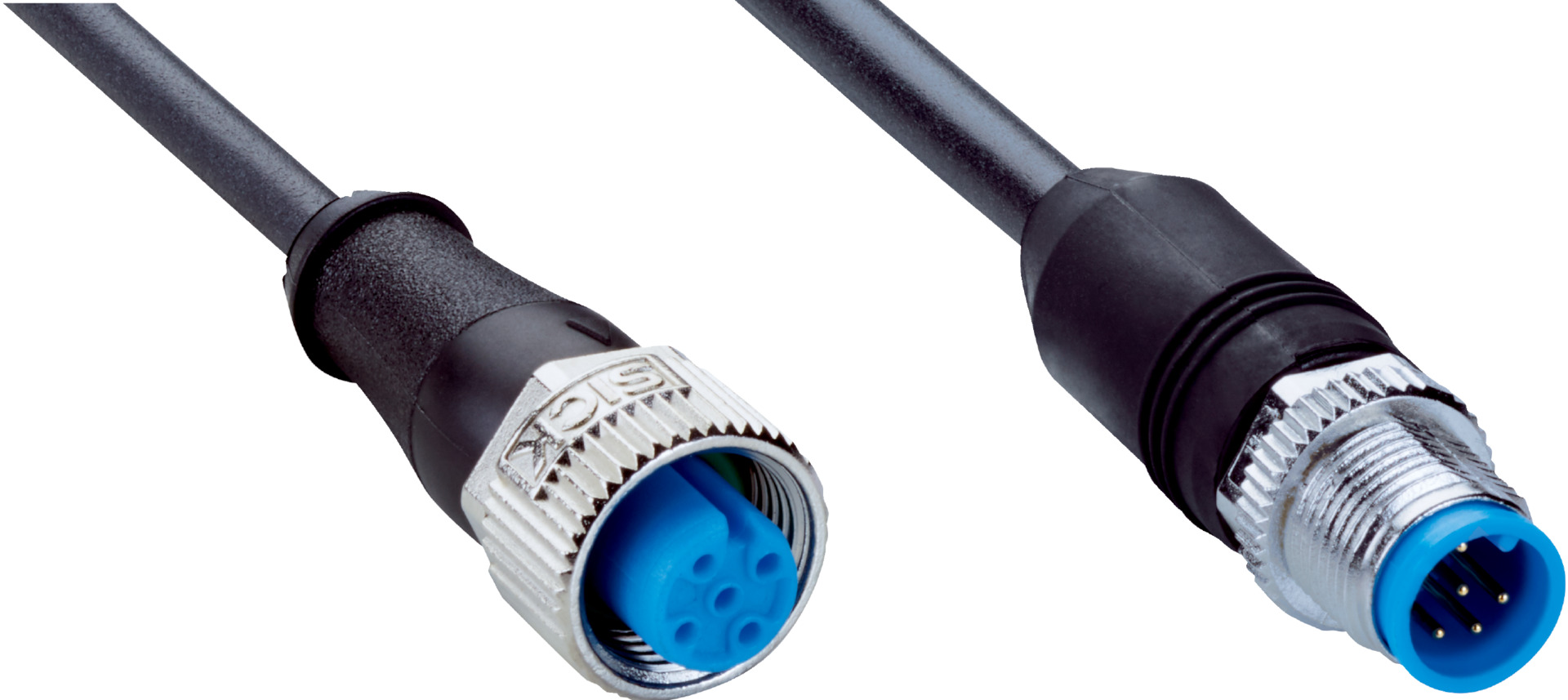

M12 Sensor Cable | 5-Pin Female & Male Connectors | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for robust industrial automation, featuring 5-pin female and male connectors for reliable actuator connections. With a halogen-free PUR cable and IP65/IP66K/IP67 ratings, it’s perfect for robot drag chain operations and ensures durability in demanding environments. Built to withstand high torsion and bending cycles, this cable is ideal for professionals seeking safety and performance in their installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.3 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +55 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 30 V DC
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 300mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Cable is halogen-free PUR with 5 wires and 0.3 m length
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable material according to UL 1581 and IEC standards
- High torsion cycles and bending cycles for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Robot drag chain operation
- Industrial automation sensor and actuator connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable material reduces harmful emissions in case of fire
- Flame retardant properties enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

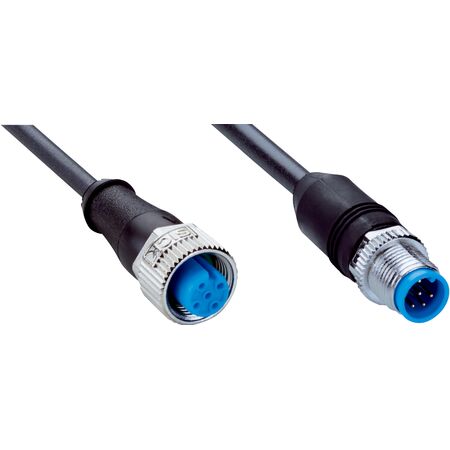

The SICK YF2A15-C30S01M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic drag chain applications.
