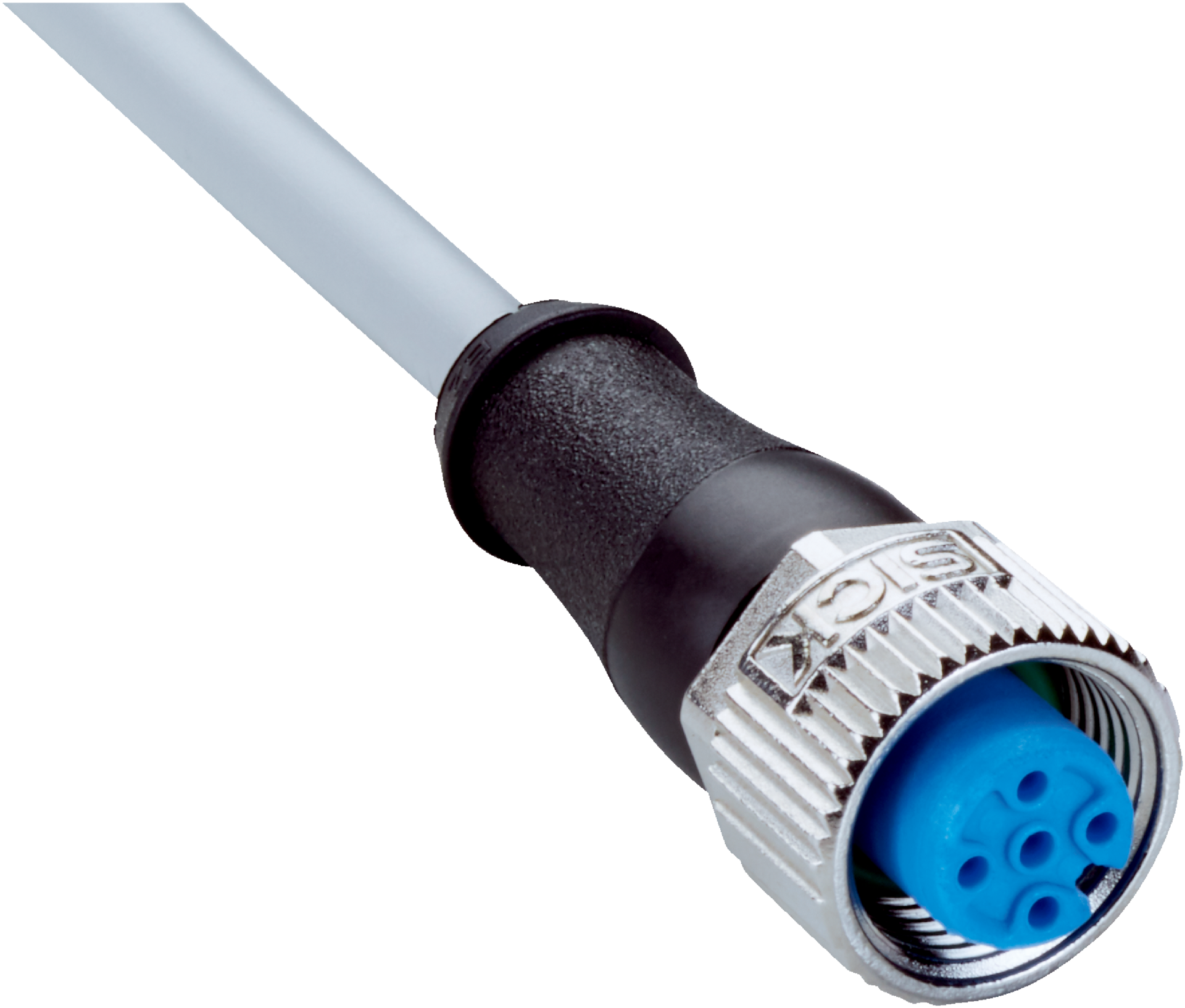

M12 Sensor Cable | 5-Pin Female Connector | IP65/IP66K/IP67 Rated | 2m Length | by SICK
The M12 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 5-pin female connector and a durable PVC jacket. With an impressive IP65/IP66K/IP67 protection rating, this cable is perfect for use in chemical exposure zones and uncontaminated environments, ensuring optimal performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable PVC 5x0.34mm², SICK Sensor Cable, Industrial Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable wires: 5-wire, PVC jacket
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable jacket made of gray PVC, 2 meters long, 5-wire
- Unshielded cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Operating temperature range: -30°C to +85°C depending on use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor cabling and compliance with IP rated connections.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire hazards
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

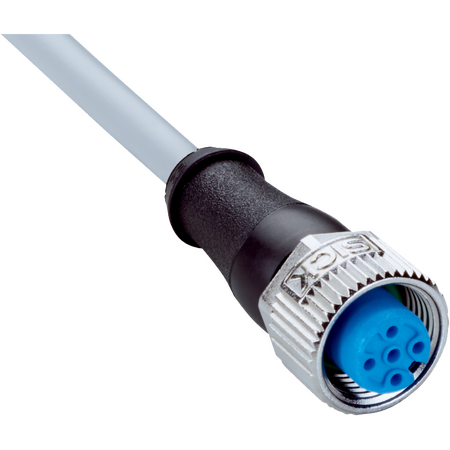

The SICK YF2A15-020VB5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in chemical and uncontaminated zones.
