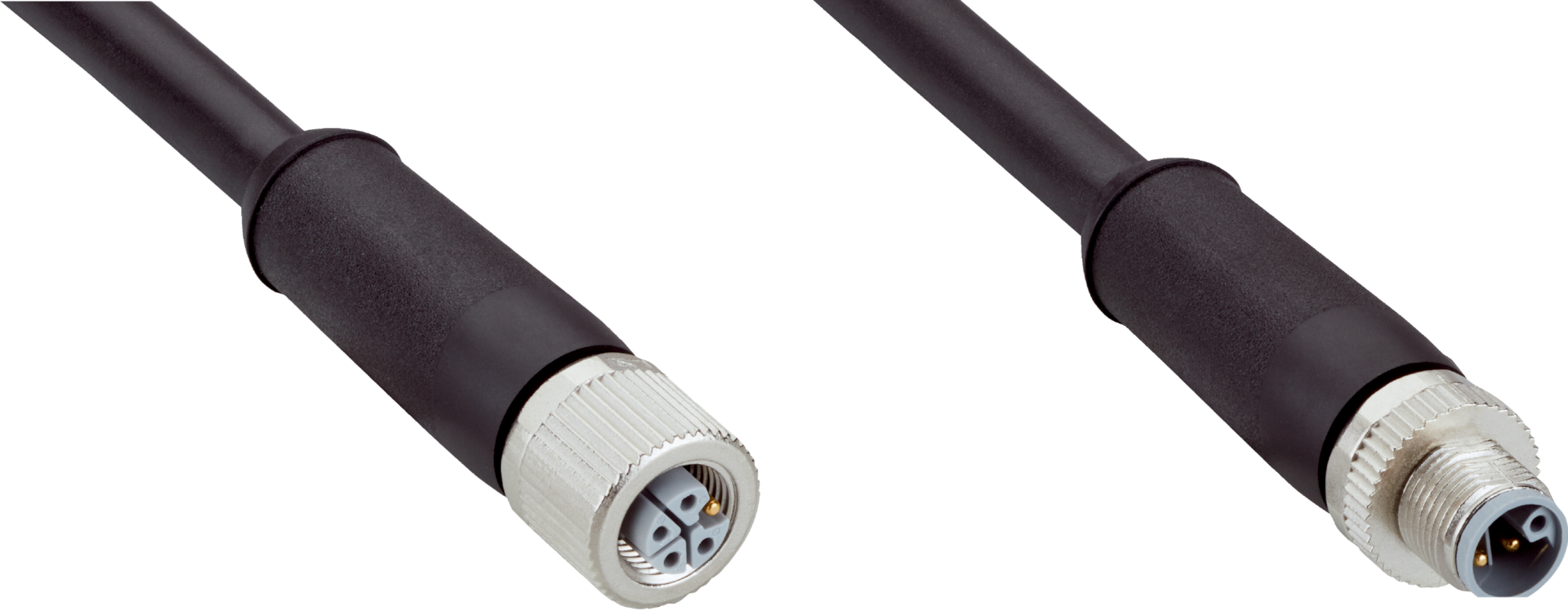

M12 Sensor Cable | 5-Pin L-Coded Connectors | IP65/IP67 Rated | 5m Length | by SICK
The M12 Sensor Cable features female and male 5-pin L-coded connectors, designed for robust applications in industrial automation and robotics. With a 5m halogen-free PUR cable, it supports high bending radius for flexible use and drag chain operation, ensuring reliable performance in challenging environments. Ideal for zones with oils and lubricants, this cable is built to withstand demanding conditions while providing excellent current loading capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 5-pin, Drag Chain Cable, SICK Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, L-coded
- Connection type head B: Male connector, M12, 5-pin, straight, L-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 5 m, 5-wire, PUR, halogen-free
- Cable diameter: 9.5 mm
- Conductor cross section: 2.5 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 7.5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: –25 °C to +80 °C
- Operating temperature stationary position: –50 °C to +80 °C
- Operating temperature drag chain operation: –25 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Bending cycles: 5,000,000
- Nominal voltage cable: 1,000 V AC
- Test voltage cable: 10,000 V AC
- Reference voltage: 63 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 16 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9.5mm x 5000mm x 17mm
- Weight: 0.3 kg
Key Features
- Female and male M12, 5-pin, straight, L-coded connectors
- Screw connection locking plug
- Cable length 5 m, 5-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- IP65/IP67 enclosure rating for robust protection
- High current loading capacity of 16 A
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper function and safety.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

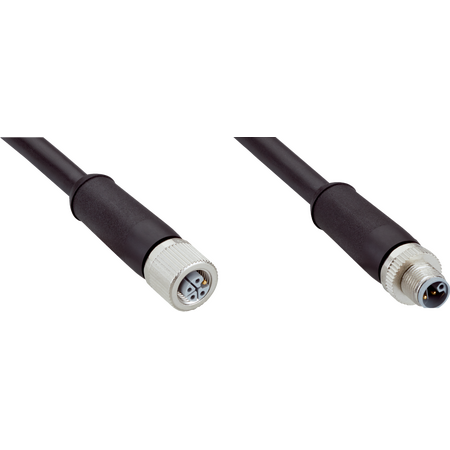

The SICK YF2L15-050UK1M2L15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and flexible cabling.
