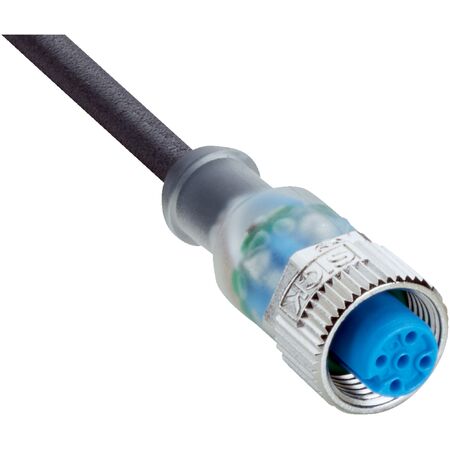

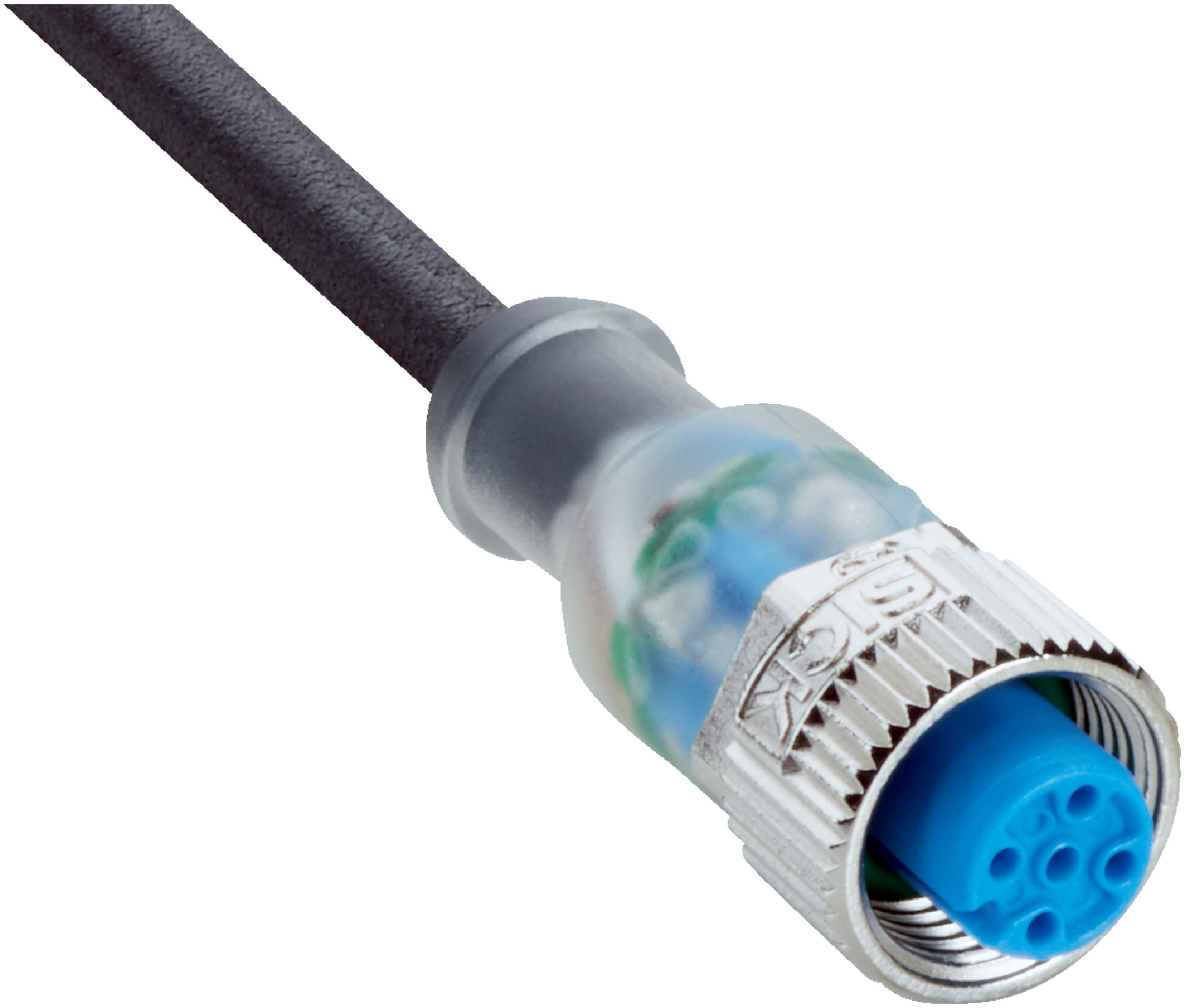

M12 Sensor Cable | 5m Length | IP65/IP66K/IP67 Rated | LED Indicator | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring a 5m PUR halogen-free cable with a female connector and LED function indicator. Ideal for robotics and drag chain applications, this cable ensures reliable performance with an IP65/IP66K/IP67 enclosure rating, making it suitable for use in contaminated zones and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 3-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Transparent TPU connector material with zinc die-cast nickel-plated locking nut
- PUR halogen-free black cable, 5 m length, 3-wire
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- LED function indicator included
- IP65 / IP66K / IP67 enclosure rating
- Suitable for PNP sensors only
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YH2A13-050UB1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
