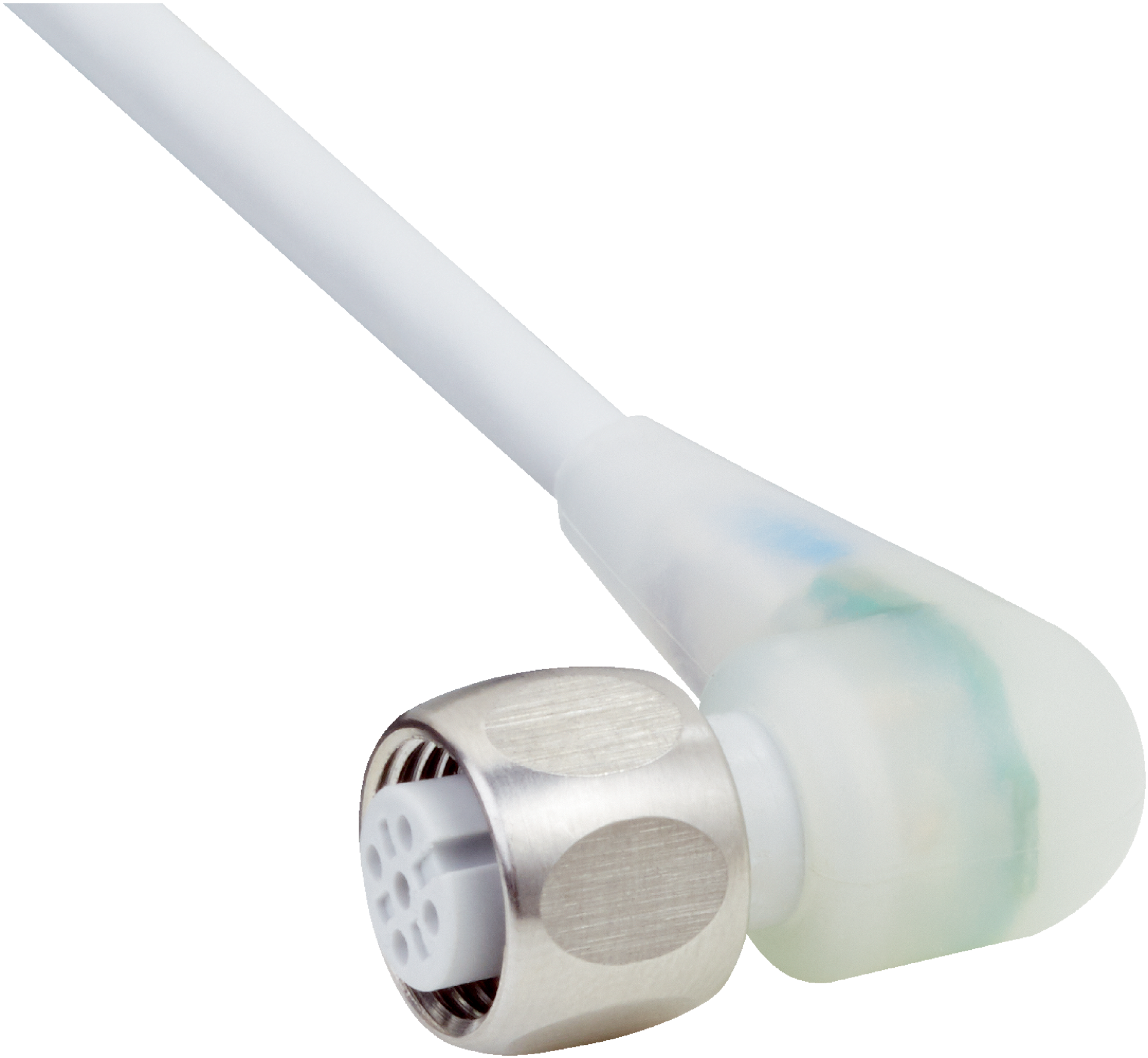

M12 Sensor Cable | 5m Length | IP67/IP69K Rated | LED Indicator | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation and robotics, featuring a 5m length and IP67/IP69K enclosure rating. With a durable polypropylene jacket and LED function indicator, this cable is perfect for hygienic and washdown zones, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable with LED Indicator, IP67 Sensor Cable, IP69K Washdown Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Bending cycles: ≥ 4,000,000
- Display LED: Yes
- Reference voltage: ≤ 24 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Operating temperature: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary position)
- Enclosure rating: IP67 / IP69K
- Specialty: LED function indicator
- Dimensions (H x L x W): 14mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled on head A
- Flying leads on head B
- Connector material: Polypropylene (PP) with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PP jacket
- Unshielded sensor/actuator cable
- LED function indicator
- High bending radius and torsion resistance (180°/1 m)
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Enclosure rating: IP67 / IP69K
- Resistant to chemical cleaning agents and specific chemicals like lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Resistant to chemical cleaning agents reducing need for frequent replacements
- Durable design extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

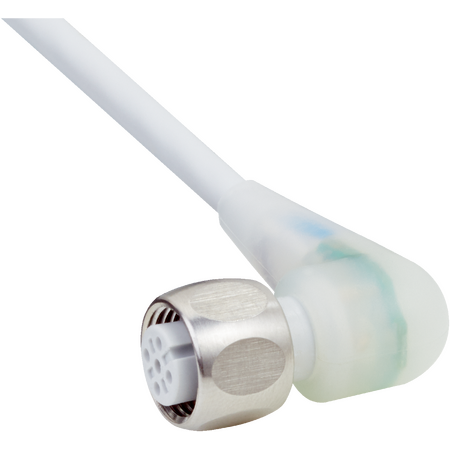

The SICK DOL-1204-L05MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and hygienic zone applications.
