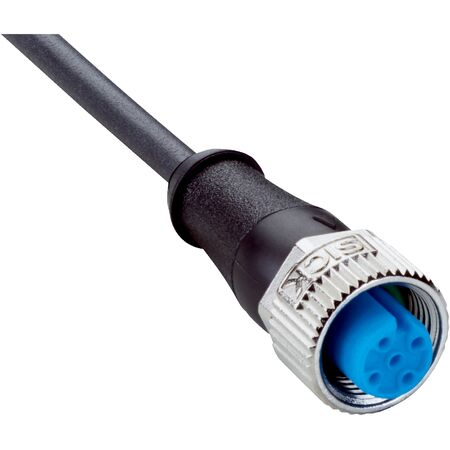

M12 Sensor Cable | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable is designed for robust industrial applications, featuring a 5m PUR halogen-free cable with a female connector and screw connection locking plug. Ideal for environments with oils, lubricants, and robotics, this cable ensures high torsion resistance and operates effectively in temperatures from -40 °C to +85 °C, making it perfect for drag chain operations and uncontaminated zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Current loading: 4 A
- Torsion force: 360° / 1 m
- Torsion cycles: 1,000,000
- Bending cycles: 10,000,000
- Overvoltage category: III
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable length: 5 m, 4-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Flame retardant cable material according to UL 1581 and IEC standards
- High torsion resistance with 1,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
- Weld-spark resistant environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact in case of fire
- Durable materials extend product life and reduce waste
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-050UW1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and harsh environment applications.
