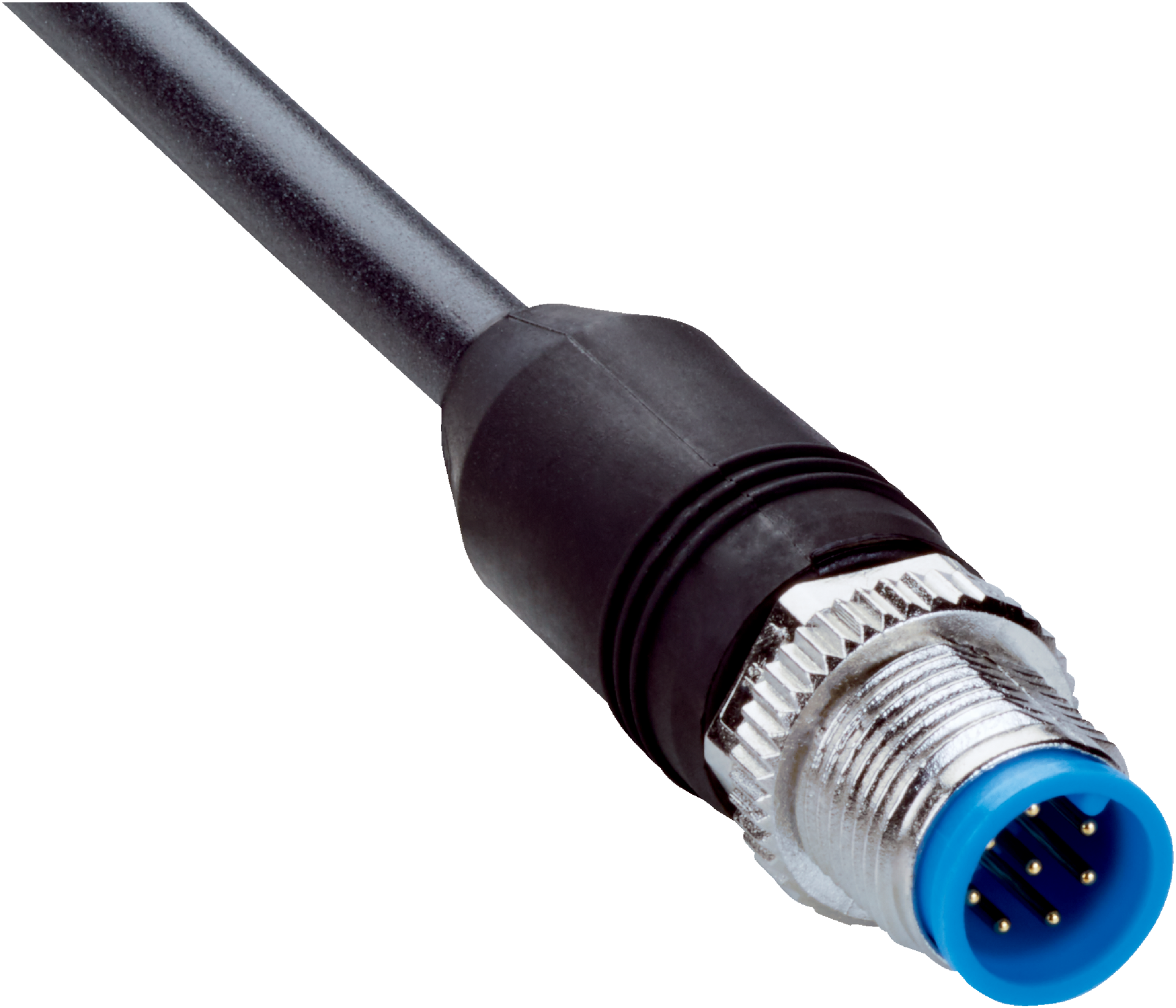

M12 Sensor Cable | 8-Pin Male Connector | 10m PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation and robotics, featuring an 8-pin male connector and a 10m halogen-free PUR cable. With an IP65/IP66/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C, this cable is perfect for drag chain operations and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable, Drag Chain Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Signal type: Sensor/actuator cable
- UL File No.: E335179
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- 10 m, 8-wire, PUR, halogen-free cable
- Unshielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

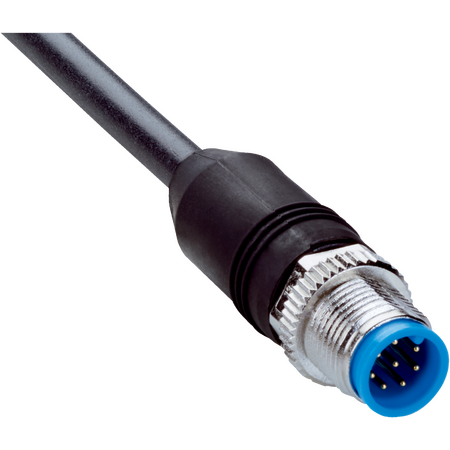

The SICK YM2A18-100UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable drag chain operation cables.
