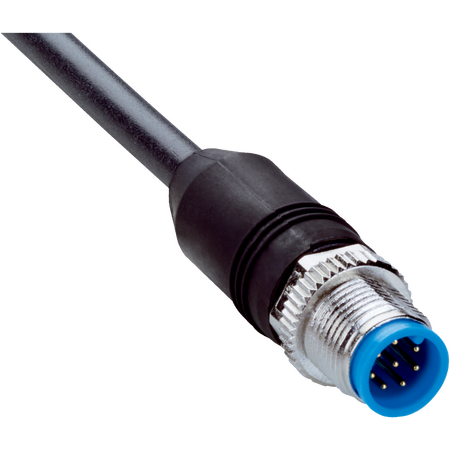

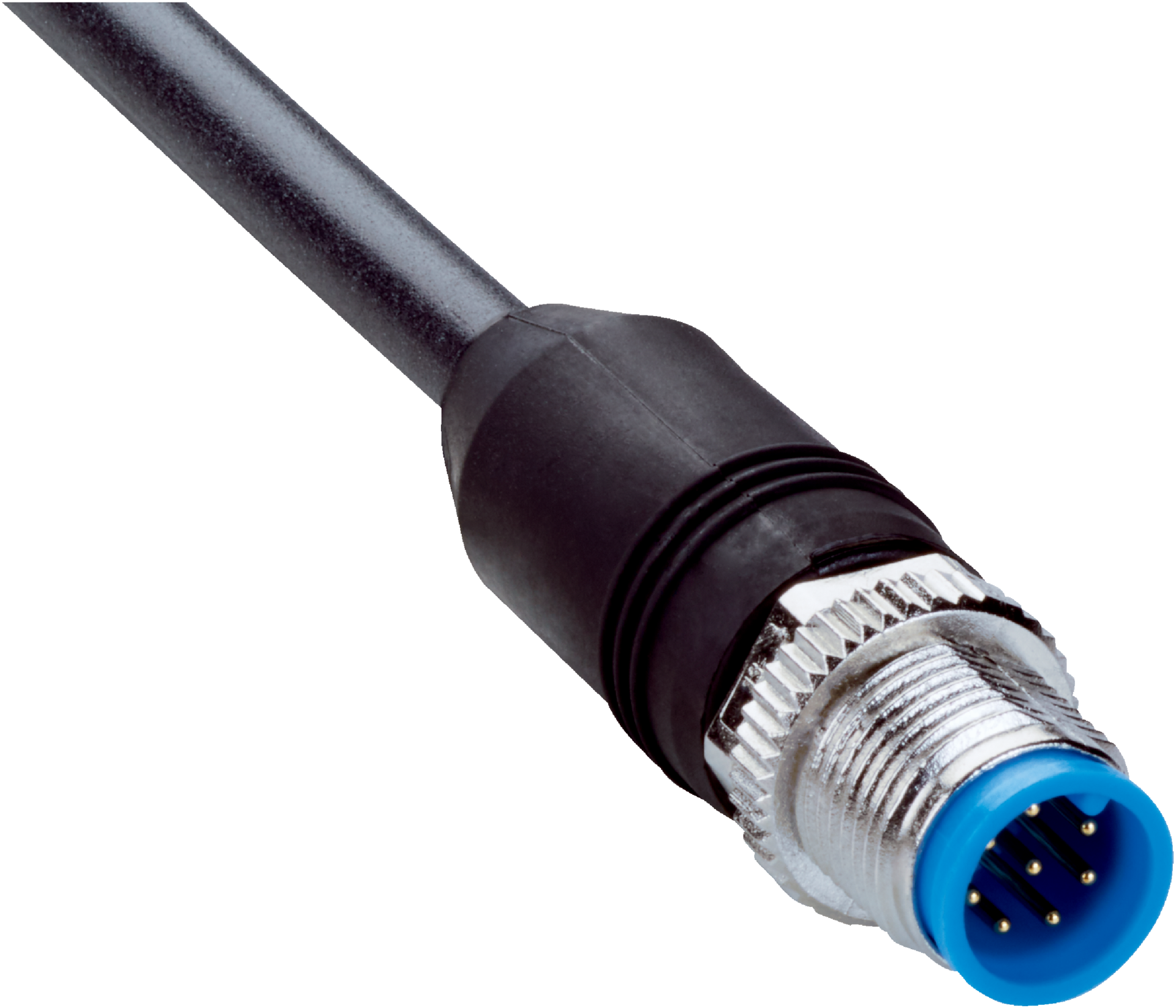

M12 Sensor Cable | 8-Pin Male Connector | 2m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features an 8-pin male connector and a 2m halogen-free PUR cable, making it ideal for industrial automation and robotics. With an IP65/IP66K/IP67 enclosure rating, it offers robust protection against dust and water, ensuring reliable performance in challenging environments. Designed for flexible use and drag chain operation, this cable withstands extreme temperatures from -40 °C to +85 °C, making it a durable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable with M12 Connector, Industrial Sensor Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Torsion force: 180° per 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Signal type: Sensor/actuator cable
- UL File No.: E335179
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.15 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable: 2 m, 8-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion cycles up to 2,000,000 with 180°/1 m torsion force
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A18-020UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
