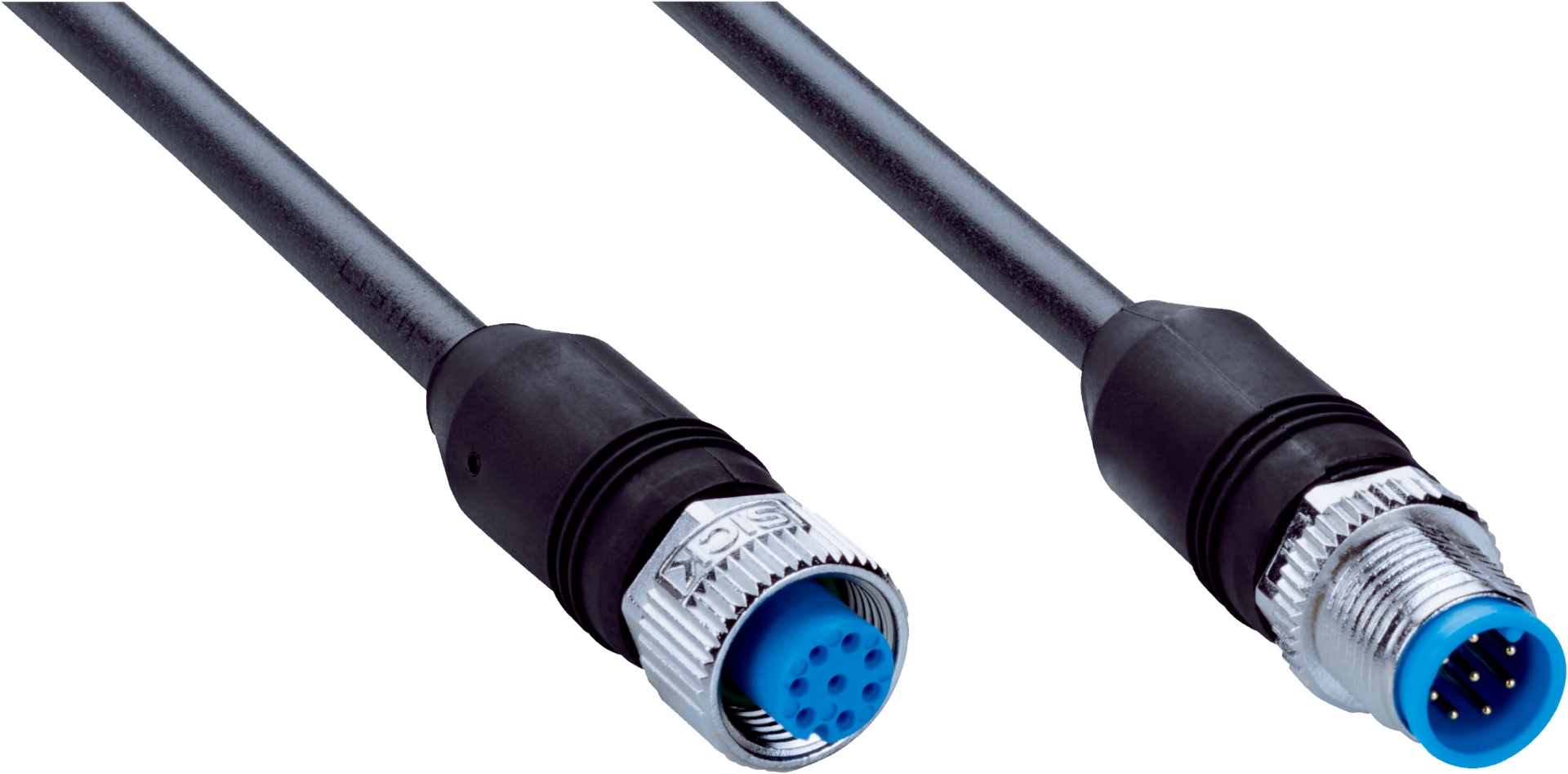

M12 Sensor Cable | 8-Pin A-Coded Connectors | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features female and male 8-pin A-coded connectors, designed for robust industrial applications. With a halogen-free PUR cable and IP65/IP66K/IP67 enclosure rating, it’s perfect for drag chain operations and environments with oils and lubricants. Built for high torsion resistance and flexible use, this cable ensures reliable performance in robotics and automation setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 8-pin, Industrial Sensor Cable, Robot Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 8-pin, straight, A-coded connectors
- Screw connection locking plug
- Cable made of halogen-free PUR material
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant according to UL 1581 and IEC 60332 standards
- High torsion resistance with 2,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

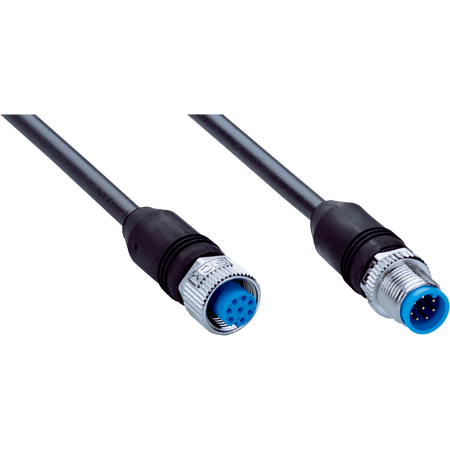

The SICK YF2A18-020UA5M2A18 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
