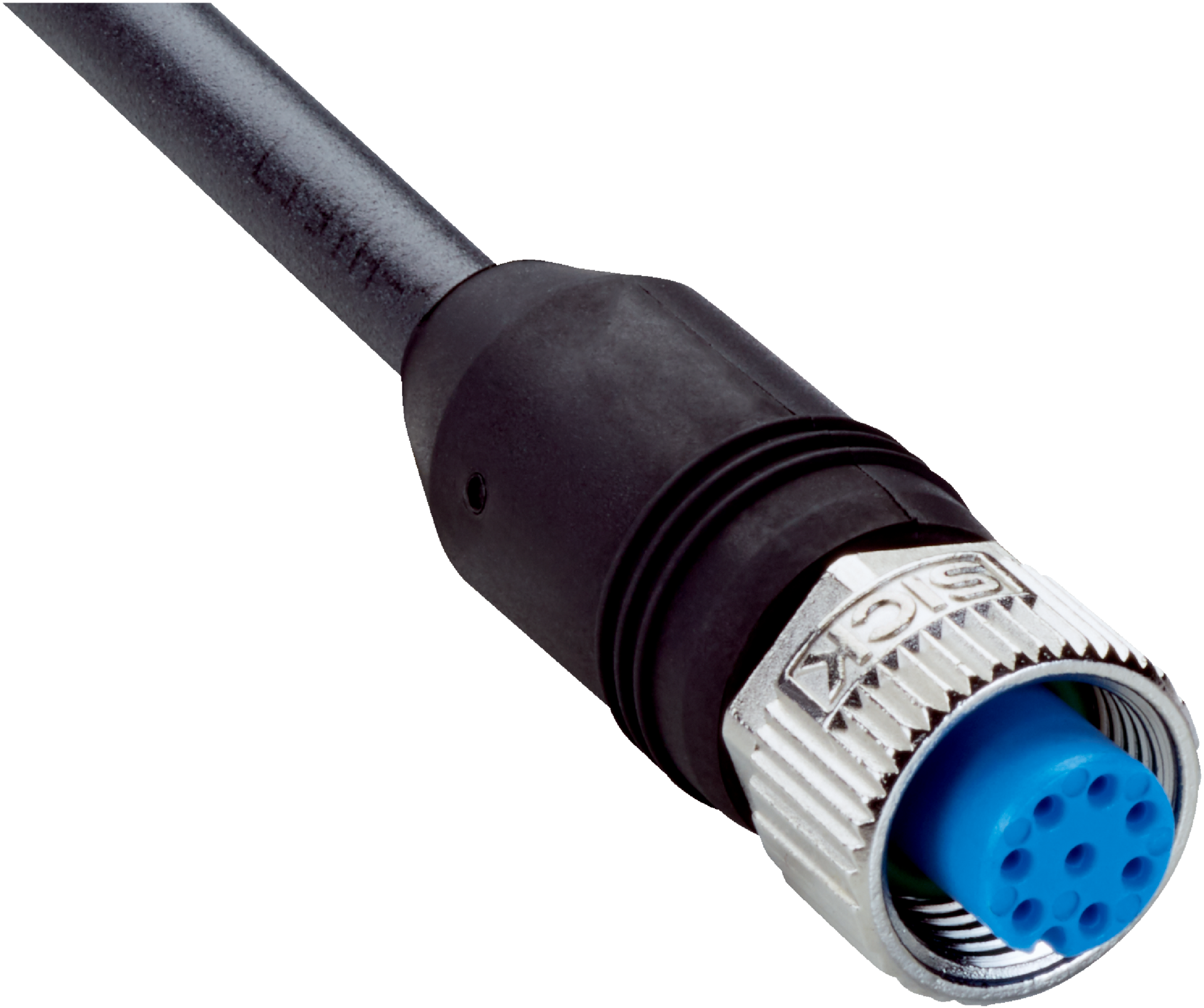

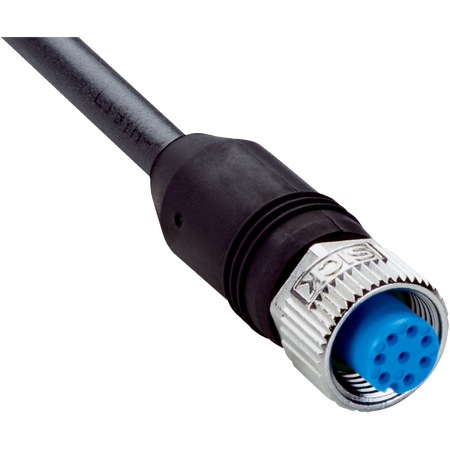

M12 Sensor Cable | 8-Pin Female Connector | 10m PUR Halogen-Free | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features an 8-pin female connector and a 10m PUR halogen-free cable, making it ideal for drag chain operations and robotics. Designed for flexible use in harsh environments, it boasts an IP65/IP66/IP67 enclosure rating and operates effectively in temperatures from -40 °C to +85 °C. With a screw connection locking plug and flame retardant materials, this cable ensures safety and reliability in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, PUR 8-wire Cable, Actuator Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 2 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Signal type: Sensor/actuator cable
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m length, 8-wire PUR halogen-free cable
- Cable diameter 5.8 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- UL File No. E335179
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A18-100UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and flexible cabling.
