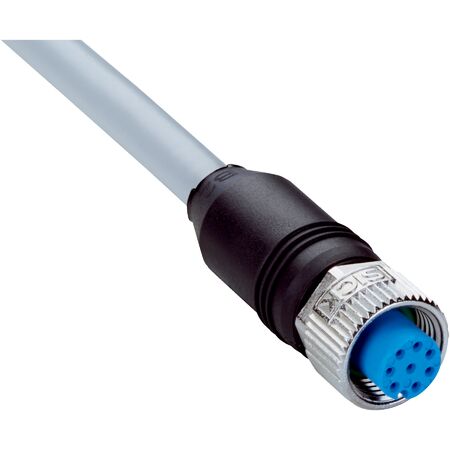

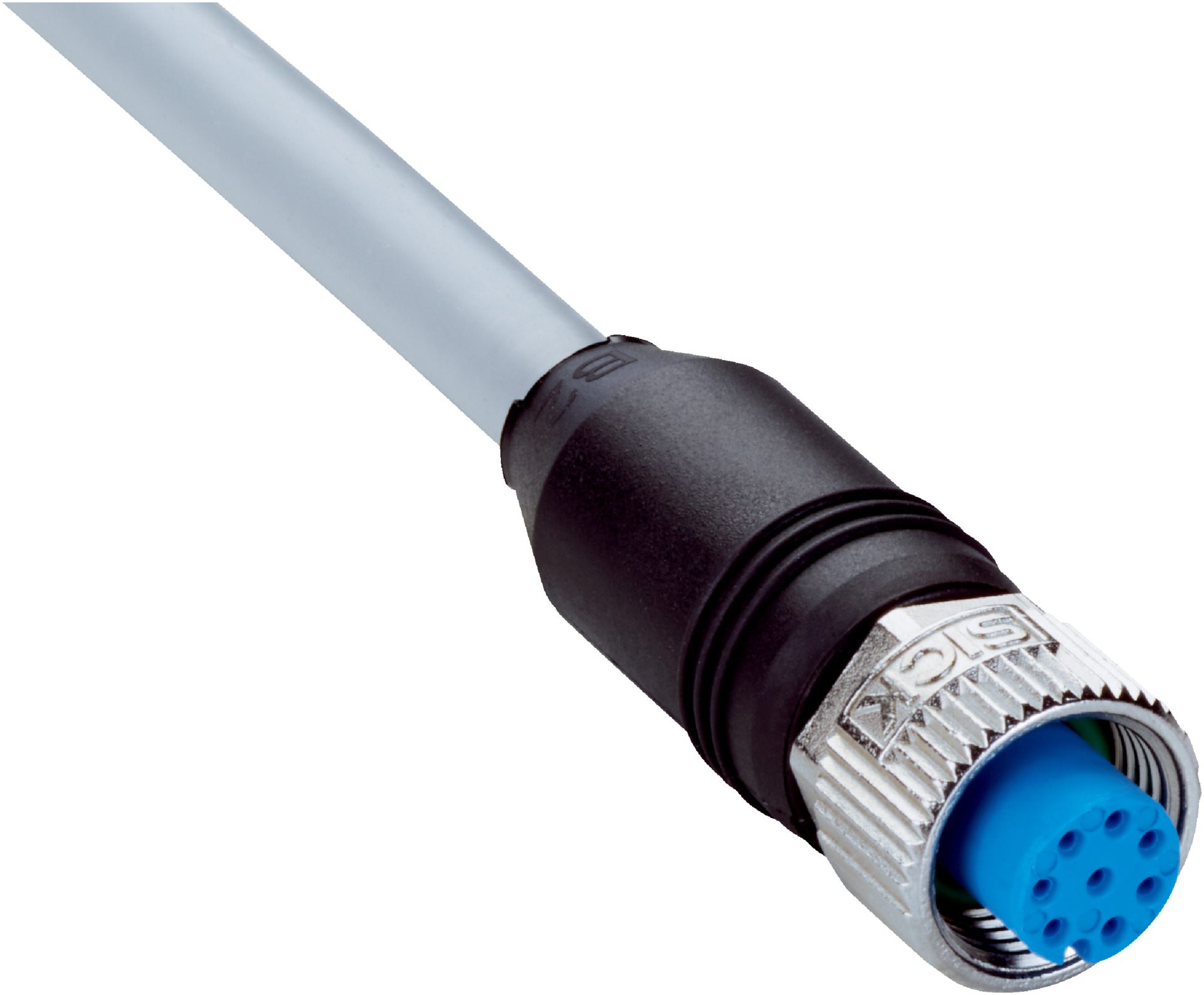

M12 Sensor Cable | 8-Pin Female Connector | 15m Shielded | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable with an 8-pin female connector is designed for reliable industrial sensor and actuator connections. With a robust 15m length and IP65/IP66/IP67 enclosure rating, it’s perfect for use in chemical zones and harsh environments. Built with durable TPU and flame retardant materials, this cable ensures safety and longevity in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 15 m
- Cable type: 8-wire, PVC jacket, gray color
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Reference voltage: 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 15 m, 8-wire, PVC jacket
- Shielded cable with 0.25 mm² conductor cross section
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 2 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
- Industrial sensor and actuator connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant properties enhance safety and reduce replacement frequency, minimizing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-150VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
