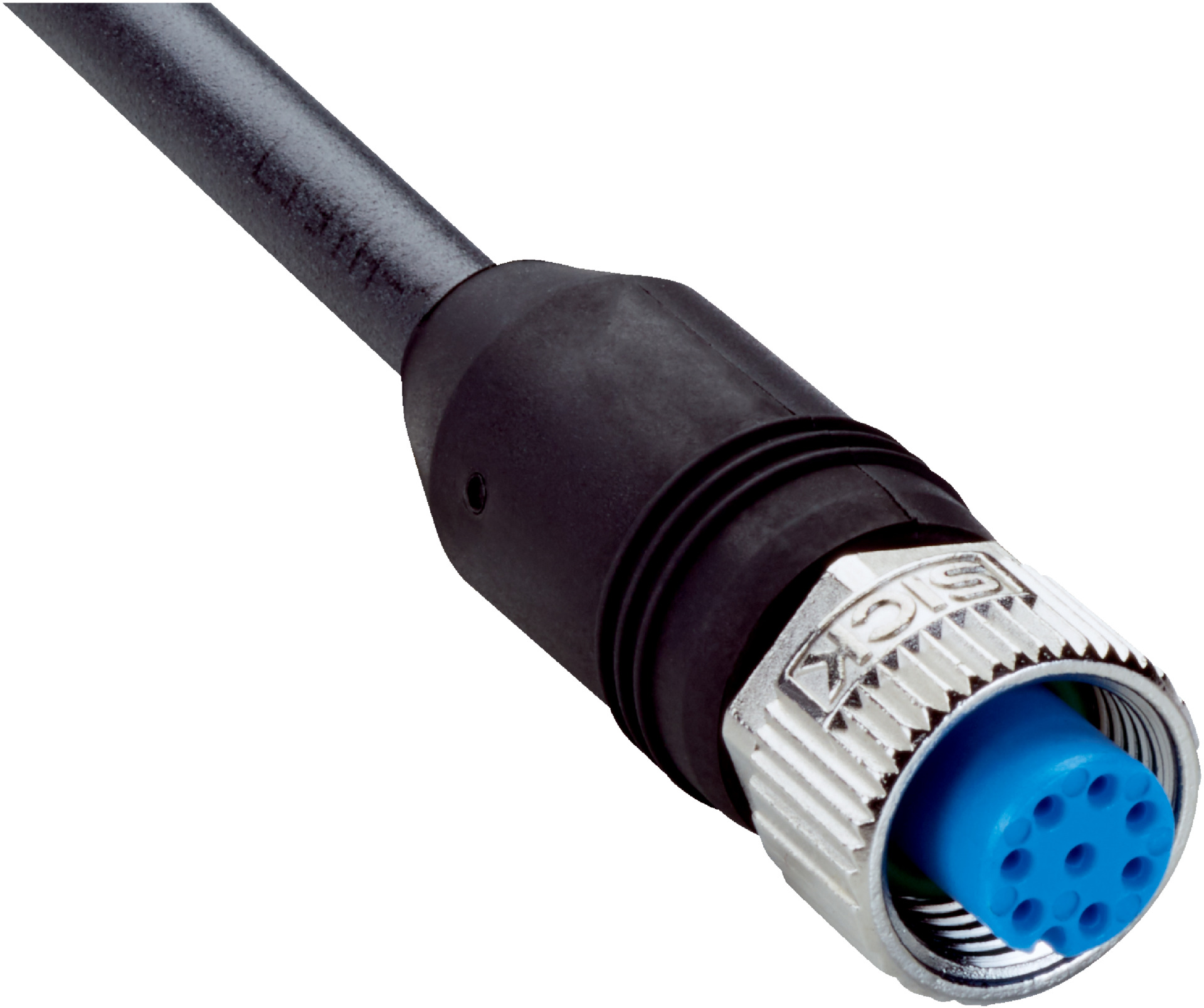

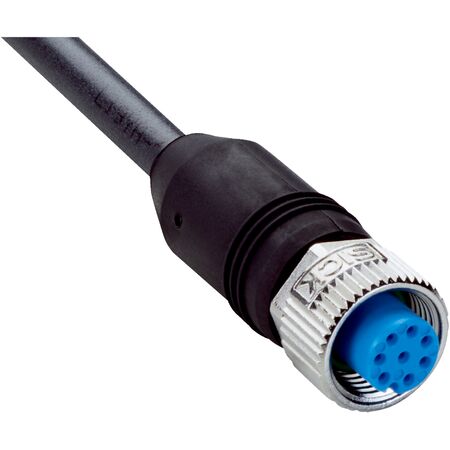

M12 Sensor Cable | 8-Pin Female Connector | 1m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable YF2A28-010UA6XLEAX features an 8-pin female connector and a 1m halogen-free PUR jacket, making it ideal for industrial automation and robotics. With a robust IP65/IP66K/IP67 rating and high flexibility for drag chain operation, this cable ensures reliable performance in challenging environments, perfect for sensor and actuator connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- Cable: 1 m, 8-wire, PUR, halogen-free, black jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-010UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
