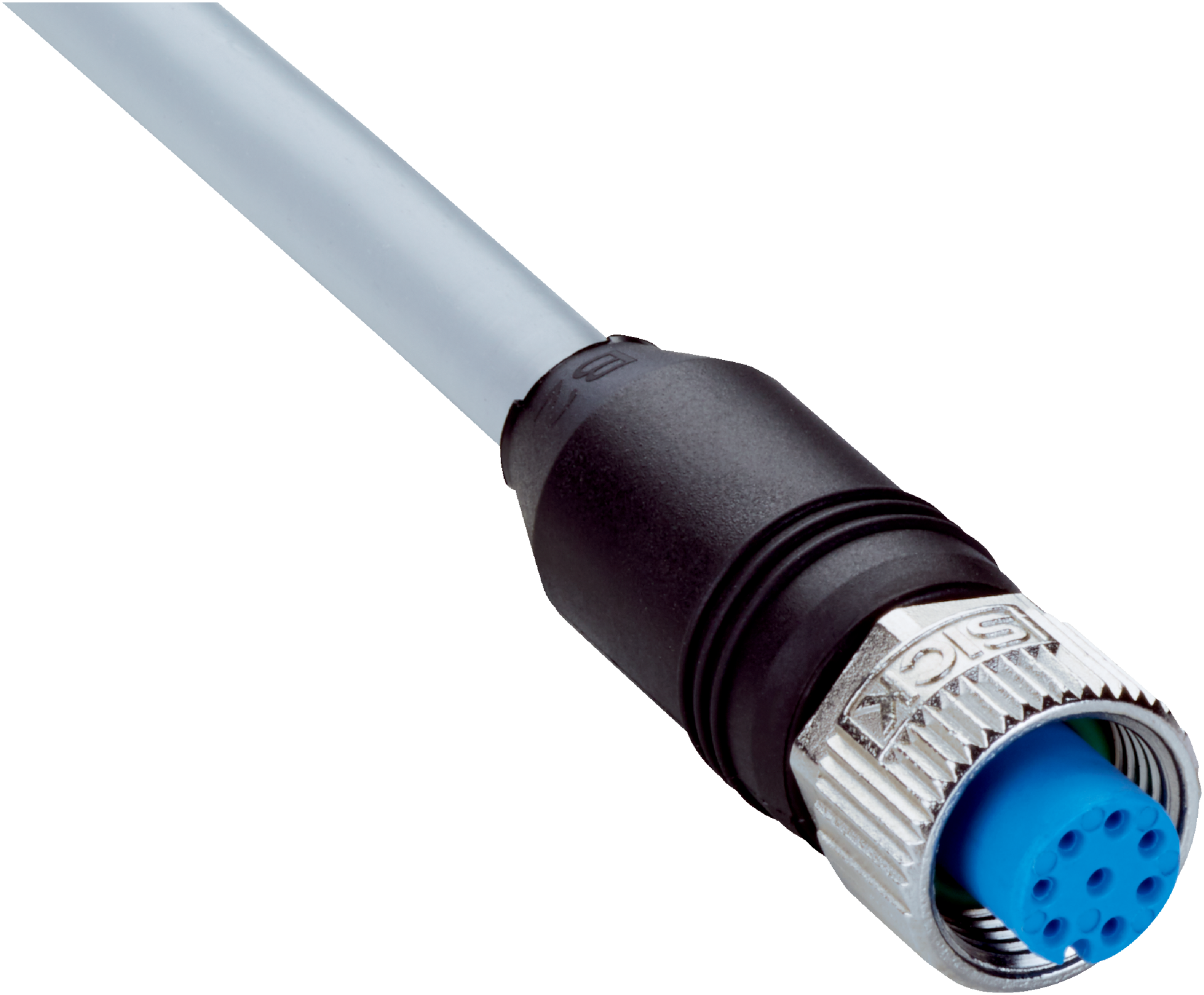

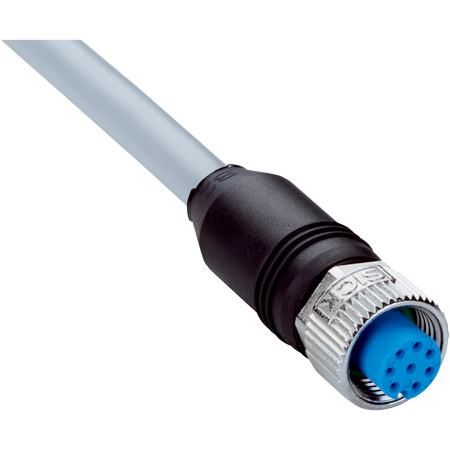

M12 Sensor Cable | 8-Pin Female Connector | 30m Shielded PVC | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features an 8-pin female connector and a durable 30m PVC jacket, making it ideal for sensor and actuator applications in industrial automation. With an IP65/IP66/IP67 enclosure rating and flame retardant properties, this cable ensures reliable performance in challenging environments, suitable for use in uncontaminated zones and areas with chemicals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 8-pin, Shielded Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 30 m, 8-wire, PVC
- Jacket material: PVC
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 30000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 30 m, 8-wire, PVC jacket in gray
- Shielded cable with 0.25 mm² conductor cross section
- Bending radius stationary position > 10 x cable diameter
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 2 A
- Enclosure rating IP65 / IP66K / IP67
- Operating temperature range -30 °C to +85 °C depending on part
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-300VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
