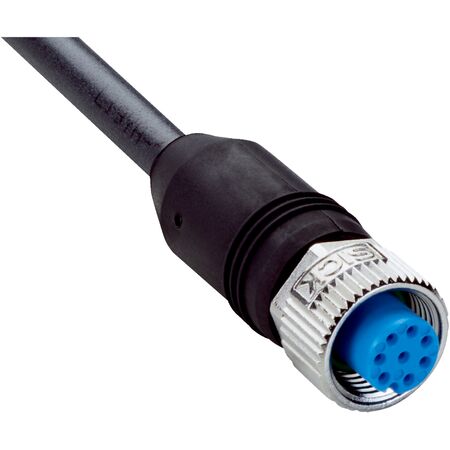

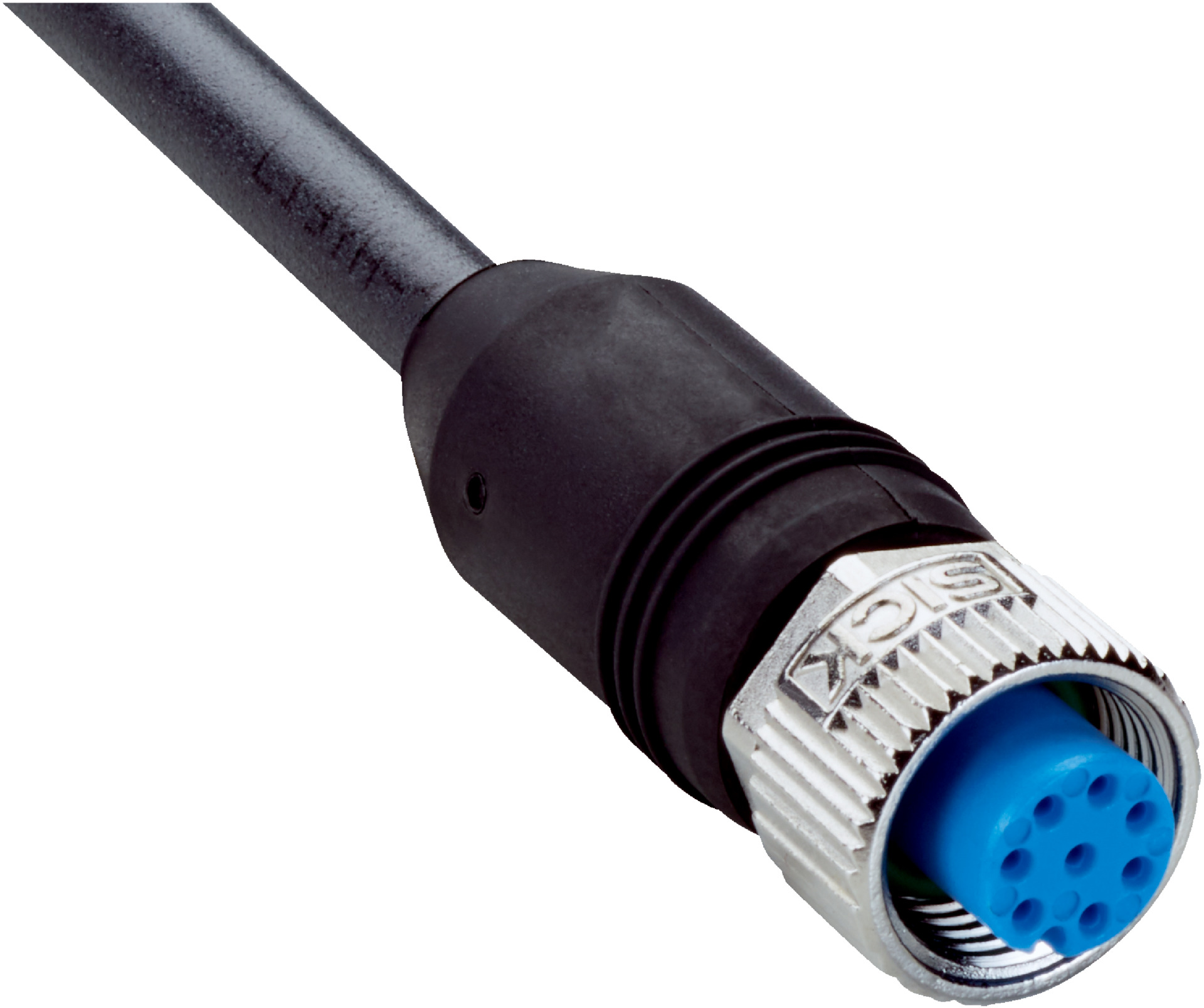

M12 Sensor Cable | 8-Pin Female Connector | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable YF2A18-050UA5XLEAX features an 8-pin female connector and a durable 5m PUR halogen-free cable, making it ideal for industrial automation and robotics. With a robust IP65/IP66K/IP67 rating and a wide operating temperature range from -40 °C to +85 °C, this cable is designed for reliable performance in challenging environments, ensuring long-lasting connections in uncontaminated zones and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 5 m, 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Cable length 5 m, 8-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion cycles up to 2,000,000 and bending cycles up to 10,000,000
- Flame retardant cable material according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF2A18-050UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
