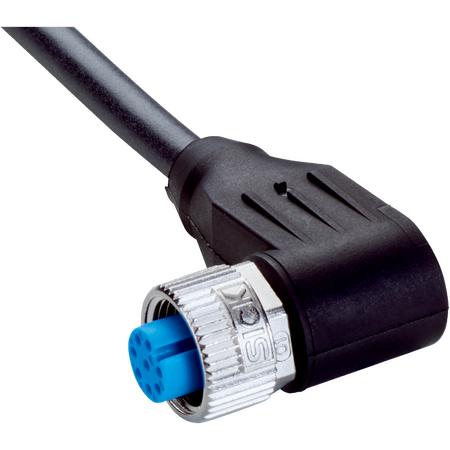

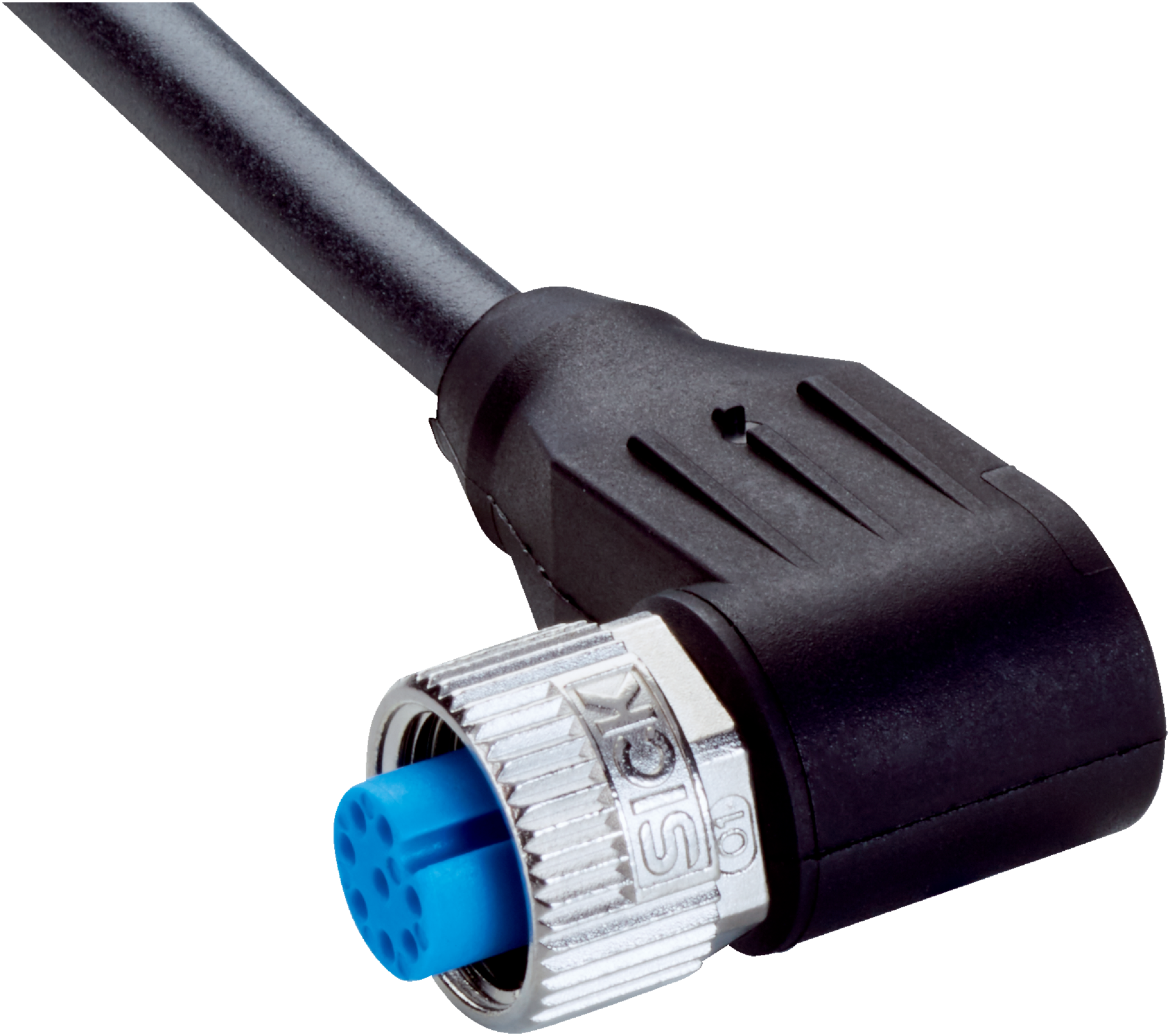

M12 Sensor Cable | 8-Pin Female Connector | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Sensor Cable features an 8-pin female connector and a 5m PUR halogen-free cable, making it ideal for industrial automation and robotics applications. With a robust IP65/IP66K/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C, this cable ensures reliable performance in challenging environments. Designed for flexible use and drag chain operation, it offers high durability with torsion cycles up to 2,000,000.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 8-pin, SICK Sensor Cable, PUR Halogen-Free Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Flying leads with screw connection
- Connector material: TPU, black color
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 2 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 8-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Cable: 5 m, 8-wire, PUR, halogen-free, black
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Torsion cycles up to 2,000,000 and bending cycles up to 10,000,000
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A18-050UA5XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring robust and flexible cabling.
