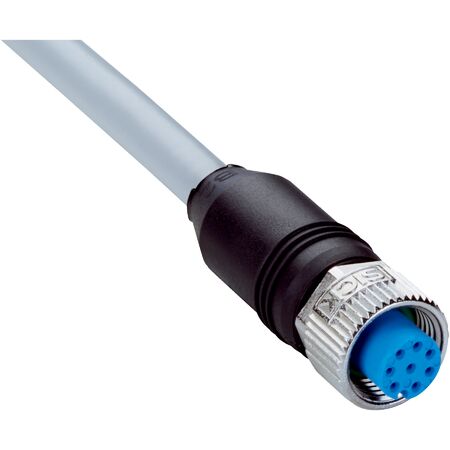

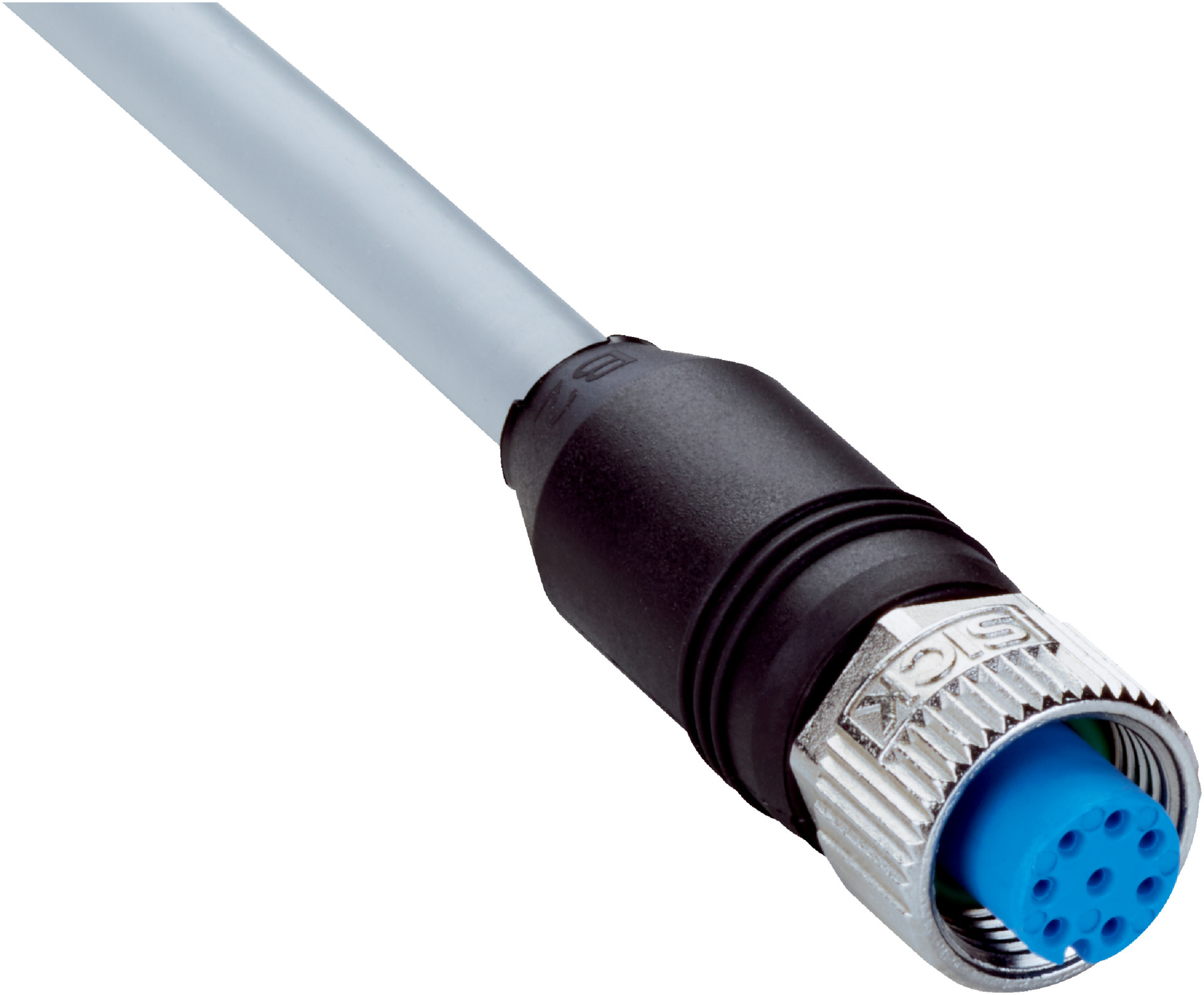

M12 Sensor Cable | 8-Pin Female Connector | IP65/IP66K/IP67 Rated | 2m Length | by SICK
The M12 Sensor Cable features an 8-pin female connector and flying leads, making it perfect for industrial automation and sensor connection applications. With a robust IP65/IP66K/IP67 enclosure rating and a flexible operating temperature range from -5 °C to +80 °C, this cable is designed for durability in challenging environments. Its flame-retardant materials ensure safety and longevity, making it an ideal choice for zones with chemicals and uncontaminated areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m
- Cable type: 8-wire, PVC jacket
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m, 8-wire PVC cable with gray jacket
- Shielded cable with 0.25 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant properties enhance product lifespan, reducing waste.
- Shielded cable reduces electromagnetic interference, improving energy efficiency in signal transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A28-020VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
