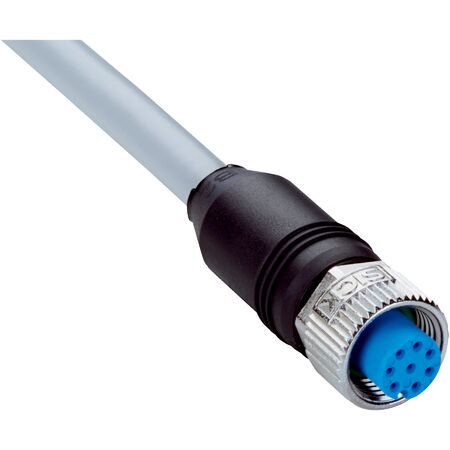

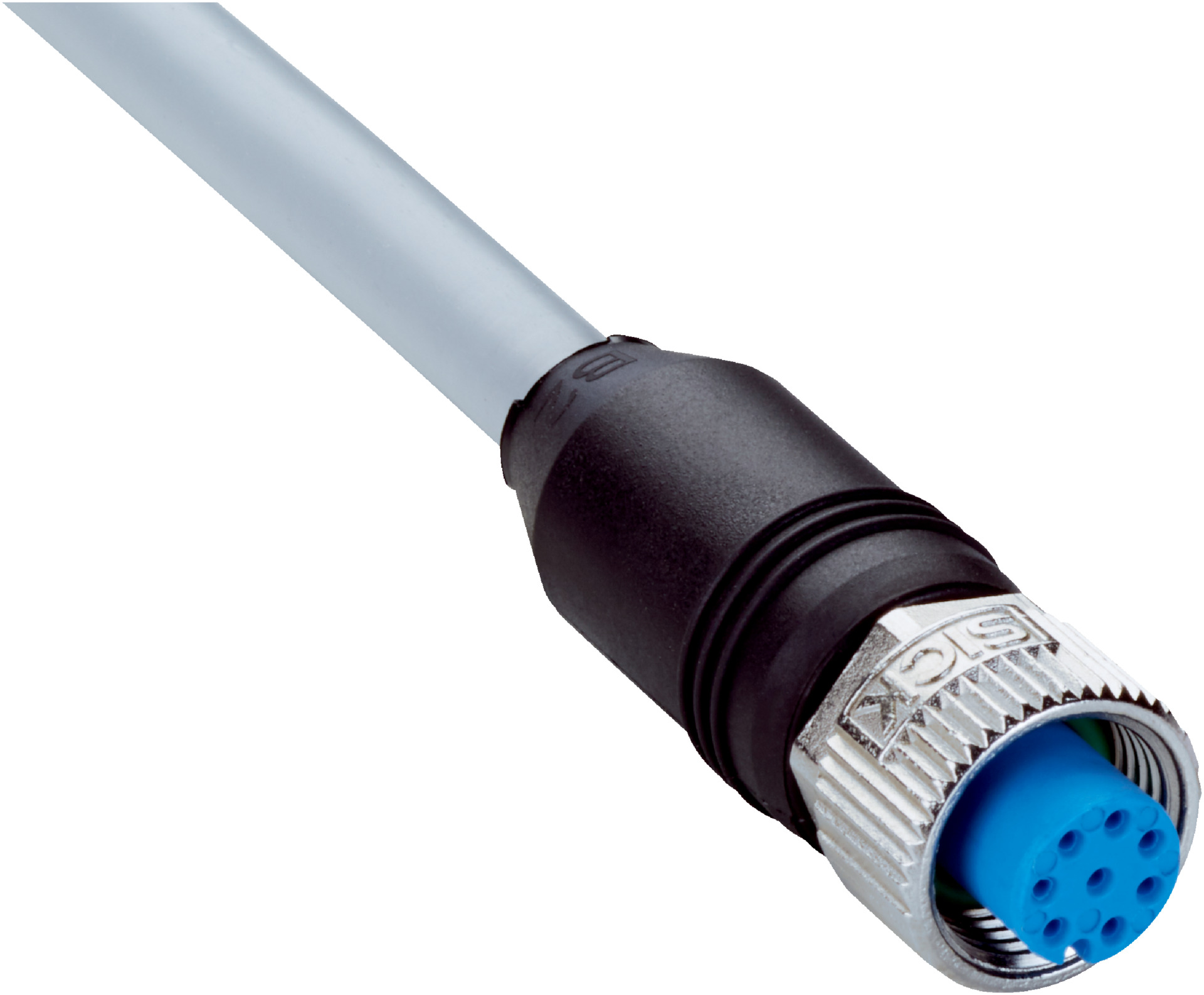

M12 Sensor Cable | 8-Pin Female Connector | Shielded | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features an 8-pin female connector and flying leads, making it ideal for industrial automation and sensor connection applications. With a robust IP65/IP66/IP67 enclosure rating and flame retardant materials, this cable ensures reliable performance in challenging environments, suitable for zones with chemicals and uncontaminated areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m
- Cable type: 8-wire, PVC jacket
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 5 m, 8-wire PVC cable with gray jacket
- Shielded cable with 0.25 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A28-050VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
