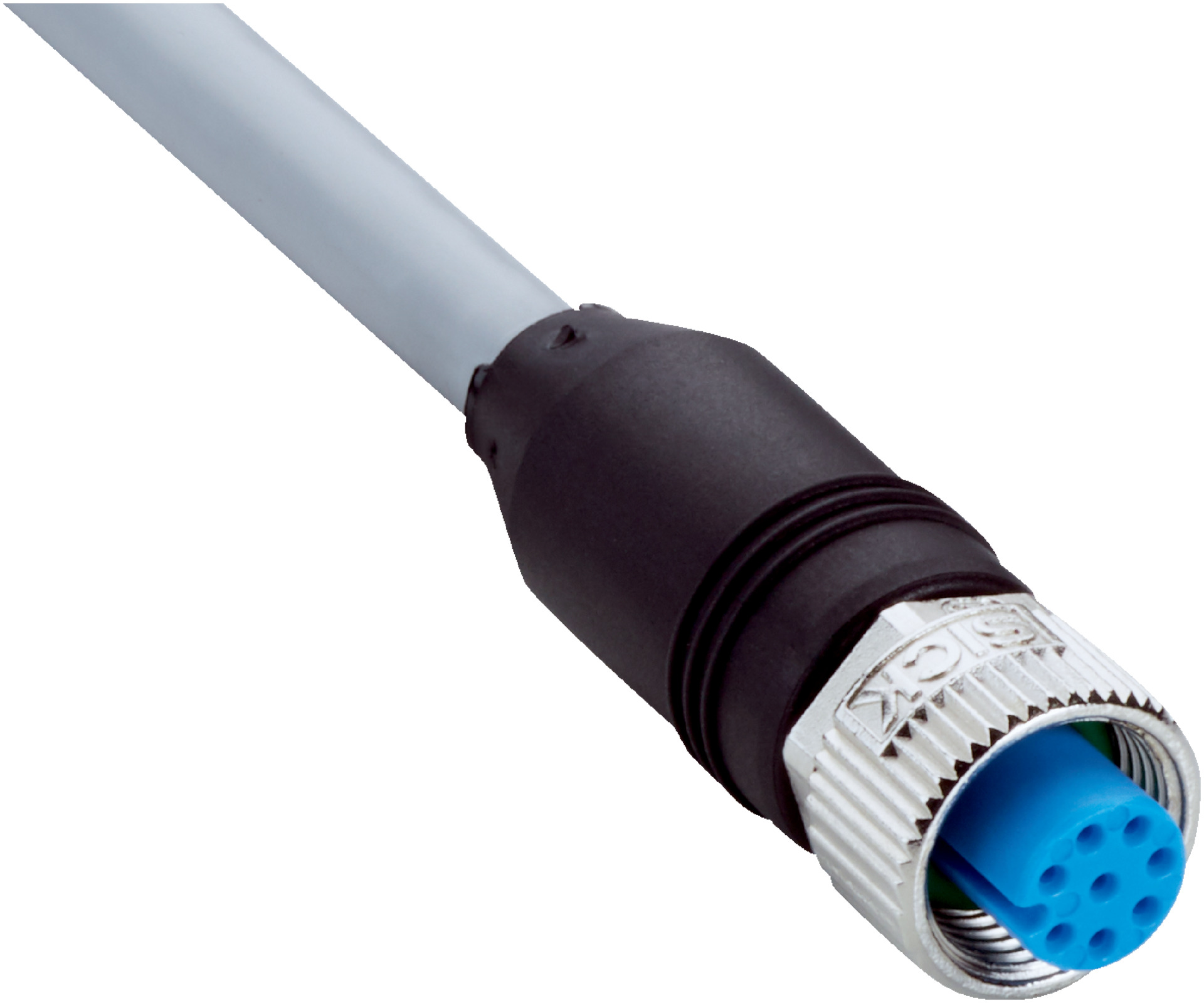

M12 Sensor Cable | 8-Pin Female Connector | Shielded | IP65/IP66K/IP67 | by SICK
The M12 Sensor Cable is designed for robust industrial automation, featuring an 8-pin female connector and a shielded 15 m long PVC cable. Ideal for sensor and actuator connections in chemical zones, this cable ensures high protection ratings and flame retardant properties, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 8-wire, PVC jacket
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Reference voltage: 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5 °C to +80 °C, Stationary -30 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 15 m long, 8-wire PVC cable with gray jacket
- Shielded cable with 0.25 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Special color code for easy identification
- Operating temperature range from -30 °C to +85 °C depending on use
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensor connections
- Chemical zones requiring specialized cabling
- Environments needing robust, shielded sensor/actuator cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

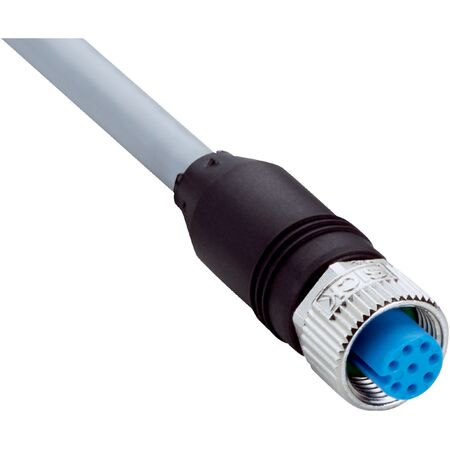

The SICK YF2A28-150S01XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and chemical zone applications.
