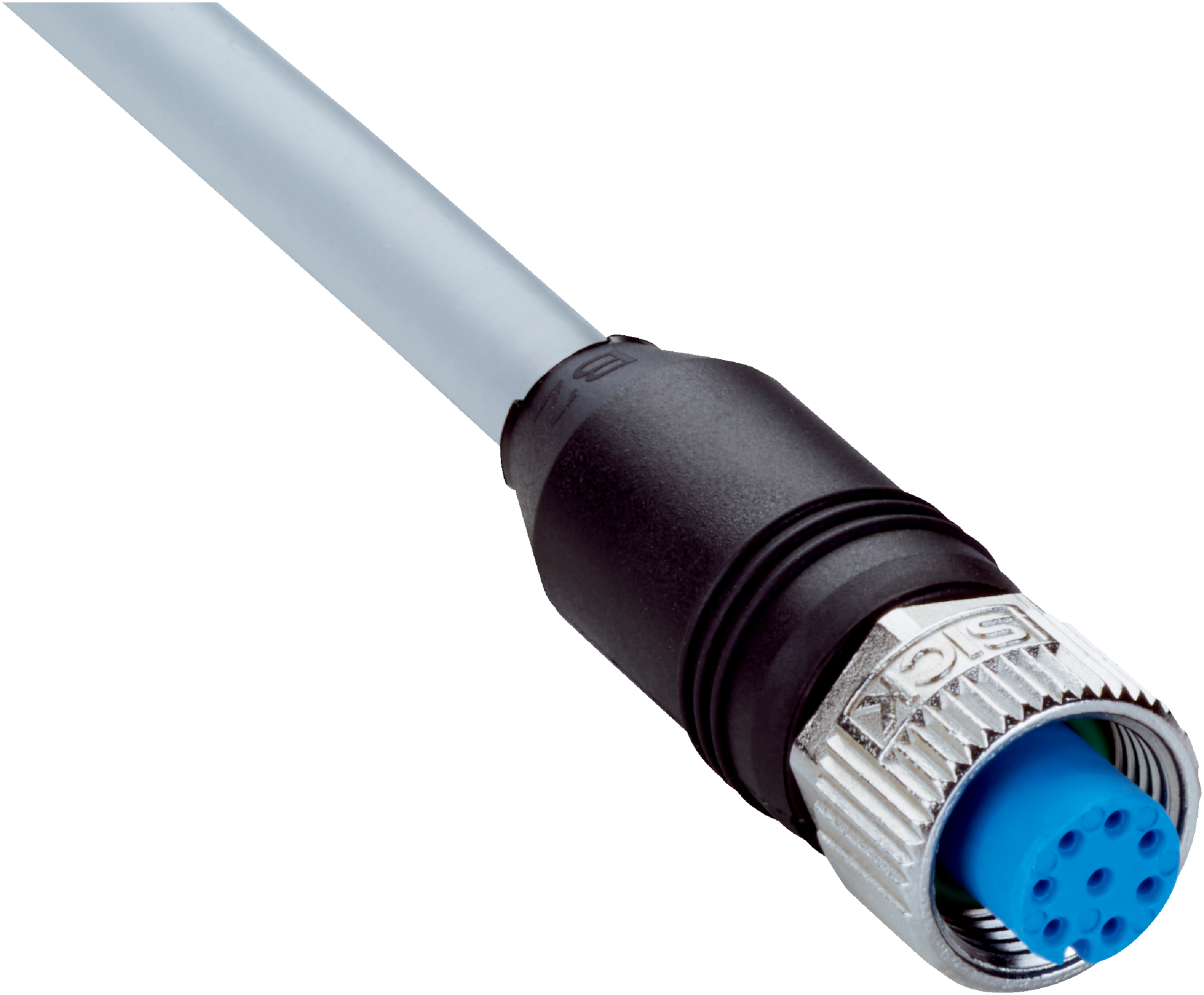

M12 Sensor Cable | 8-Pin Female Connector | Shielded PVC | IP65/IP66K/IP67 | by SICK
The M12 Sensor Cable features an 8-pin female connector and a shielded 8-wire PVC design, making it ideal for sensor and actuator applications in industrial settings. With a high protection rating of IP65/IP66K/IP67 and an operating temperature range from -30°C to +85°C, this cable ensures reliable performance in various environments. Its durable construction and flame retardant materials enhance longevity, making it a smart choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, 8-pin M12 Connector Cable, Shielded Actuator Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 8-wire, PVC jacket
- Jacket color: Gray
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 7mm x 10000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Shielded 8-wire PVC cable with 0.25 mm² conductor cross section
- Screw connection locking plug with zinc die-cast, nickel-plated locking nut
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range from -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and flame retardant materials increase product lifespan, reducing waste
- Certified compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

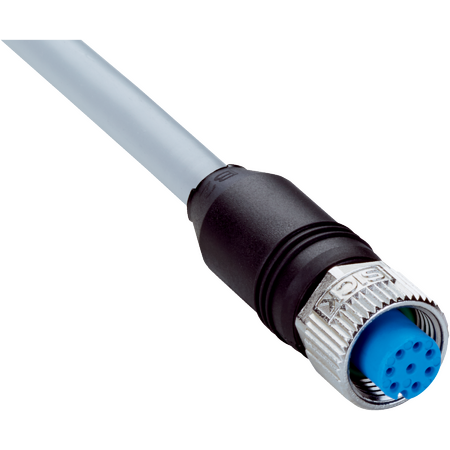

The SICK YF2A28-100VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable cabling.
